26
ConveyLinx-IO User's Guide
Master. Furthermore, when the Auto Configuration Procedure occurs; the Auto Configuration Master will also
have its Node value changed to 20. All downstream ConveyLinx modules will then have their Node values
automatically set beginning with 21.
Figure 16 shows 2 ConveyLinx-IO and 2 ConveyLinx-Ai2 installed "out of the box" onto, for example, a conveyor.
Once the Auto Configuration Master is identified and the Auto-Configuration Procedure is performed; all 4
ConveyLinx modules will have their I.P. address configured as shown in Figure 17.
The Auto-Configuration Procedure will assign Nodes up to and including Node 240. Therefore each Subnet is
limited to 220 ConveyLinx nodes.
Publication ERSC-1008 Rev 1.1 – October 2017

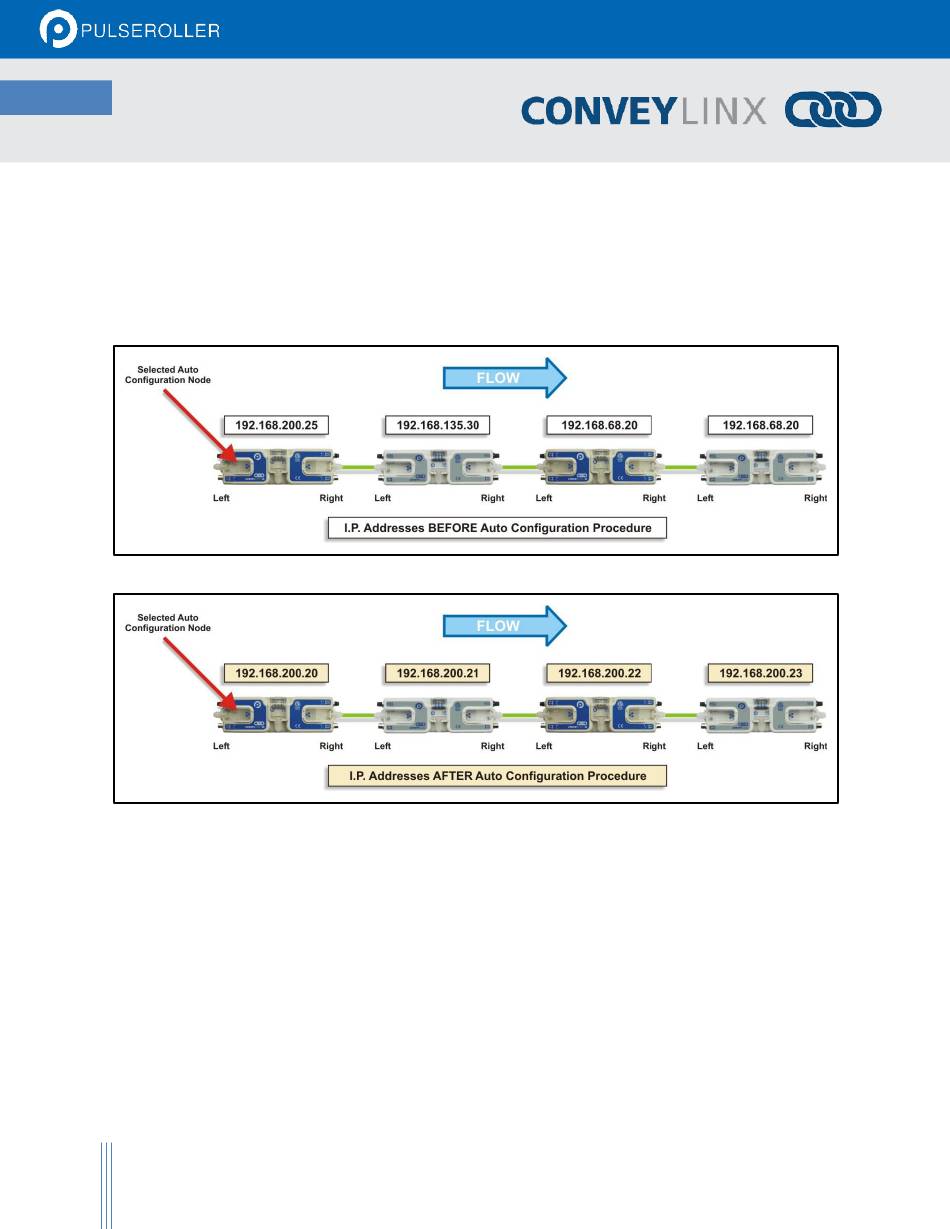

FIGURE 16 - IP ADDRESSES BEFORE AUTO-CONFIGURATION
FIGURE 17 - IP ADDRESSES AFTER AUTO-CONFIGURATION
