The selected node for Auto-Configuration does not have to be the first module that is connected directly to the PC.
The module at the other end of the detected line can also be selected as the Auto-Configuration master as shown
in Figure 22.
Also note that the detail information in the topology view for each module will be shown in RED when the modules
are in the same Subnet but with non-consecutive IP addresses or the modules are with duplicate IP addresses. If
some or all of the modules are shown in RED, Auto-Configuration will still function properly. Figure 23 shows an
example where all modules have the same duplicated IP Address. In this example, you can still perform Auto-
Configuration and the addresses will be updated automatically.
Publication ERSC-1008 Rev 1.1 – October 2017

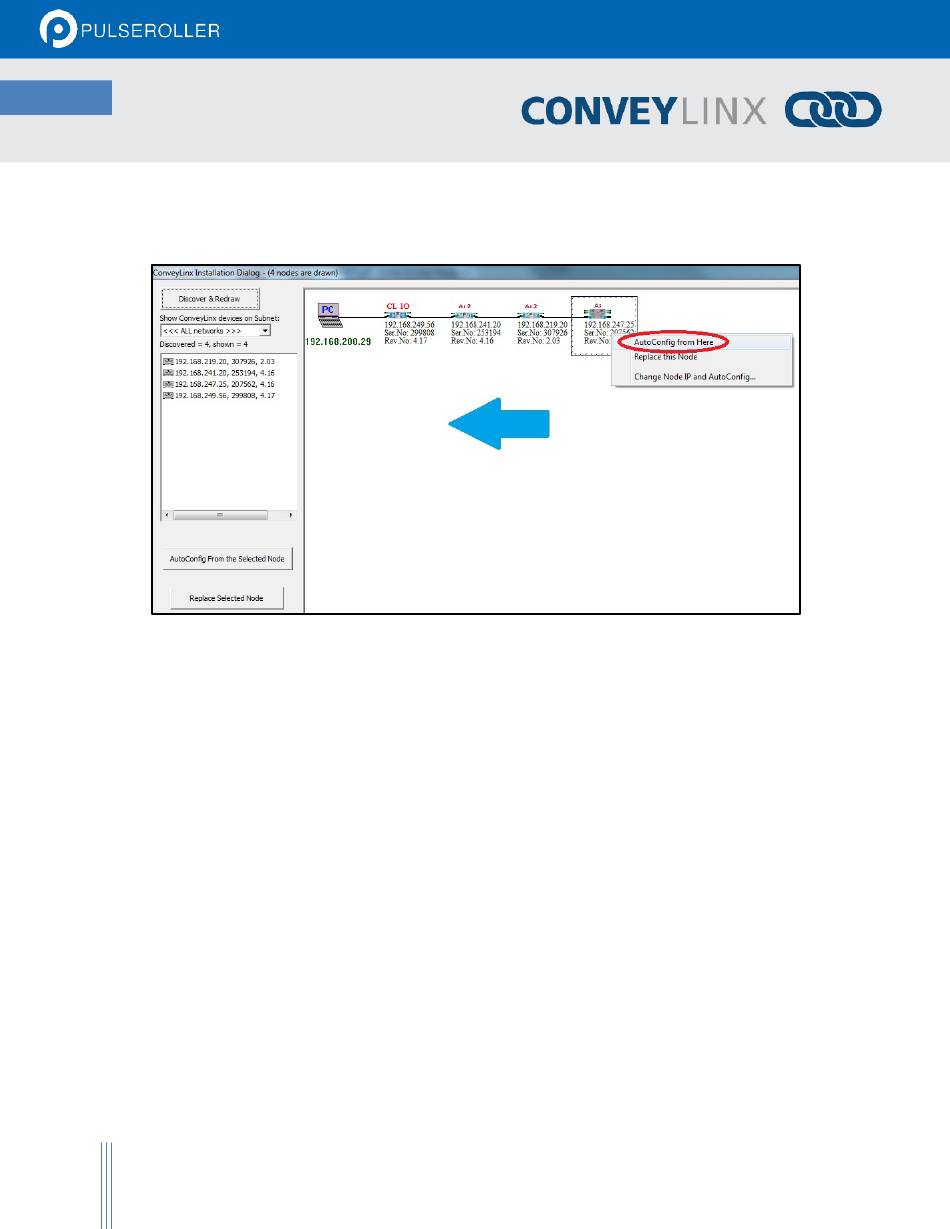

FIGURE 22 - AUTO-CONFIGURATION FROM THE FARTHEST NODE FROM THE PC
