Method 2 - Change Pc To Match Auto-Config Master - Pulseroller ConveyLinx-IO User Manual

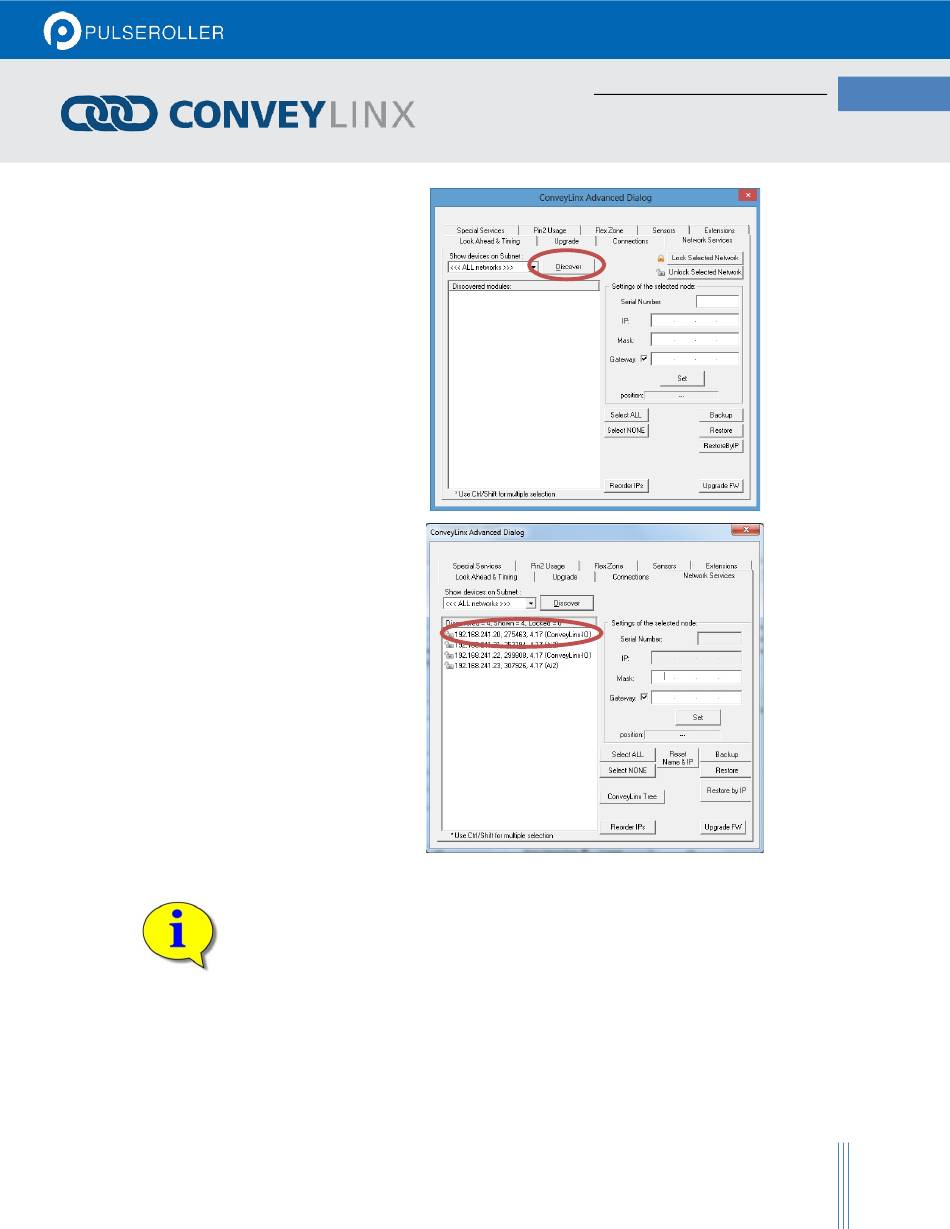

After clicking the Network Services
tab, you will see the screen you
will use to both "discover" the
ConveyLinx modules that can be
found as well as select a specific
ConveyLinx module in which to
modify its I.P. address settings.
On this screen, click the "Discover"
button
After clicking the "Discover"
button, EasyRoll will query the
network and return a list of all
ConveyLinx modules it finds and
shows each module's I.P. address,
serial number and current
Firmware. We already know that
the Auto-Configuration Master is
the ConveyLinx module with the
last I.P. address octet of ".20".
In this example, 2 ConveyLinx-Ai2s
and 2 ConveyLinx-IO modules were
found and the Auto-Configuration
Master is at 192.168.241.20, its
serial number is 275463 and has
Firmware 4.17
Please refer to section ConveyLinx Advanced Dialog on page 51 for further descriptions for
the remaining ConveyLinx Advanced Dialog screen selection tabs.
M 2 - C PC
ETHOD HANGE TO
At this point, because you now know the Auto-Configuration Master's I.P. address you can simply change your PC's
IP address configuration so that is can have access to the Auto-Configuration Master's Subnet. In the example
above, the Auto-Configuration Master's I.P. address is 192.168.241.20 therefore the ConveyLinx Subnet is
192.168.241.
M A -C M
ATCH UTO ONFIG ASTER
