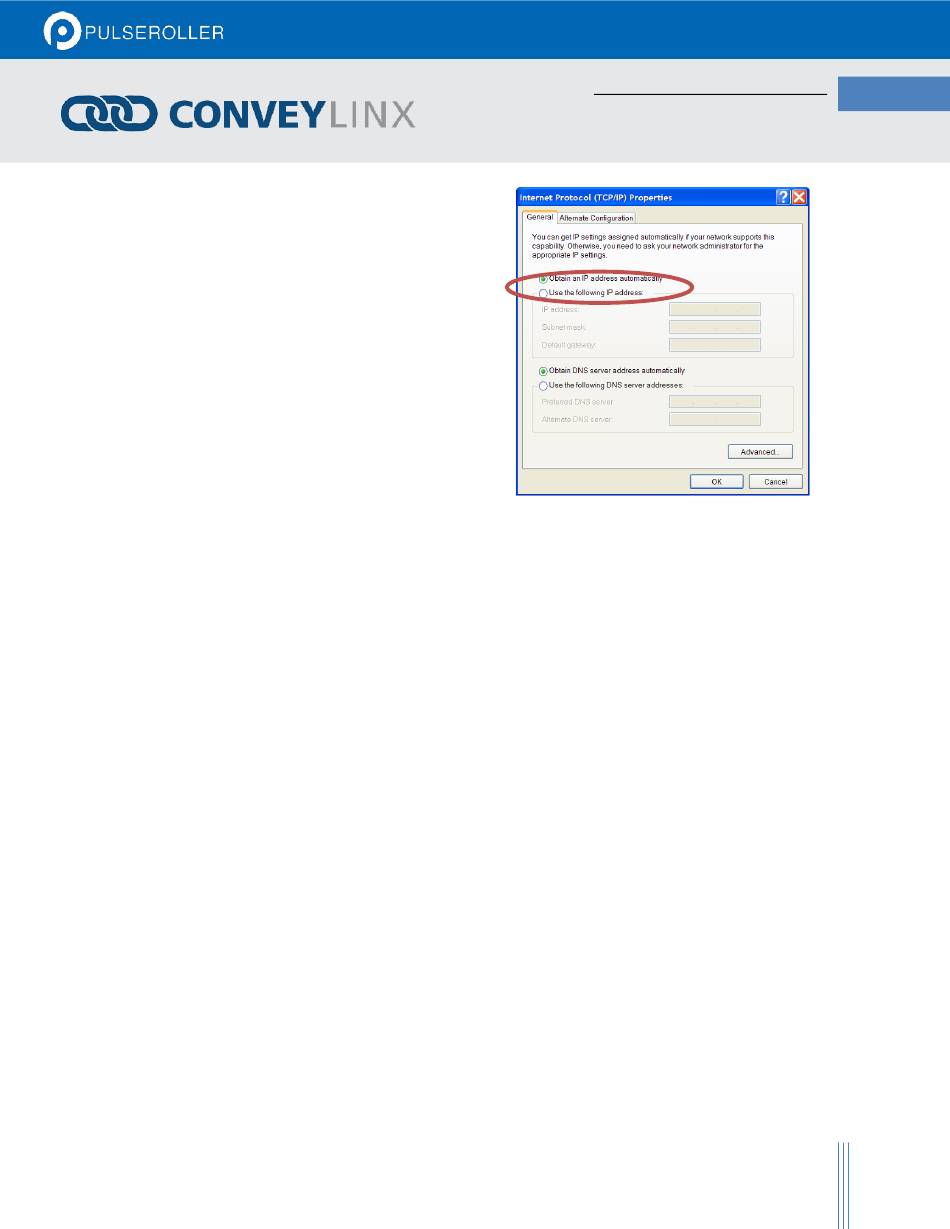

If your PC is already configured to obtain an IP address
automatically; then by simply connecting you PC as
shown in Figure 18 - Initial PC Connection to ConveyLinx
Subnet is all you have to do to have the PC's I.P. address
configured so you can use EasyRoll
M I.P. A C
ANUAL DDRESS ONFIGURATION
Manual configuration of your PC's I.P. address may be your preference for larger system configurations with
multiple Subnets and/or installations where you want to keep a dedicated PC connected all the time.
For installations where there are multiple ConveyLinx Subnets that share the same physical Ethernet cabling (either
directly or through Ethernet switches); it is recommended that the Subnets be pre-determined and that each Auto-
Configuration Master have its Subnet set in advance of performing each of their respective Auto Configuration
Procedures. By pre-determining all Subnets required; your PC can have its I.P. address and subnet mask set to
appropriate values so that you can access all of your ConveyLinx Subnets from a single PC with EasyRoll.
Regardless of which manual procedure you choose, with your PC and EasyRoll you can easily accomplish either.
U E R L
SING ASY OLL TO OCATE
For either manual method of I.P. address configuration, you must access the I.P. address information of the Auto-
Configuration Master ConveyLinx-Ai2 on your network by using EasyRoll.
S E R A
TARTING ASY OLL PPLICATION
If you followed the default installation setting when you installed EasyRoll; the program should be selected from
"Start – All Programs – Industrial Software – EasyRoll". If you selected a different location when you installed; go
to that location and run "EasyRoll.exe".
M
ETHODS
A -C M
UTO ONFIGURATION ASTER
EasyRoll Software Configuration Tool
