The numbered items in Figure 28 - EasyRoll Main Screen show the basic functional areas and detailed descriptions
will follow for each.
Item
Description
Network IP – This is where you enter the Subnet of the particular ConveyLinx network you wish to
1
connect
Node No. – This is where you enter a range of Nodes in which to connect. Entering values here will
2
cause the "Refresh" button to enable. Clicking this button will cause the rest of the items (3, 4, and
5) to be populated.
ConveyLinx-IO Connection Status –. This indicates whether a remote PLC is currently connected to
3
the module.
4
ConveyLinx-IO Transparency – See section ConveyLinx-IO Transparency Mode below.
5
Indicates the current on/off state of each digital input and output
Please note that some of the detailed information shown in this figure may be different for your particular system
and that most of these fields will be blank until you actually initiate communications.
C
C
ONNECTING TO
ONVEY
Once the Network IP boxes (1) have been entered with the correct Subnet, you then type in a range of Nodes (2)
you wish to connect; the "Refresh" button will become enabled. Click the "Refresh" button and data for the rest of
the main screen should fill in.
N
N
ODE
AVIGATION

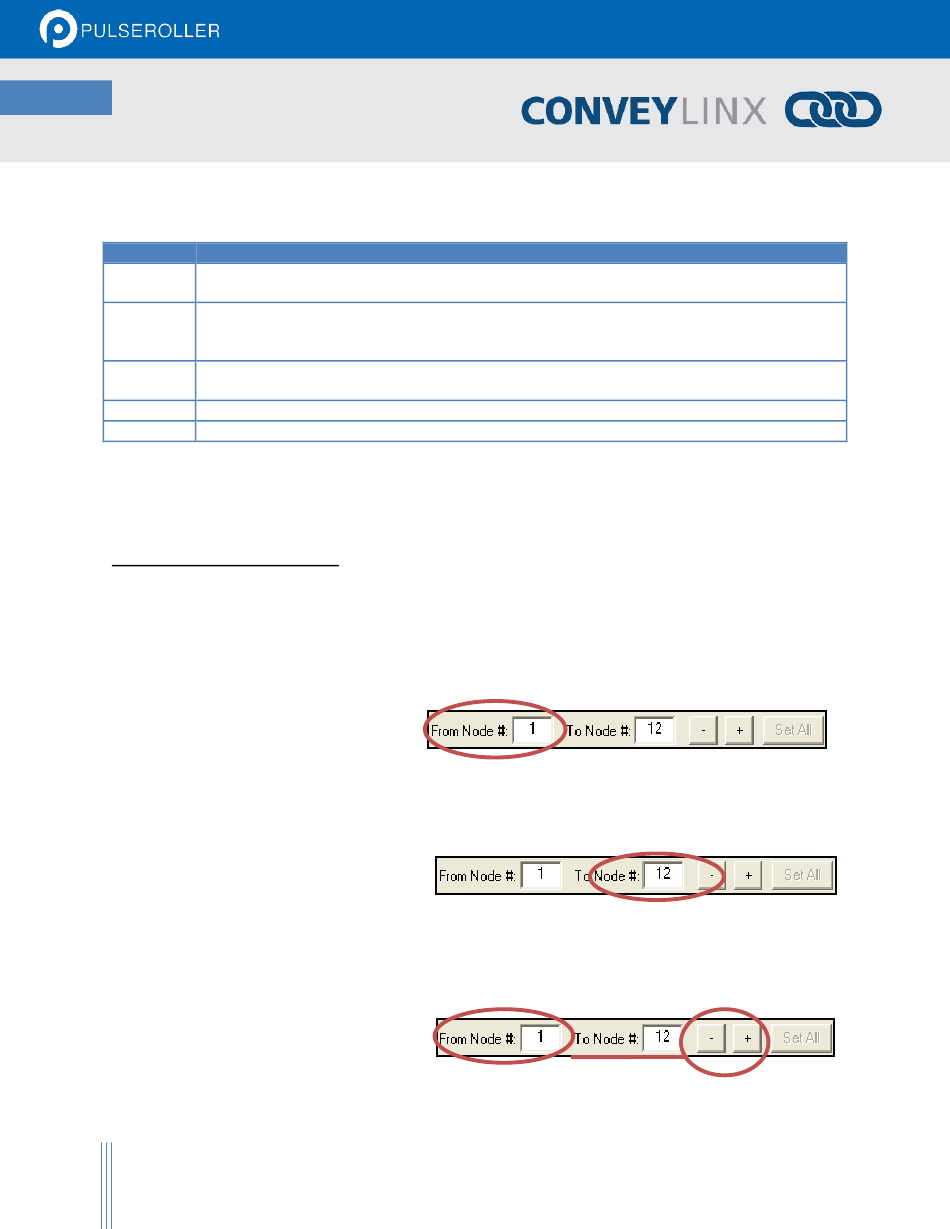

Whatever Node is entered in the first box will
be the particular ConveyLinx data shown in
the remainder of the main screen.
The Node value entered in the second box
does not have to be the actual "last" node of
the network. If you enter a Node value
higher that exists; an error message will
display after you click the "Refresh" button.
For the example shown; if there were only 10
Nodes installed and you entered 12, you
would receive 2 error messages in succession
after clicking the "Refresh" button.
Clicking the "+" and "-" buttons will
increment / decrement the Node value in the
first box and display the ConveyLinx data for
the new Node selected. Please note that if
you increment past the value of the last
physical Node installed, you will receive an
error message.
