M R
ODULE EPLACEMENT
You can replace a single ConveyLinx-IO module without using EasyRoll by utilizing the Replacement Button located
inside the Left Ethernet cable connection compartment. Simply install the replacement module and connect all
sensors, motors, network cables, and power connections. The procedure is illustrated below.

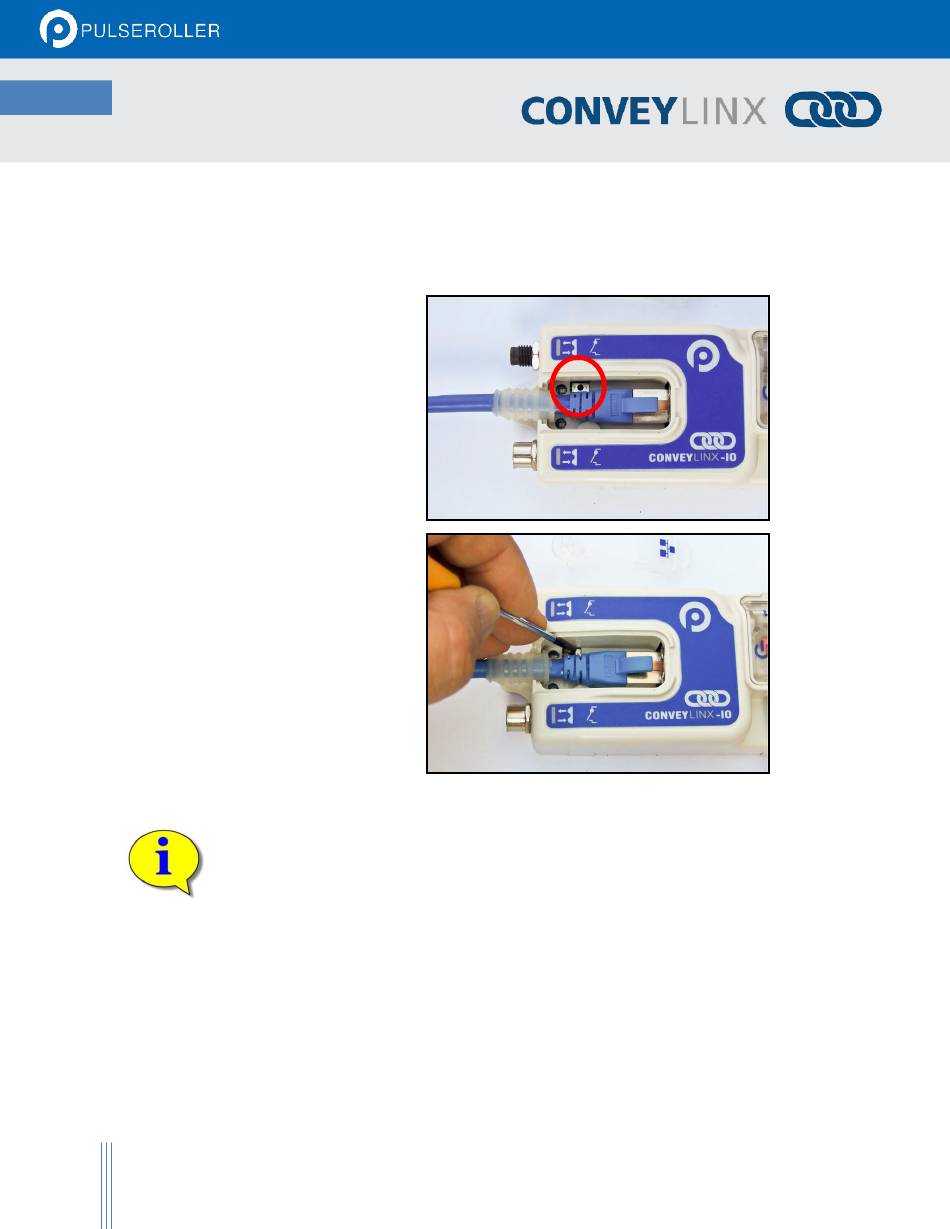

The Module Replacement Button is
located in the Left Ethernet cable
compartment. Remove the
compartment cover to gain access
to the button
With a pointed instrument (pencil
or small screwdriver) press and hold
the button for 2 seconds until the
Status LED flashes red. Then
release the button.
Please note that the Module Replacement Procedure (either with EasyRoll or Replacement
Button) can take a few minutes to complete. The replaced module will restart itself a
minimum of 4 times during the procedure. It will restart 5 times if firmware is being
upgraded or downgraded.
