ConveyLinx-IO User's Guide
E L
THERNET EFT AND
Both of these ports are standard RJ-45 jacks conforming to standard Ethernet connection pin-out. In order to
maintain IP54 rating; Ethernet cables need to be equipped with protective shrouds. Figure 5 shows Ethernet
cables installed using shrouds to protect the RJ-45 connectors on the Ethernet cables. Each module is shipped with
3 shrouds.

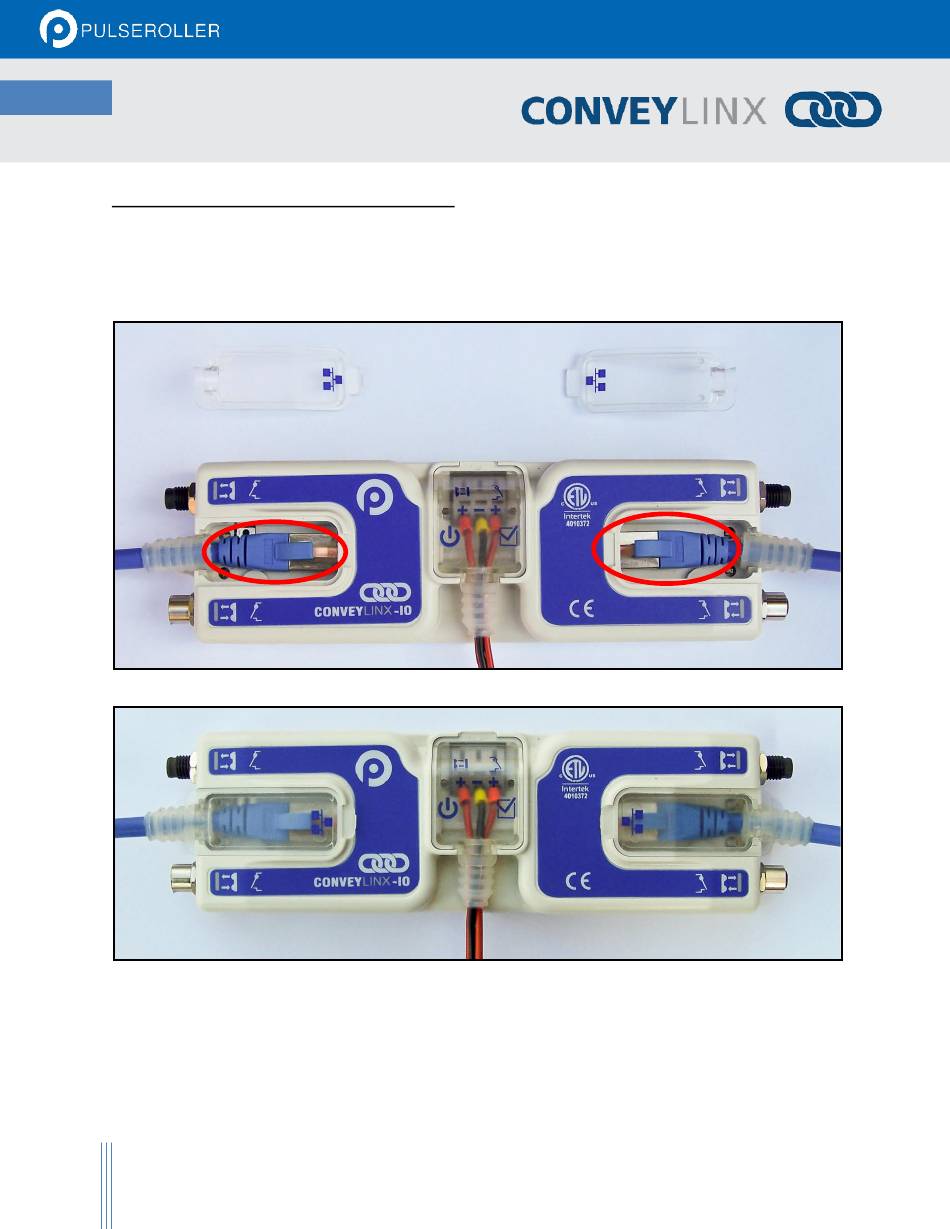

FIGURE 5 – CONVEYLINX-IO WITH LEFT & RIGHT ETHERNET CABLES (COVERS REMOVED)
Publication ERSC-1008 Rev 1.1 – October 2017
E R P
THERNET IGHT ORTS
FIGURE 6 - ETHERNET CABLES CONNECTED WITH COVERS ATTACHED
