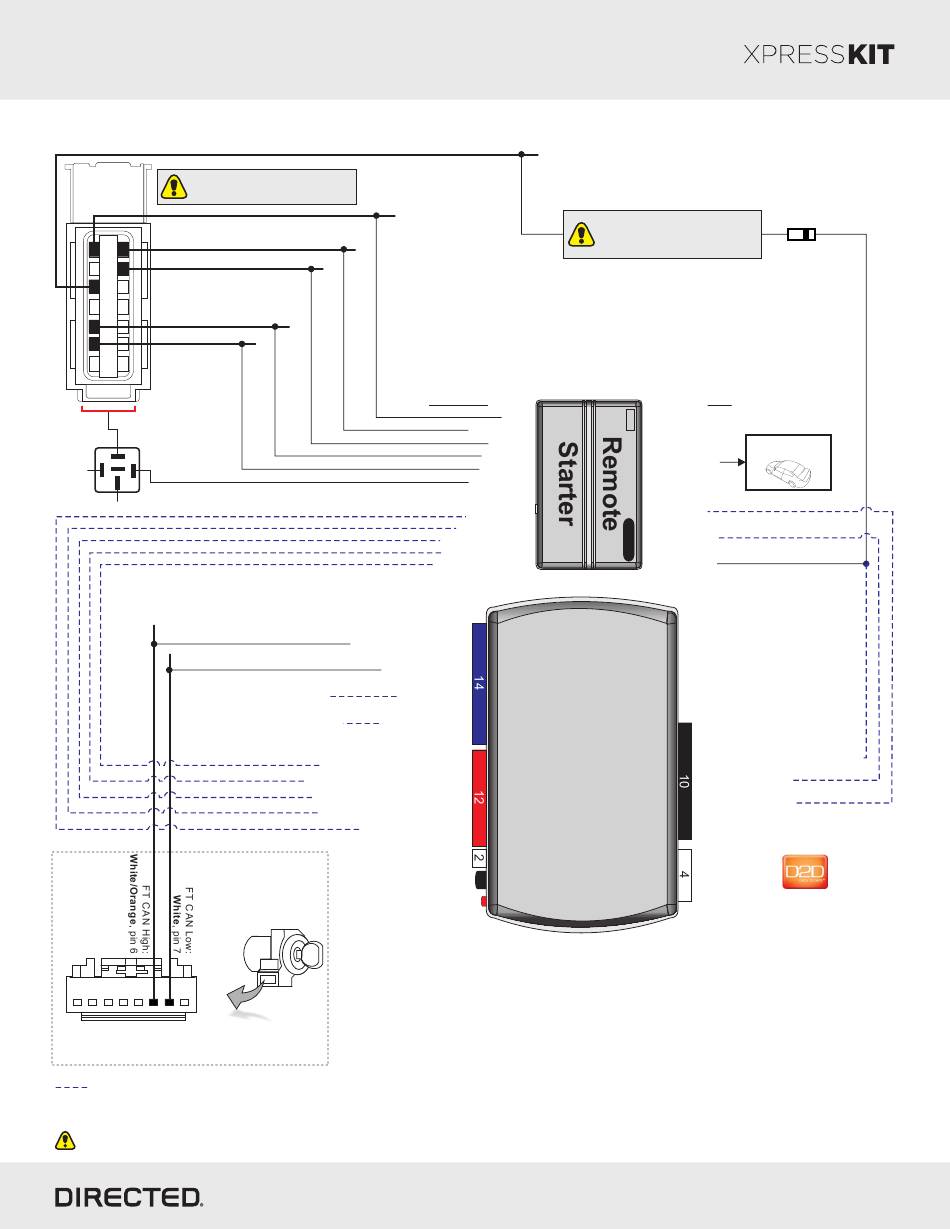

Type 5 - Directed XPRESSKIT DBALL Installation Manual

Platform: DBALL/DBALL2
Firmware: CHRYSLER
Installation Type 5
See page 18 for the ignition
switch wiring information
Ignition Switch
(black connector)
7 14
6 13
5 12
4 11
3 10
2 9
1 8
*Pin 1 or 8 depending on
the vehicle (see page 18).
86 87 85
(+) 12V
87a
30
(+) 12V or (-) Ground (see page 18)
1 8
Sentry Key Module
Near Ignition Switch
(connector side view)
Not required in D2D mode.
Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[1]
All adapters are displayed from the wire side (unless specified otherwise).
(-) Keysense: Violet/Tan, pin 5
(-) Ground
(+) Accessory 1
(-) Accessory 2
(+) Brake Input
(AC) Tach Input
[1]
(-) Trunk Status Input
(-) Door Status Input
(-) E-Brake Status Input
FT CAN High: Tan/Black: 3
FT CAN Low: Tan: 4
(+) 12V (+) 12V: Red: 13
(-) Ground (-) Ground: Black: 14
(-) E-Brake Output: Black/White: 1
(-) Door Status Output: Green/White: 3
(-) Trunk Status Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
[1]
(+) Brake Output: Gray: 6
Connect Keysense wire
only if vehicle is equipped
with OEM alarm.
(-) Ground (-) Hood Switch
(+) 12V
(+) Starter
(+) Ignition 1
(+) Parking Lights
(+) Ignition 2
(-) Lock Output
(-) Unlock Output
(-) GWR (Status)
RF
DBALL/
Prog. Button
DBALL2
LED
Rev.: 20150128
Page 17
Diode
(-) Hood Switch
See page 18 for
wiring information
10: Blue/White: (-) GWR (Status) Input
2: Blue: (-) Unlock Input
1: Green: (-) Lock Input
(+)12V
RX
(-) Ground
TX
P#: XKD2D65
