Type 3C (Without T-Harness) - Directed XPRESSKIT DBALL Installation Manual

Platform: DBALL/DBALL2
Firmware: CHRYSLER

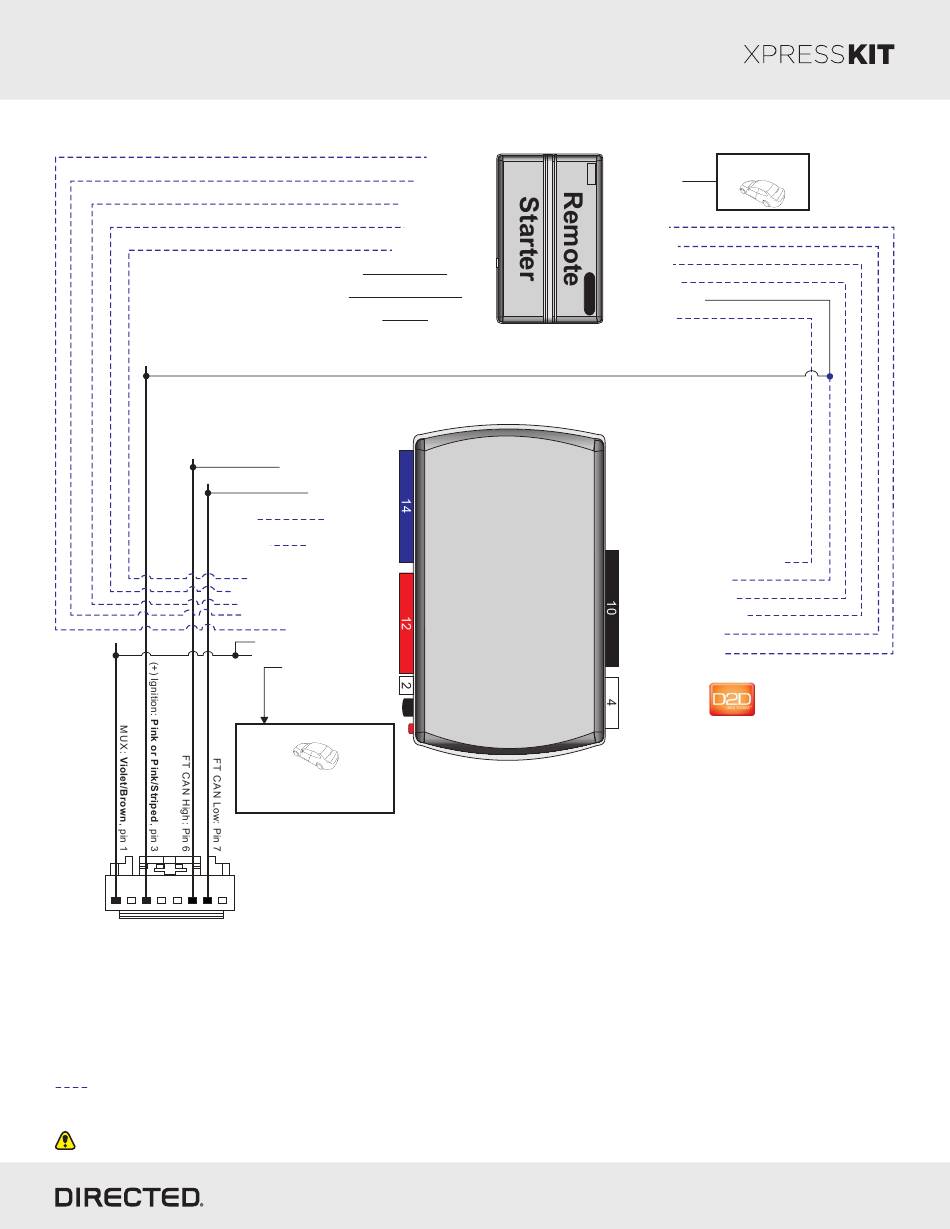

Installation Type 3c (without T-Harness)
(+) 12V
(-) Ground
(-) Door Status Output: Green/White: 3
1
Sentry Key Module Near Ignition Switch
(connector side view)
Not required in D2D mode.
Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[1]
All adapters are displayed from the wire side (unless specified otherwise).
(-) Trunk Status Input
(-) Door Status Input
(-) E-Brake Status Input
(-) Ground
(+) 12V
(-) Hood Switch
FT CAN High: Tan/Black: 3
FT CAN Low: Tan: 4
(+) 12V: Red: 13
(-) Ground: Black: 14
(-) E-Brake Output: Black/White: 1
(-) Trunk Status Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
[1]
(+) Brake Output: Gray: 6
Multiplex Output: Violet/Green: 8
Multiplex Output: Violet/Brown: 9
RAP Off: Yellow/Black: 10
(-) Driver door trigger
Violet or Violet/Dk. Blue wire
in driver kick panel or
at driver door module
8
(+) Brake Input
(AC) Tach Input
[1]
(-) Ground
(+) 12V
(-) Hood Switch
RF
DBALL/
Prog. Button
DBALL2
LED
See page 14 for
wiring information
(+) Parking Lights
(-) Lock Output
(-) Unlock Output
(-) Trunk Output
(+) Starter Output
(+) Ignition Input/Output
(-) GWR (Status)
10: Blue/White: (-) GWR (Status) Input
9: Pink: (+) Ignition Input
8: Violet: (+) Starter Input
3: Red/White: (-) Trunk Input
2: Blue: (-) Unlock Input
1: Green: (-) Lock Input
(+)12V
RX
(-) Ground
TX
P#: XKD2D65
© 2015 Directed. All rights reserved.
Rev.: 20150128
Page 13
