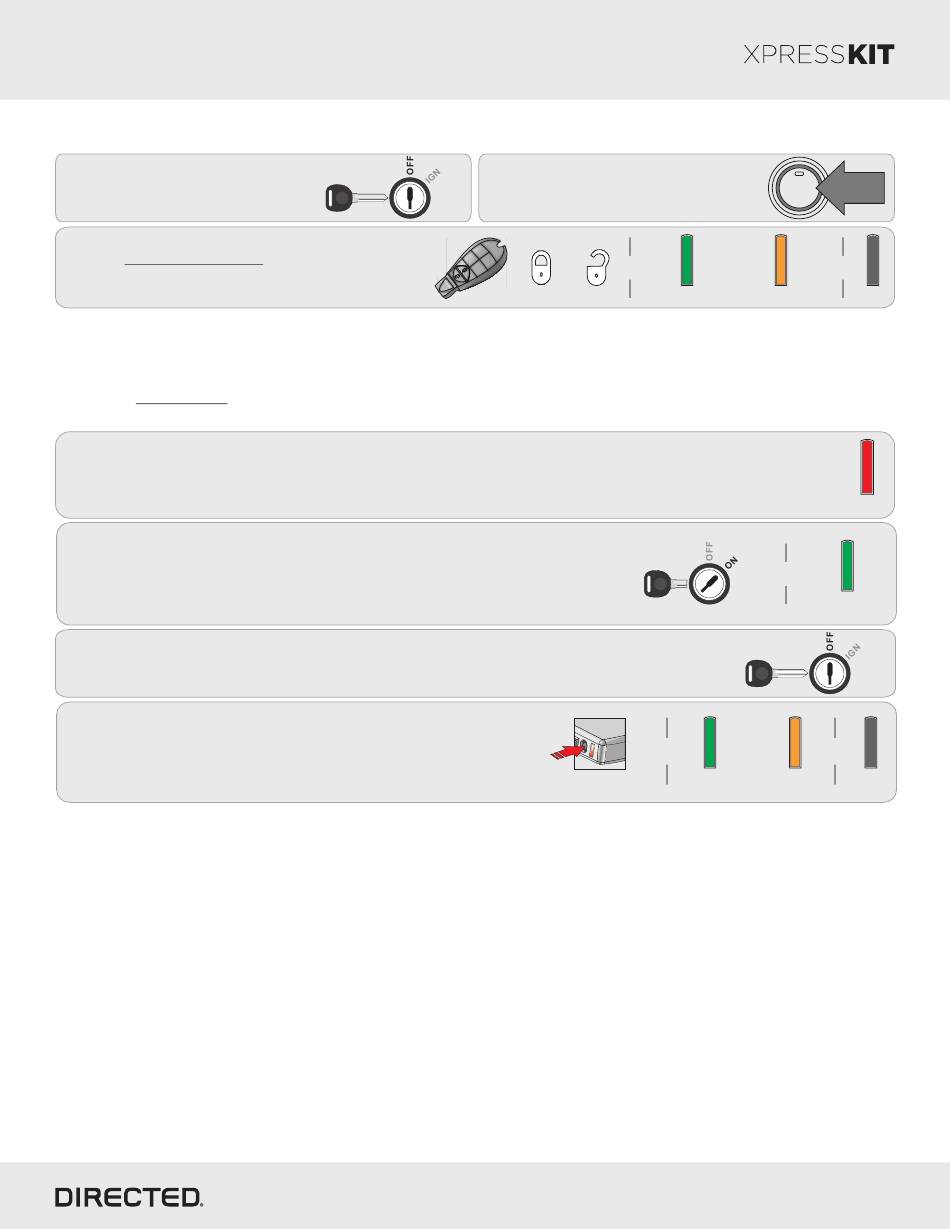

Module Programming - Vehicles Without Factory Keyless - Directed XPRESSKIT DBALL Installation Manual

Platform: DBALL/DBALL2
Firmware: CHRYSLER
Turn the key to the OFF
3
position and remove it
from the ignition barrel.
Press LOCK or UNLOCK on the
factory transmitter. The LED turns ON
4
solid green OR orange for 3 seconds and
then turns off.
You have successfully completed the module programming sequence.
Vehicles WITHOUT Factory Keyless
(Refer to the previous page for programming instructions WITH factory keyless.)
1
Wait until the LED turns ON solid red.
Insert the key into the ignition barrel and turn it to the ON position.
It is important to wait for the LED to start flashing green.*
2
* Refer to the LED Diagnostics section on page 25 for troubleshooting
if the LED does not flash green within 15 seconds.
3
Turn the key to the OFF position and remove it from the ignition barrel.
Press and release the Programming Button. The LED
4
turns ON solid green OR orange for 3 seconds and then
turns OFF.
You have successfully completed the module programming sequence.
Key OUT
or
START
Press the Push-to-Start
(PTS) button once more
to turn the ignition OFF.
or or
&
Solid Green
Key IN
&
Press & Release
Solid
Rev.: 20150128
Page 20
ENGINE
1X
PUSH
START
STOP
&
Solid Orange Off
Solid
&
START
Flash Green
Key OUT
START
or
&
Solid Off
© 2015 Directed. All rights reserved.
