Type 3B (With Chthd2 T-Harness R1-R6) - Directed XPRESSKIT DBALL Installation Manual

Platform: DBALL/DBALL2
Firmware: CHRYSLER

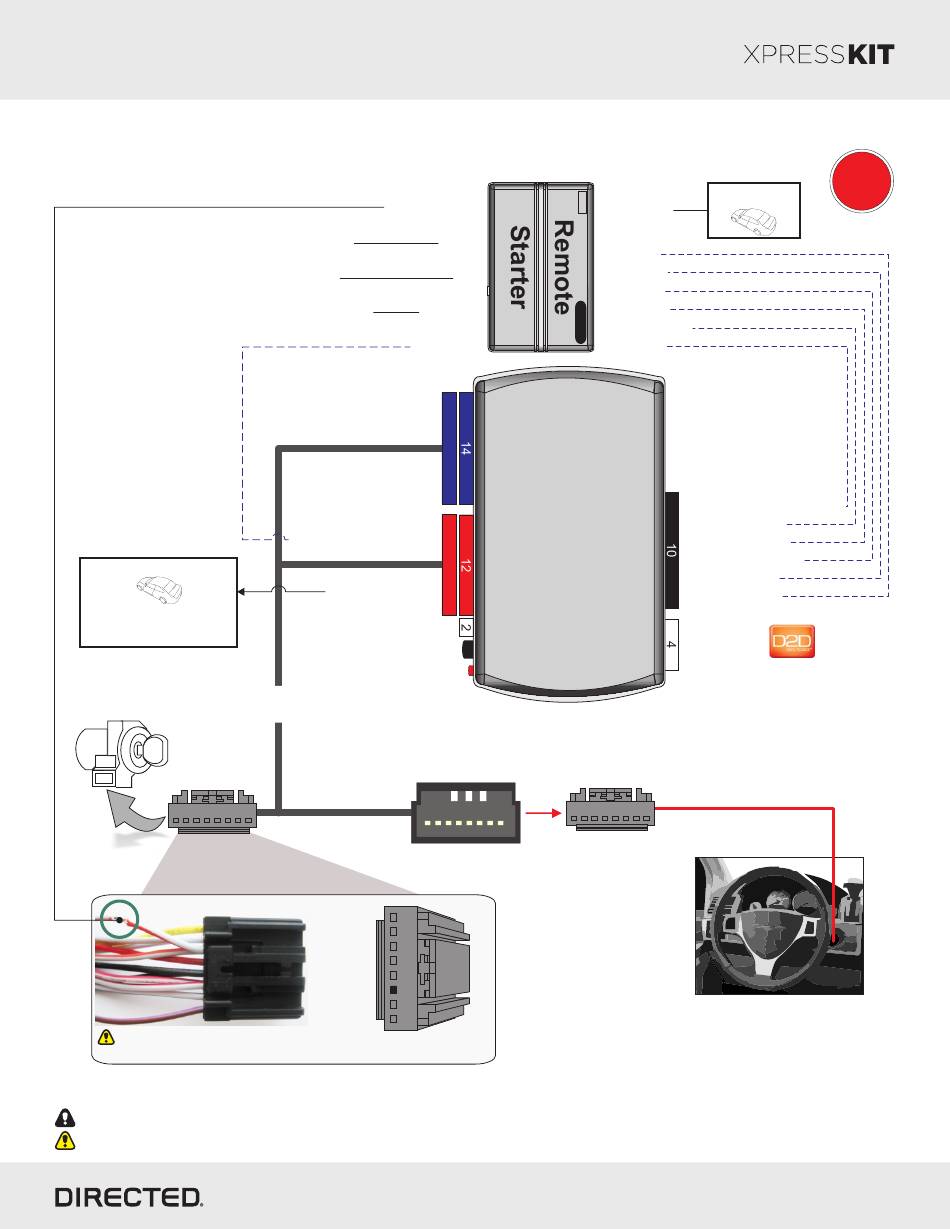

Installation Type 3b (with CHTHD2 T-Harness R1-R6)
(-) Driver door trigger
Violet or Violet/Dk. Blue wire
in driver kick panel or
at driver door module
Sentry Key Module
CHTHD2 R1-R6
Near Ignition Switch
(vehicle side)
8-pin Connector
(harness side)
Connect to Red/White wire, pin 3 (male plug)
Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[1]
Wires not listed in this diagram are not required for the installation.
All adapters are displayed from the wire side (unless specified otherwise).
(+) Ignition Input/Output
(-) Ground
(+) 12V
(-) Hood Switch (-) Hood Switch
(AC) Tach Input
[1]
(AC) Tach Output: Violet/White: 5
[1]
RAP Off: Yellow/Black: 10
(optional)
8-pin Connector
(harness side)
8
3
1
Wire side view
(T-Harness 8-pin Conn.)
(+) Parking Lights
(-) Ground
(-) Lock Output
(-) Unlock Output
(+) 12V
(-) Trunk Output
(+) Starter Output
(+) Ignition Input/Output
(-) GWR (Status)
RF
Prog. Button
DBALL
LED
8-pin Connector
at Sentry Key Module Near
Ignition Switch (vehicle side)
Rev.: 20150128
Page 12
D2D
only
See page 14 for
wiring information
10: Blue/White: (-) GWR (Status) Input
9: Pink: (+) Ignition Input
8: Violet: (+) Starter Input
3: Red/White: (-) Trunk Input
2: Blue: (-) Unlock Input
1: Green: (-) Lock Input
(+)12V
RX
(-) Ground
TX
P#: XKD2D65
