Type 1C (Without T-Harness) - Directed XPRESSKIT DBALL Installation Manual

Platform: DBALL/DBALL2
Firmware: CHRYSLER

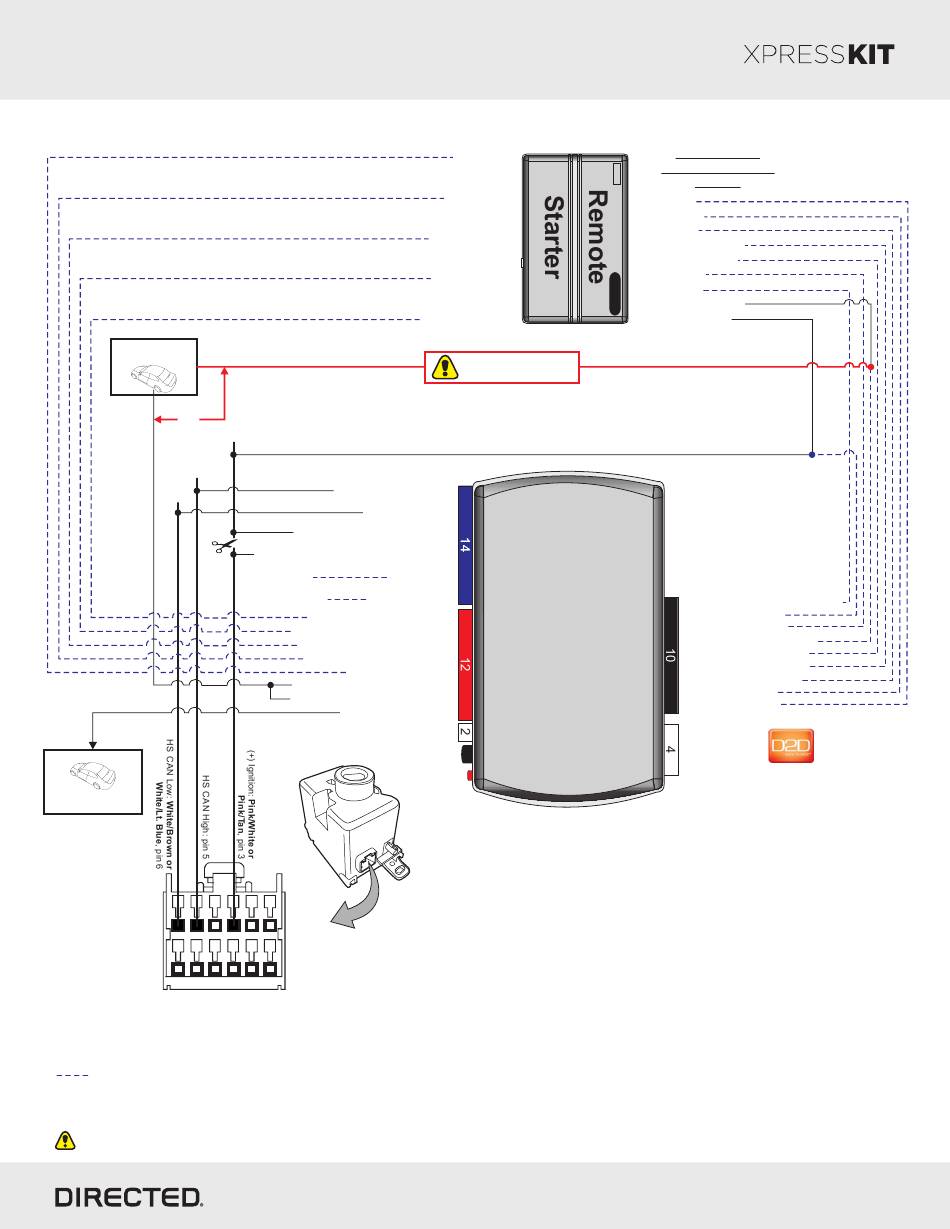

Installation Type 1c (without T-Harness)
See page 6 for
wiring information
Parking
Lights
OR
(-) Driver door trigger
Violet wire in
driver kick panel
6
Connector side view
at ignition switch
12
Not required in D2D mode.
Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[1]
Connection required for Dodge Journey.
[2]
All adapters are displayed from the wire side (unless specified otherwise).
(-) Trunk Status Input
(-) Door Status Input
(-) E-Brake Status Input
This is the only connection required for
parking light output for the Dodge Journey, and
the DBALL MUX connection is not required
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
Ignition Isolation (veh. side): Yellow: 8
Ignition Isolation (conn. side): Orange/Yellow: 9
(+) 12V (+) 12V: Red: 13
(-) Ground (-) Ground: Black: 14
(-) E-Brake Output: Black/White: 1
(-) Door Status Output: Green/White: 3
(-) Trunk Status Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
[1]
(+) Brake Output: Gray: 6
(MUX) Parking Lights: Violet/Green: 8
(MUX) Parking Lights: Violet/Brown: 9
RAP Off: Yellow/Black: 10
Ignition
Barrel
1
7
(+) Brake Input
(AC) Tach Input
[1]
Connect for Dodge
Journey only.
RF
DBALL/
Prog. Button
DBALL2
LED
Rev.: 20150128
(-) Ground (-) Ground
(+) 12V (+) 12V
(-) Hood Switch (-) Hood Switch
(-) Lock Output
(-) Unlock Output
(-) Trunk Output
(-) Aux1 Right Sliding Door
(-) Aux2 Left Sliding Door
(+) Starter Output
(-) GWR (Status)
(+) Parking Lights Output
[2]
(+) Ignition Input/Output
10: Blue/White: (-) GWR (Status) Input
9: Pink: (+) Ignition Input
8: Violet: (+) Starter Input
7: Pink/White: (+) Parking Input
5: Violet/Black: (-) Aux2 Input
4: White/Violet: (-) Aux1 Input
3: Red/White: (-) Trunk Input
2: Blue: (-) Unlock Input
1: Green: (-) Lock Input
(+)12V
RX
(-) Ground
TX
P#: XKD2D65
© 2015 Directed. All rights reserved.
Page 5
