Directed XPRESSKIT DBALL Installation Manual page 10

Platform: DBALL/DBALL2
Firmware: CHRYSLER
Parking Light Vehicle Wiring Reference Chart (Type 2)
Vehicle Years Vehicle Wire
Chrysler
300/300c 2008-10 White/Brown
Dodge
Charger 2008-10 White/Brown
Magnum 2008 White/Brown
Jeep
Commander 2008-10 White/Dk. Blue Hazard light switch
Grand Cherokee 2008-10 White/Dk. Blue Hazard light switch
Refer to DirectWire for additional parking light locations.

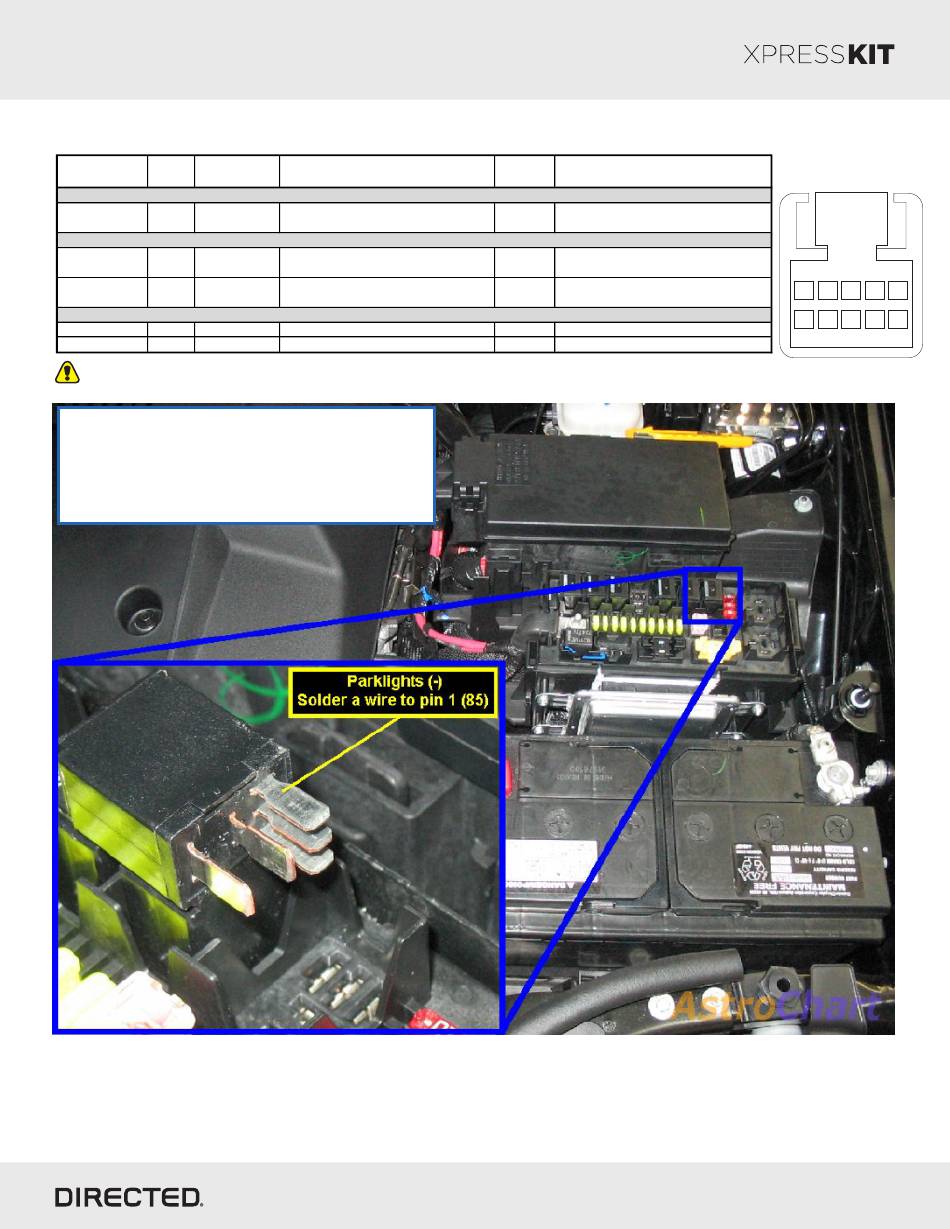

Jeep Commander & Jeep Grand
Cherokee
ALTERNATIVE parking light
connection
Location on vehicle
Black connector at light switch, pin 1
Black connector at light switch, pin 1
Black connector at light switch, pin 1
DBALL Output from
Polarity
12 Pin connector
8: Violet/Green: (MUX ) Parking Lights
MUX
9: Violet/Brown: (MUX ) Parking Lights
8: Violet/Green: (MUX ) Parking Lights
MUX
9: Violet/Brown: (MUX ) Parking Lights
8: Violet/Green: (MUX ) Parking Lights
MUX
9: Violet/Brown: (MUX ) Parking Lights
(-) (-) Parking Lights Output
(-) (-) Parking Lights Output
Rev.: 20150128
Page 10
Light switch,
black 10-pin plug
1 2 3 4 5
6 7 8 9 10
