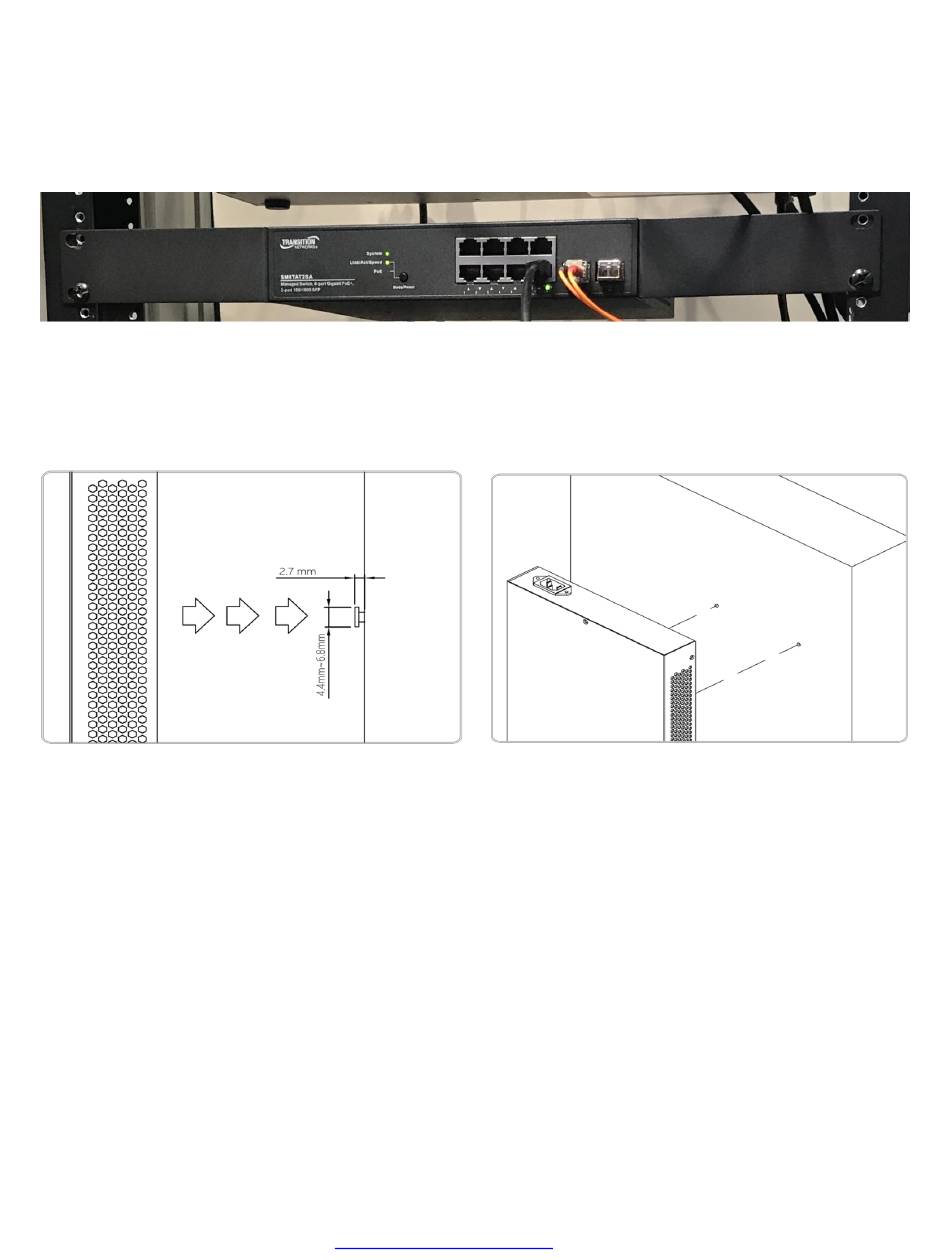

Rack Mounting

1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten then with a screwdriver
to secure the brackets.
2. Place the switch in the rack. Align the oval holes in the brackets with the mounting holes in the rack posts.
3. Attach the brackets to the posts. Insert screws and tighten them.

Wall Mounting

Step 1: Install user-supplied screws on the appropriate location on the wall and be aware of the dimensional
limitation of the screws.
Install screws to the wall
Step 2: Make sure that the switch is attached securely to wall.
33814 Rev. A https://www.transition.com
SM8TAT2SA-DC Install Guide
Attaching switch to the wall
