Ethernet Interface Connecting (RJ45 Ethernet)

The switch provides two types of electrical interfaces: RJ45 and optical (mini-GBIC). Connecting the Ethernet
interface via RJ45:
•
To connect to a PC, use a straight-through or a cross-over Ethernet cable.
•
To connect the SM8TAT2SA-DC to an Ethernet device, use UTP (Unshielded Twisted Pair) or STP (Shielded
Twisted Pair) Ethernet cables.

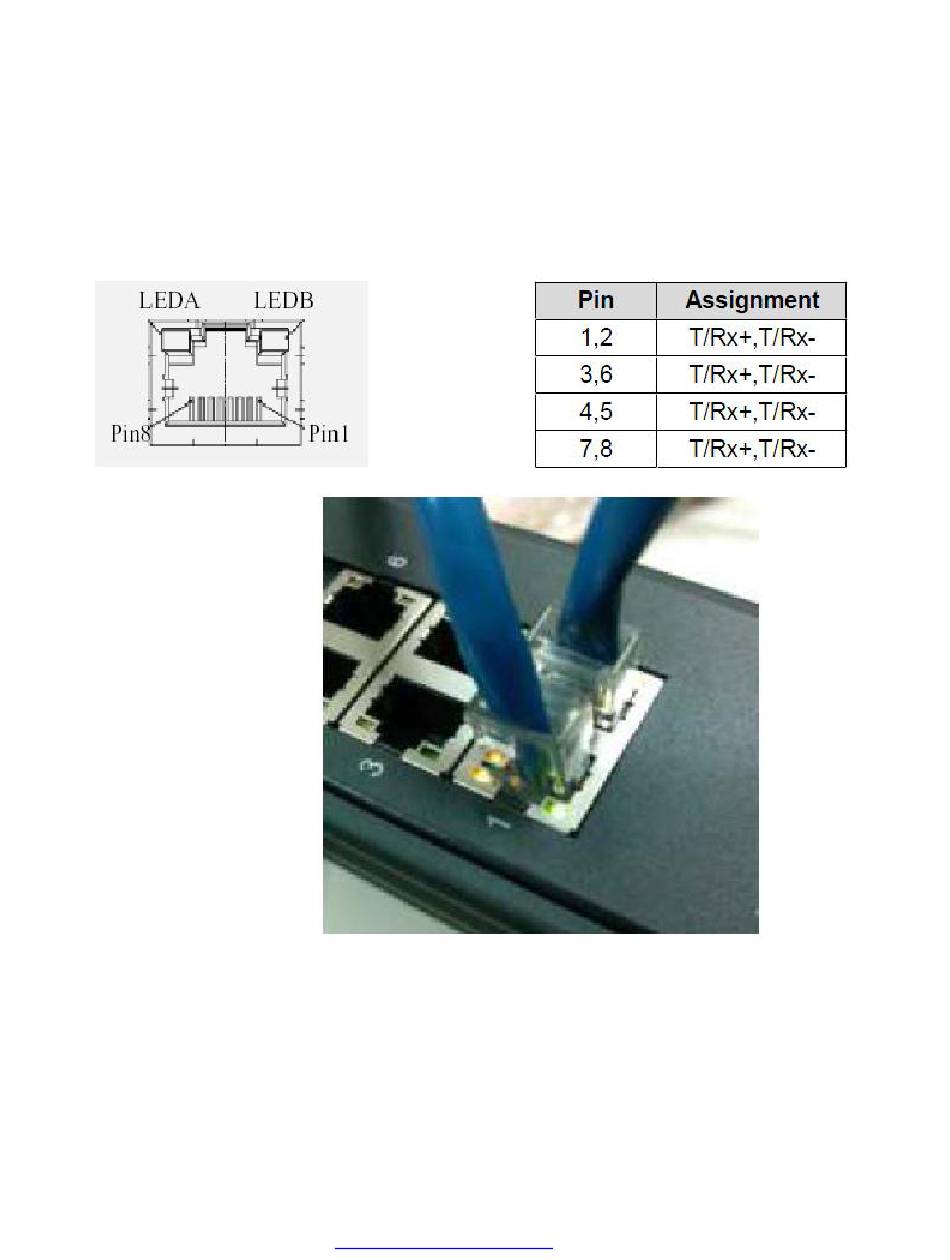

The RJ-45 connector pin assignments are shown below.
33814 Rev. A https://www.transition.com
SM8TAT2SA-DC Install Guide
Page 23 of 43
