Console Connection

A Console port is for local management by using a terminal emulator or a computer with terminal emulation
software using these settings:
•
DB9 connector connect to computer COM port
•
Baud rate: 115200bps
•
8 Data bits, 1 Stop bit
•
Priority: None
•
Flow control: None
To connect the host PC to the console port, an RJ45 (male) connector-to-RS232 DB9 (female) connector cable is
required. The RJ45 connector of the cable is connected to the Console port of the SISGM1040-384D-LRT. The

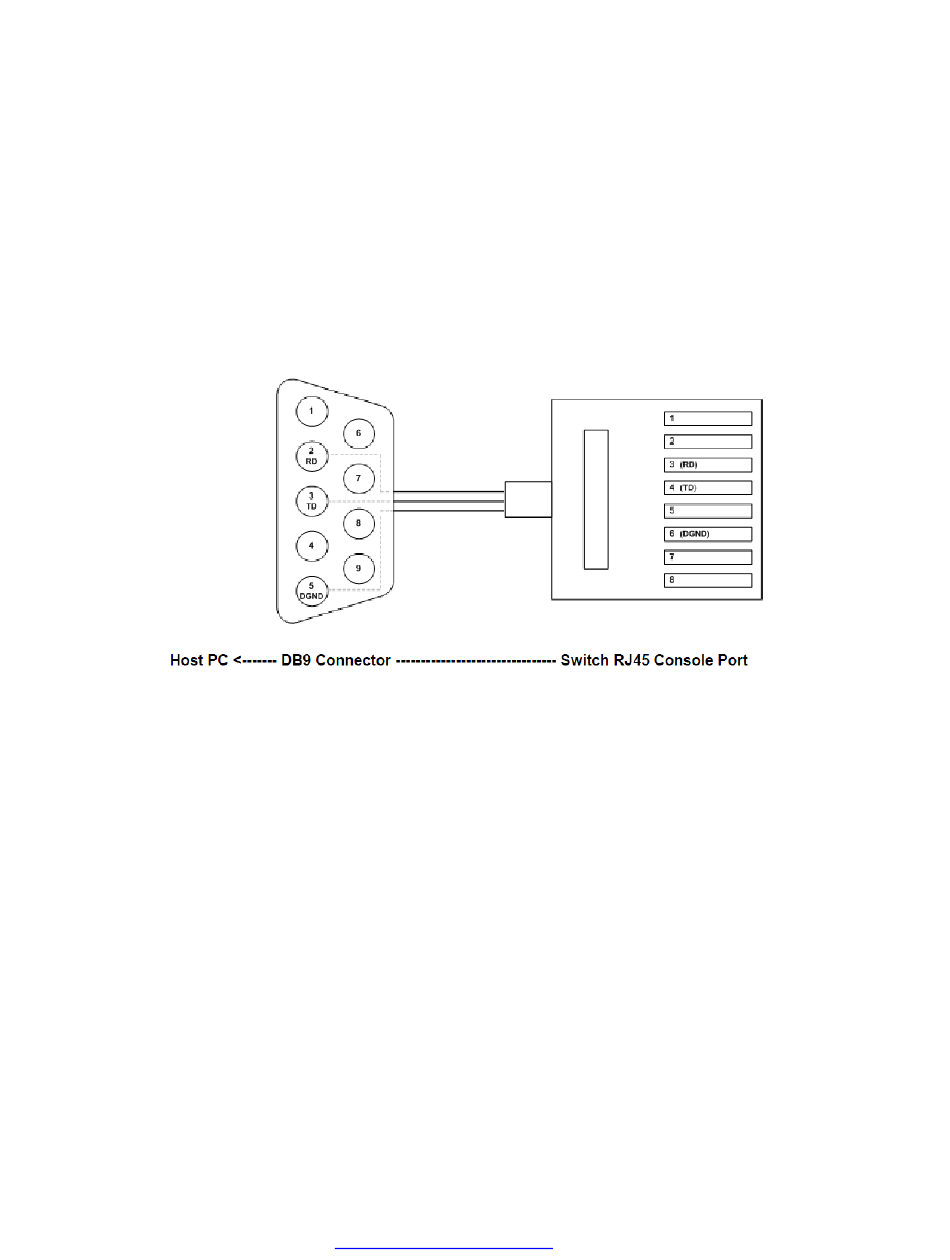

DB9 connector of the cable is connected to the PC COM port. The console cable pin assignments are shown
below:
