Front and Back Panels

The SM8TAT2SA-DC front and back panels are shown and described below.

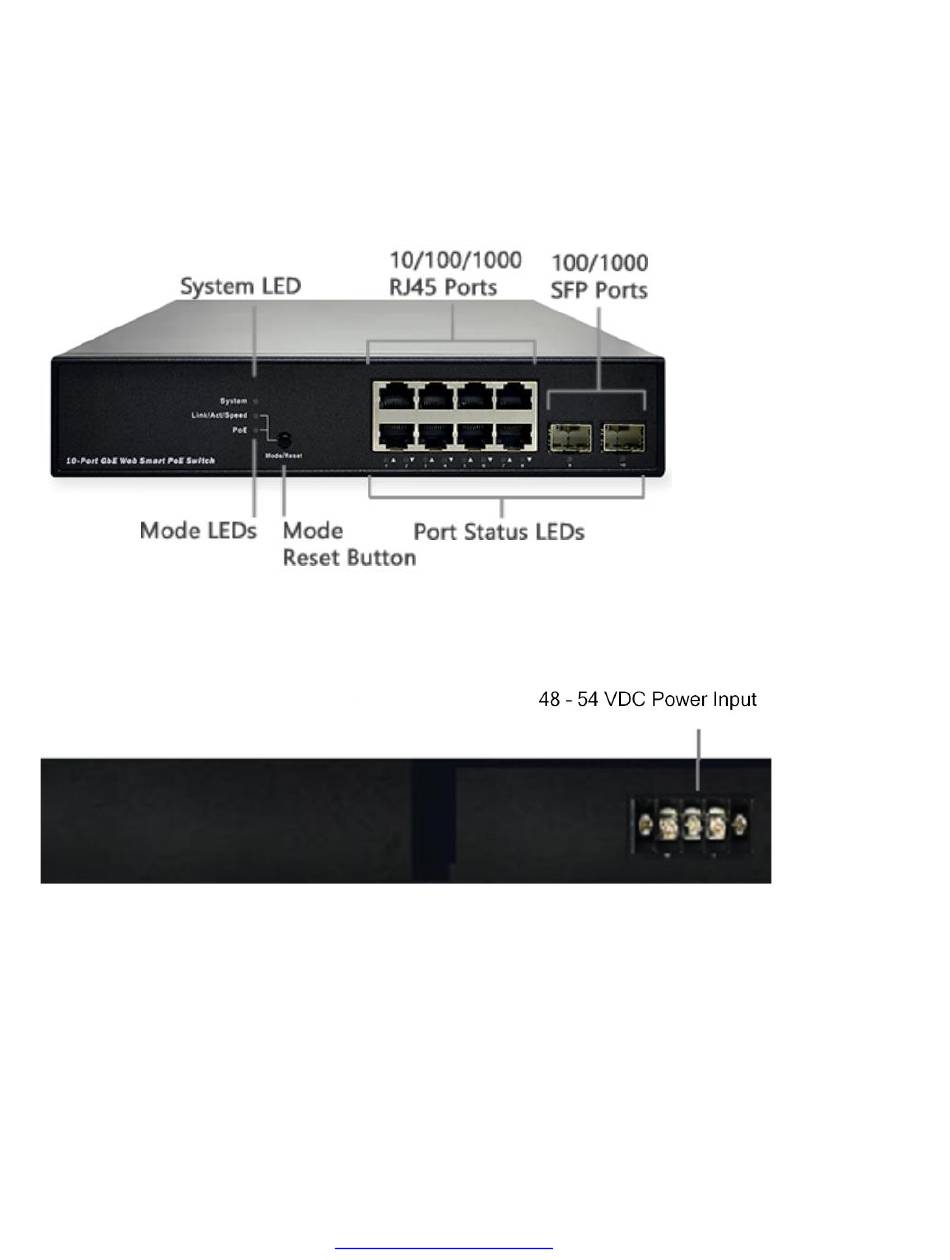

The SM8TAT2SA-DC front panel provides the switch LEDs, ports, and Mode/Reset pushbutton switch.

The SM8TAT2SA-DC back panel provides the 48-54VDC power input connection.
