4.

DEVICE LAYOUT

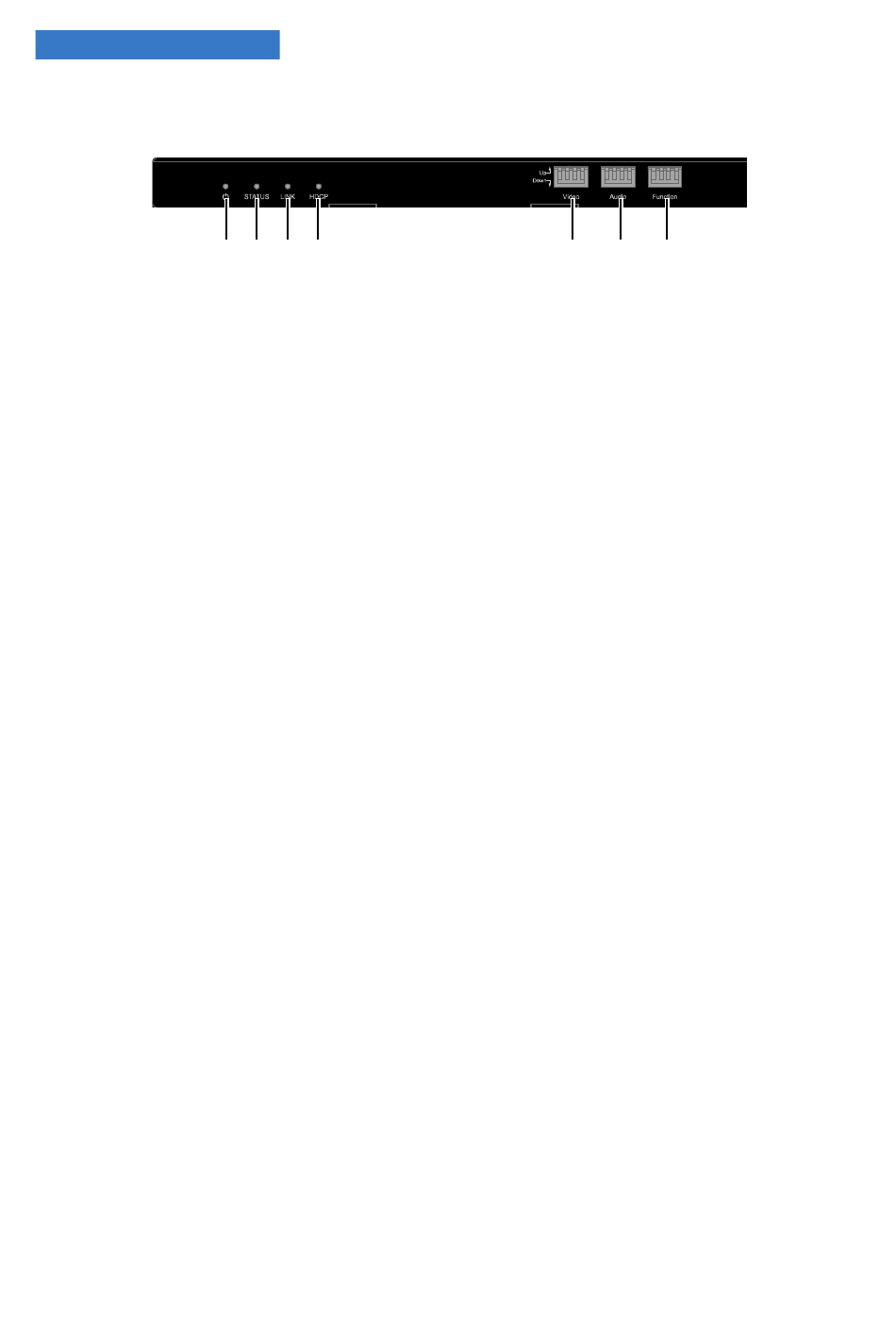

4.1. B-660-EXT-444-100A Transmitter

1
1. POWER LED
On: Transmitter is powered on
Off: Transmitter is powered off.
2. STATUS LED
Blinking: The transmitter is working properly.
Off: The transmitter is not working properly.
3. LINK LED
On: HDBT link is normal.
Off: No HDBT link.
4. HDCP LED
On: HDCP signal is being transmitted.
Blinking: No-HDCP signal is being transmitted.
Off: No signal is being transmitted.
5. Video
Video EDID DIP Switch. For more information, see EDID Management Section.
6. Audio
Audio EDID DIP Switch. For more information, see EDID Management Section.
7. Function
Function DIP Switch. For more information, see Function Setting Section.
Front Panel
2 3 4 5
6
6 7
