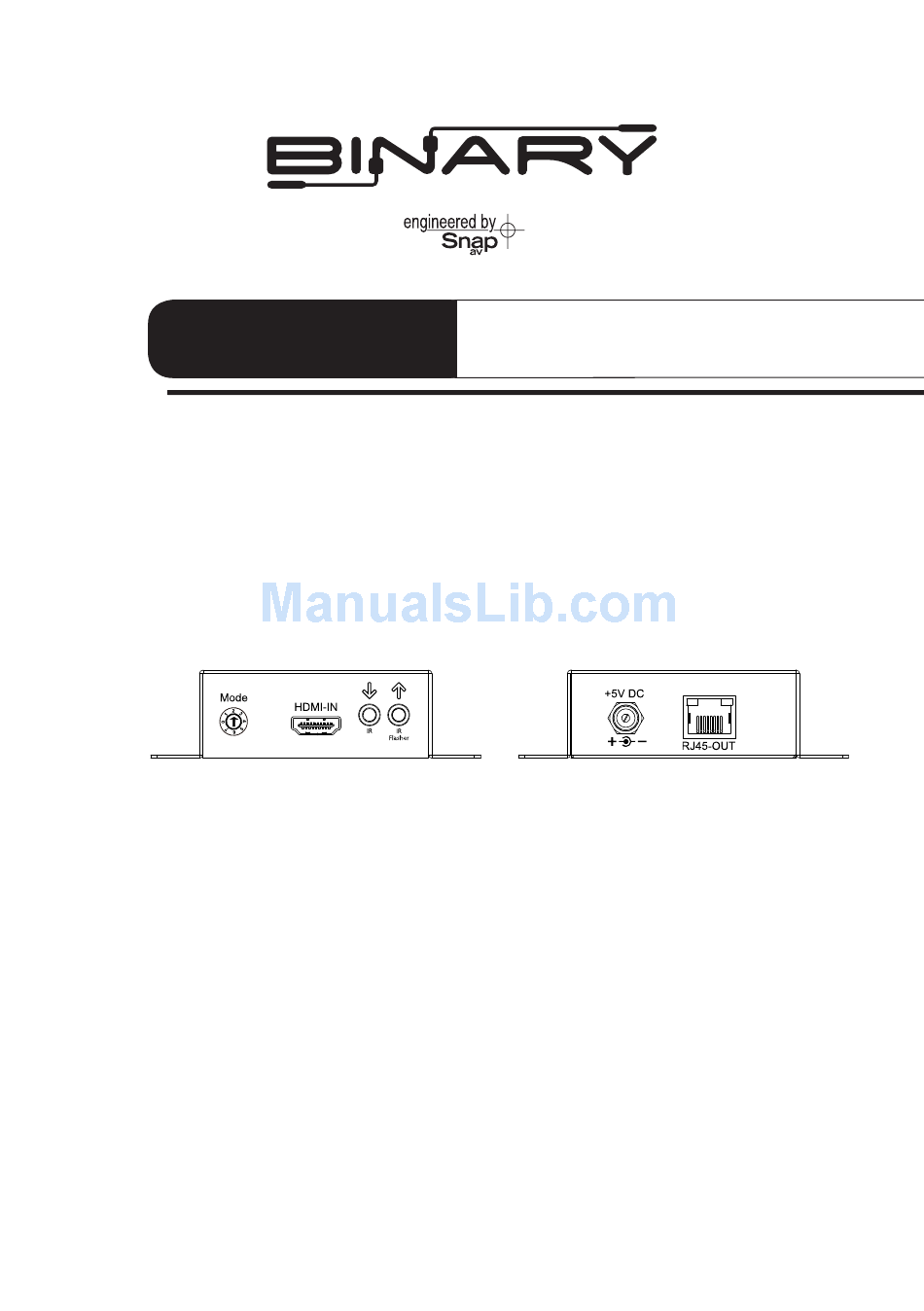

B-200-1CAT-HDIR Installation and Users Manual IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Read and follow all instructions and warnings in this manual. Keep for future reference.
B-200-1CAT-HDIR Installation and Users Manual 1. OVERVIEW The B-320-1CAT-HDIR extends HDMI over single Cat5e/6 providing video and audio transmission to remote displays. In addition, the B-320-1CAT-HDIR is equipped with bi-directional IR pass-through allowing users to have bi-directional IR control with no additional wires.
B-200-1CAT-HDIR Installation and Users Manual 3. FEATURES Form and Function • Extends HDMI Signals via a Single Cat5e/Cat6 Resolution Cat5e Cat6e 1080i / 720p 24-bit color 200ft 200ft Full HD 1080P 24-bit color 130ft 165ft Full HD 1080P 36-bit deep color...
B-200-1CAT-HDIR Installation and Users Manual 4. CONNECTIONS AND CONTROLS 4.1. Transmitter Connections and Controls Receiver EDID Mode Setting 7 position rotary switch that provides selection of 6 pre-configured EDIDs and learning. See section: 6.3 EDID Configuration. HDMI In from Source (HDMI) Connect an HDMI cable to the HDMI output of the source component.
B-200-1CAT-HDIR Installation and Users Manual 4.2. Receiver Connections and Controls Distance Control 8 position rotary switch that provides equalization control to prevent over or under loading the HD signal. See Distance Calibration for more details. HDMI Out to Display (HDMI) Connect an HDMI cable to the display at the remote location.
B-200-1CAT-HDIR Installation and Users Manual 5. BASIC CONNECTIONS HDMI Source IR Processor / Controller IR Outputs IR Inputs PLAY AC Power Receiver Shielded Cat5e/Cat6 B-200-1CAT-HDIR Receiver AC Power HDMI (1meter or less) Note: This diagram depicts the functionality of serial number 715212090001 or above.
B-200-1CAT-HDIR Installation and Users Manual 5.2. IR Control Connections Bi-directional IR signals are transmitted between the B-200-1CAT-HDIR Transmitter and Receiver over the Cat5e/6 cable. How the IR connections function varies on the Transmitter and Receiver based on the common use cases for sending and receiving IR.
B-200-1CAT-HDIR Installation and Users Manual 5.2.1 IR Control In- Transmitter Only 5.2.1.1. Below Serial Number 715212090001 (3.5mm {1/8”} Stereo) The most common use of the IR Receiver port is to send an IR signal from a powered IR Receiver to an IR Flasher connected to the Receiver. This connection includes +9V DC power for an IR Receiver.
B-200-1CAT-HDIR Installation and Users Manual 5.2.2. IR Receiver In– Receiver Only (3.5mm {1/8”} Stereo) The most common use of the IR Receiver port is to send an IR signal from a powered IR Receiver to an IR Flasher connected to the Transmitter. This connection includes +9V DC power for an IR Receiver.
B-200-1CAT-HDIR Installation and Users Manual 6. INSTALLATION Note: DO NOT connect power to the B-200-1CAT-HDIR until all other connections are made and the unit is installed. 6.1. B-200-1CAT-HDIR Transmitter Installation Note: If EDID learning is required, the EDID from the display MUST be learned prior to installing the Transmitter.
EDID. Keep the mode dial on “7” at all times to use the learned EDID. 6. Unplug the HDMI cable from the display and follow the installation instructions in section 6.1 B-200-1CAT-HDIR Transmitter Installation. 6.4. Distance Calibration CAUTION: Inappropriate signal level setting may cause an overpowering issue that may shorten the product life.
8. WARRANTY 2-Year Limited Warranty This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled.
