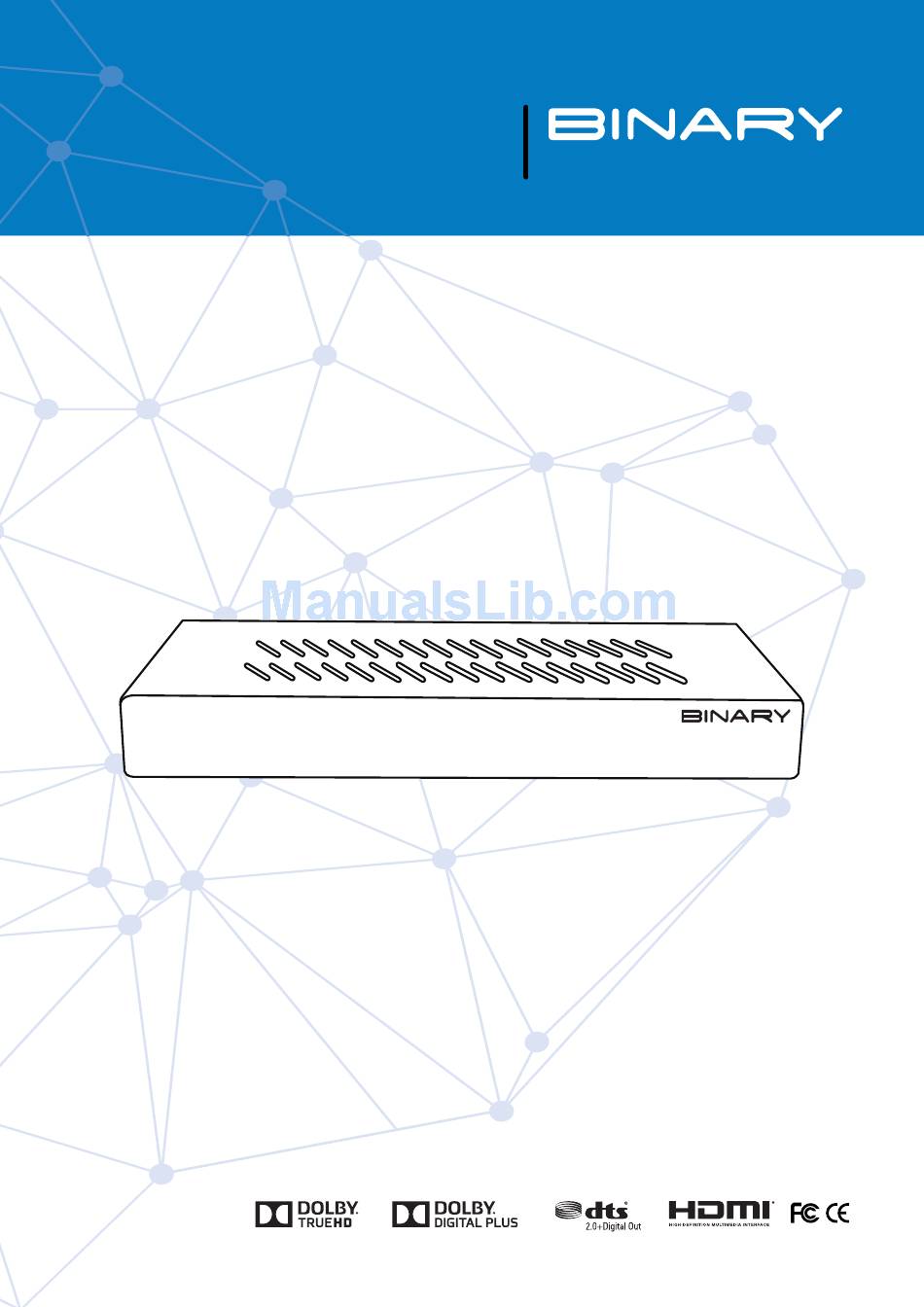

- Page 1 HDMI AUDIO DE-EMBEDDER B-240-HD-2AC INSTALLATION MANUAL Source | M (HDMI Ou B-240-HD-2AC...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment. -
Page 3: Product Overview
© 2015 Binary® PRODUCT OVERVIEW Welcome to Binary. This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. -
Page 4: Device Layout

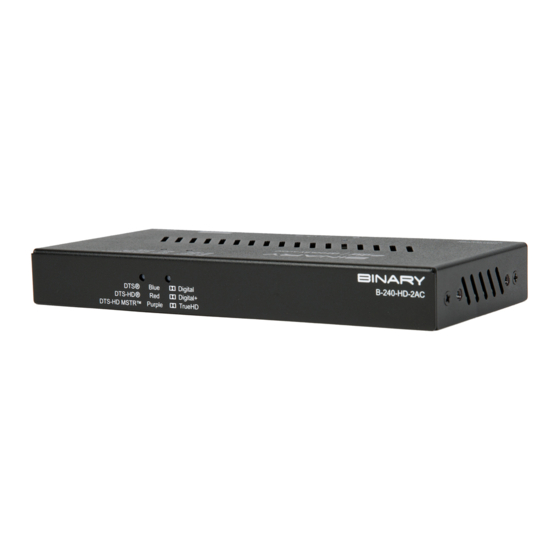

DEVICE LAYOUT Front Panel Blue Digital Blue DTS-HD Digital+ Purple DTS-HD MSTR Purple TrueHD A. DTS Audio Format Indicator LED ® The color of this LED indicates the DTS® audio format received from the HDMI source, as shown here: • Blue: DTS ®... -
Page 5: Rear Panel
© 2015 Binary® Rear Panel C. HDMI Out Audio Switch Selects the desired audio setting for HDMI output. • Source: Pass through multichannel from HDMI input to HDMI output. • Mute: Only sends video to HDMI output, no audio • 2ch: HDMI and RCA will output 2 channel audio. -
Page 6: Installation & Applications
6. Set the HDMI OUT audio switch to Source to pass the original HDMI audio signal through to the HDMI OUT of the B-240-HD-2AC. This will distribute two-channel analog audio to the whole house audio matrix. See Rear Panel for more details. - Page 7 3. Connect the audio cables from the RCA outputs on the de-embedder to the audio inputs of the amplifier. 4. Connect power to the B-240-HD-2AC. 5. Set the HDMI OUT Audio switch to Mute to output video via HDMI without audio, while sending 2 channel audio to the in-room amplifier.
-
Page 8: Specifications
2-Year Limited Warranty This Binary product has a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization (RA) number.
