Binary B-260-ARC Install Manual

Audio return extender for hdmi earc and spdf in
Hide thumbs Also See for B-260-ARC:
Table of Contents

Advertisement

Quick Links

Download this manual
B-260-ARC

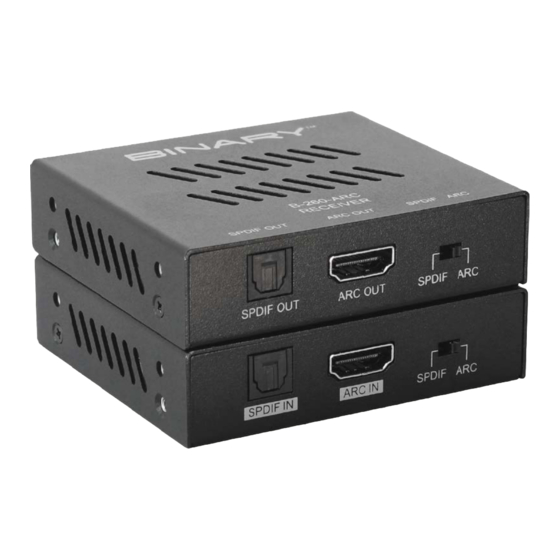

Audio return extender for HDMI eARC and SPDF IN
Install Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-260-ARC and is the answer not in the manual?

Questions and answers

Related Manuals for Binary B-260-ARC

Summary of Contents for Binary B-260-ARC

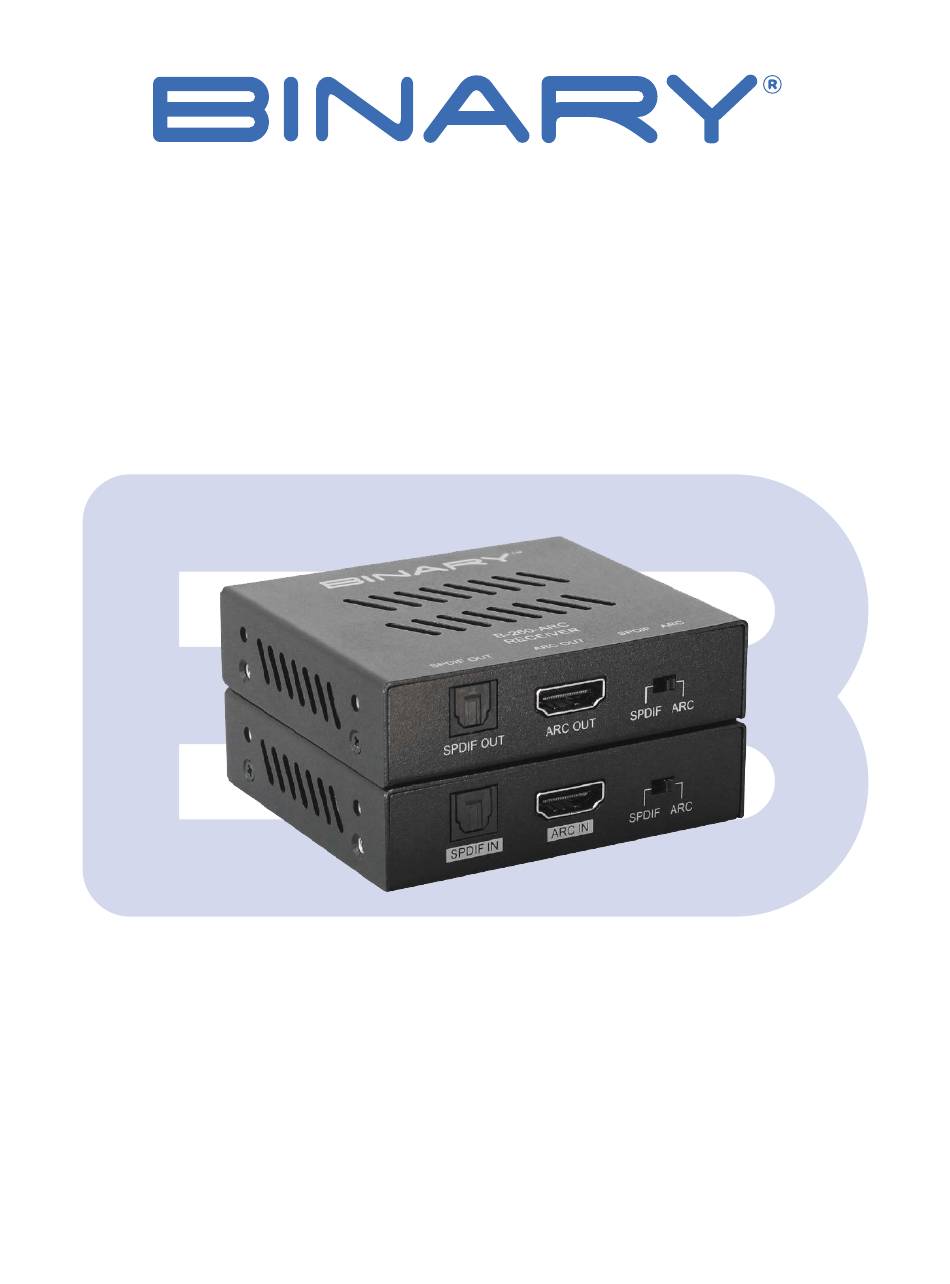

  • Page 1 B-260-ARC Audio return extender for HDMI eARC and SPDF IN Install Guide...

  • Page 2: Important Safety Information

    Important safety information To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.

  • Page 3: Fcc Warnings

    FCC warnings This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Product Overview

    DIP switches of transmitter and receiver both need to be switched to the “ARC” position. Package contents • 1X B-260-ARC Transmitter • 1X B-260-ARC Receiver • 2 X DC 5V Power Adapter • 4x Mounting Ears (with Screws) •...

  • Page 5: Device Layout

    • SPDIF: Configure auxiliary SPDIF input, pass optical audio from transmitter to receiver unit. B-260-ARC receiver 1. POWER: Connect to the power adapter provided. On Many TV’s the B-260-ARC RX can be connected to the TV USB connector for power.

  • Page 6: Installation

    Installation Warning: Before installation, please ensure the device is disconnected from the power supply. Steps to install the device in a suitable location: 1. Attach the mounting ear to the enclosure using the screws provided in the package. 2. The mounting ear is attached to the enclosure as shown. 3.
  • Page 7 HDMI eARC HDMI eARC Figure 1: Wiring option 1, ARC...
  • Page 8 Wiring 2: SPDIF mode 1. Switch both the DIP switches of transmitter and receiver to SPDIF mode. 2. Connect an audio source to the SPDIF IN port of the transmitter. 3. Connect an audio device such as a stereo amplifier to the SPDIF OUT port of the receiver. 4.
  • Page 9 UTP pinout Diagram...

  • Page 10: Specifications

    Specifications Technical Transmitter: 1 × ARC IN, 1 × SPDIF IN, 1 × UTP OUT, 1 × POWER (micro USB) Input/Output port Receiver: 1 × ARC OUT, 1 × SPDIF OUT, 1 × UTP IN, 1 × POWER (micro USB) HDMI: PCM 2.0CH, Dolby 5.1CH, DTS 5.1CH, DD+ Input/Output audio formats supported SPDIF: PCM 2.0CH, Dolby 5.1CH, DTS 5.1CH, DD+...
