Summary of Contents for Binary B-520-EXT-330-RS-IP

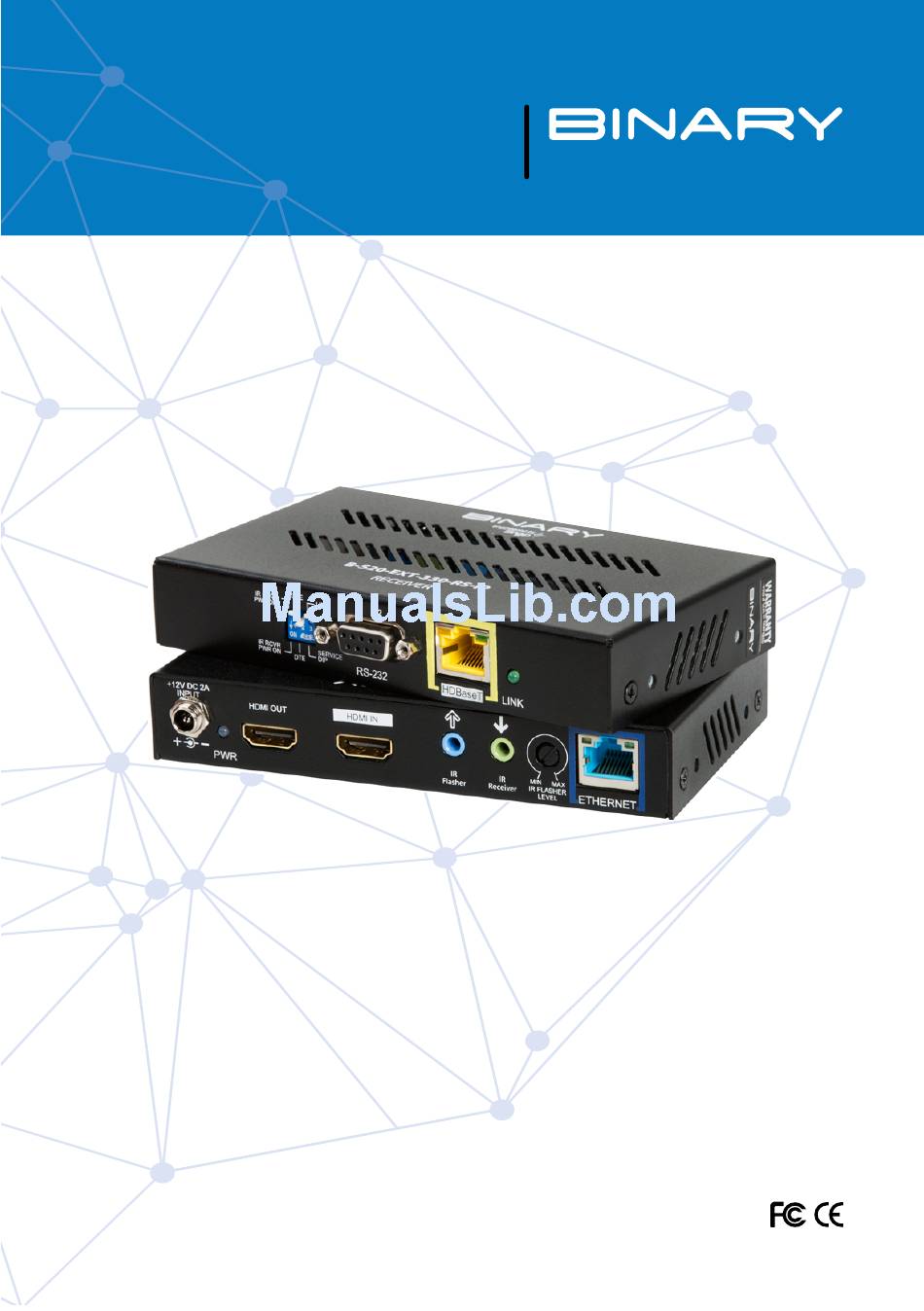

- Page 1 HDBaseT EXTENDER B-520-EXT-330-RS-IP INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
-
Page 3: Table Of Contents
4.1. B-520-EXT-330-RS-IP Transmitter ......................5 4.2. B-520-EXT-330-RS-IP Receiver ........................6 5. Installation ..................................6 5.1. B-520-EXT-330-RS-IP Transmitter Installation..................6 5.2. B-520-EXT-330-RS-IP Receiver Installation ..................7 6. Applications ..................................7 6.1. HDBaseT Link (RJ45) Connection ......................8 6.2. IR Control Connections ..........................8 6.2.1. Point-to-Point IR Control - Stereo (3.5mm) IR Receiver .............9 6.2.2. -
Page 4: Product Overview
1. PRODUCT OVERVIEW Welcome to Binary. This product is engineered to provide years of exceptional reliability. We appreciate your business and we stand committed to providing our customers with the highest degree of quality and service in the industry. This device extends HDMI® over a single category cable using HDBaseT technology allowing video and audio transmission to remote displays. -
Page 5: Device Layout
4. DEVICE LAYOUT 4.1. B-520-EXT-330-RS-IP Transmitter Ethernet Back of Transmitter Front of Transmitter FIGURE 1: Transmitter Layout A. Thread-locking Power Connector Connect to the included 12V DC, 2A power supply B. Power LED Lights up blue when the unit has power C. -
Page 6: B-520-Ext-330-Rs-Ip Receiver
CAUTION: Do not connect power to the device until all other connections are made and the unit is installed. 5.1. B-520-EXT-330-RS-IP Transmitter Installation 1. Run category cable from the location of the transmitter to the remote location of the receiver. -
Page 7: B-520-Ext-330-Rs-Ip Receiver Installation
DO NOT plug the power supply into an AC outlet until Receiver Installation is completed. 5.2. B-520-EXT-330-RS-IP Receiver Installation 1. Run category cable from the location of the transmitter to the remote location of the receiver. -
Page 8: Hdbaset Link (Rj45) Connection
CAUTION: Pinout configurations for IR receivers and control systems vary. Before connecting to this input, review this section carefully in order to match the pinouts for the device. HDMI Source IR Processor/ Controller PLAY IR Inputs IR Outputs B-520-EXT-330-RS-IP Transmitter Ethernet HDBaseT Back Front Ethernet B-520-EXT-330-RS-IP Receiver... -
Page 9: Point-To-Point Ir Control - Stereo (3.5Mm) Ir Receiver
6.2.1. Point-to-Point IR Control - Stereo (3.5mm) IR Receiver When using a powered IR receiver, the DIP switch for IR RCVR PWR should be set to ON. In this case a 3.5mm (1/8") stereo jack has to be used to send 9V DC power to the receiver. CAUTION: DO NOT connect a mono cable to this connection as damage may occur. -
Page 10: Ir Flasher Out-3.5Mm Mono - Transmitter And Receiver
Bidirectional RS-232 signals are transmitted between the device transmitter and receiver over the category cable. The transmitter may be connected to a control system and the receiver may be connected to an RS-232 controllable device. B-520-EXT-330-RS-IP Receiver B-520-EXT-330-RS-IP Transmitter Control... -
Page 11: Rs-232 Control (Db-9) Connection
6.3.1. RS-232 Control (DB-9) Connection To eliminate the need to make crossover or null modem cables, the RS-232 pinouts can be configured for DCE or DTE. Set switch 2 to DCE if the connected device is DCE, and to DTE if the connected device is DTE. -
Page 12: Rs-232 Operation Mode
FIGURE 11: Firmware Update settings 6.4. IP Control Connections Bi-directional Ethernet signals are transmitted between the B-520-EXT-330-RS-IP Transmitter and Receiver over the Cat5e/6 cable. The most common use is to send Ethernet signals for Networked TVs or any device in the remote location that has an Ethernet connection. This connection is only to be used for standard Ethernet signals and cannot be used for other communication formats. -
Page 13: Hdmi Out (Transmitter)
6.5. HDMI Out (Transmitter) We recommend using an HDMI cable that is one meter or less to ensure the highest signal quality. This HDMI Out is used to connect to local TV/displays. 6.6. EDID Configuration There are two EDID operating modes available for HDMI loopout. The EDID setting determines if the source connected to the HDMI input chooses the EDID from the display connected to the HDMI out on the transmitter and/or the display connected to the HDMI out on the receiver... -
Page 14: Latch-Locking Power Supply
6.7. Thread-Locking Power Supply This extender pair is Power over Cable capable and therefore can be powered from either the transmitter or receiver. When a power supply is connected to either the transmitter or receiver, the HDBaseT link sends power to the other end. CAUTION: Do not connect the power supply to the device until it is completely installed and all connections have been made. -
Page 15: Support
9. WARRANTY 2-Year Limited Warranty This Binary Product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled. - Page 16 Rev: 150806-1100 © 2015 Binary...
