DEVICE LAYOUT

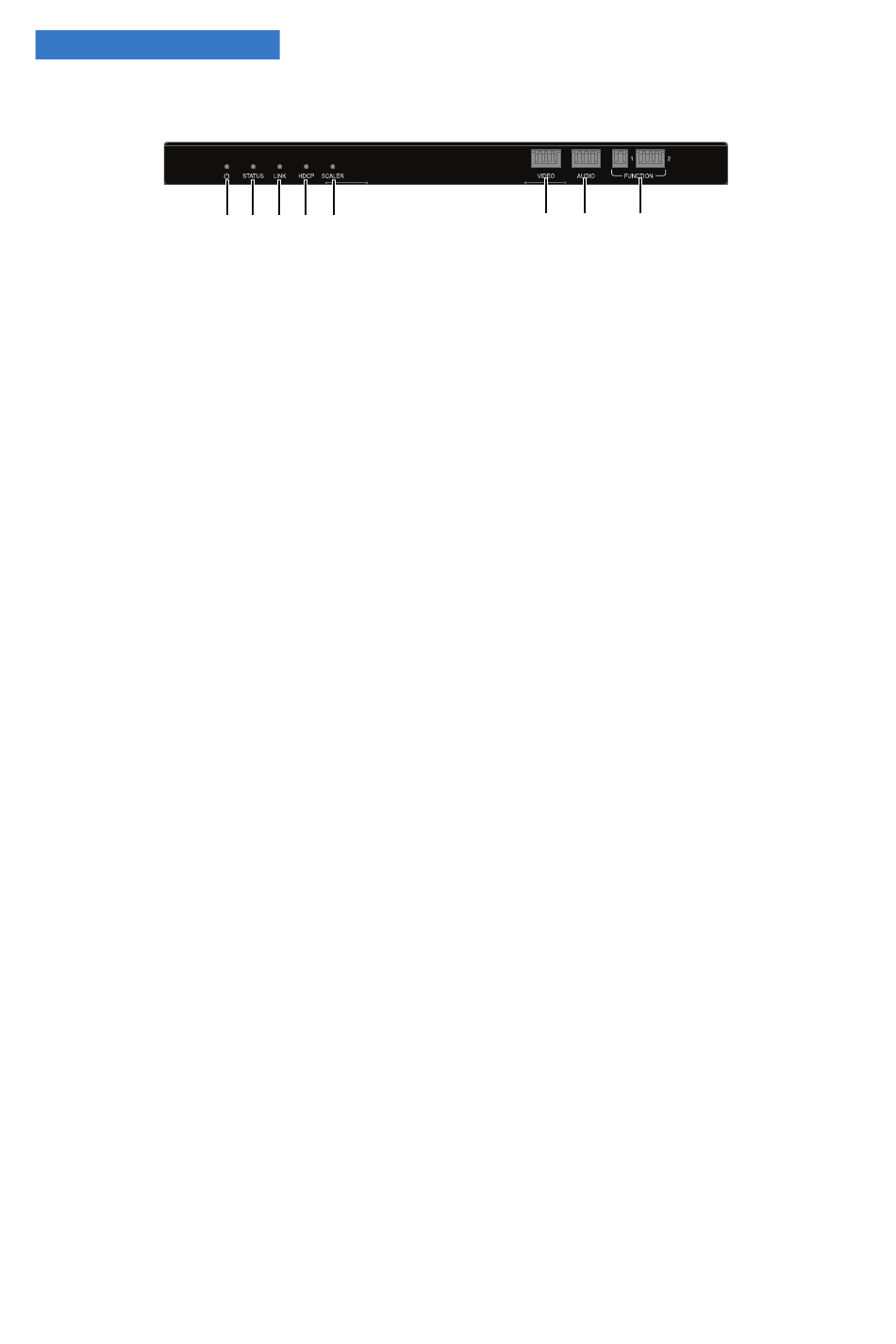

4.1. B-660-EXT-444-100AS Transmitter

1
1. POWER LED
On/Off: The transmitter is powered on/off.
2. STATUS LED
Blinking: The transmitter is working properly.
Off: The transmitter is not working properly.
3. LINK LED
On: HDBT link is normal.
Off: No HDBT link.
4. HDCP LED
On: HDCP encrypted signal is being transmitted.
Blinking: Non-HDCP encrypted signal is being transmitted.
Off: No signal is being transmitted.
5. SCALER LED
On: The Scaler function is enabled.
Off: The Scaler function is disabled.
6. Video
Video EDID DIP Switch. For more information, see EDID Management Section.
7. Audio
Audio EDID DIP Switch. For more information, see EDID Management Section.
8. Function
Function DIP Switch. For more information, see Function Setting Section.
2 3 4 5
Front
6 7
6
8
