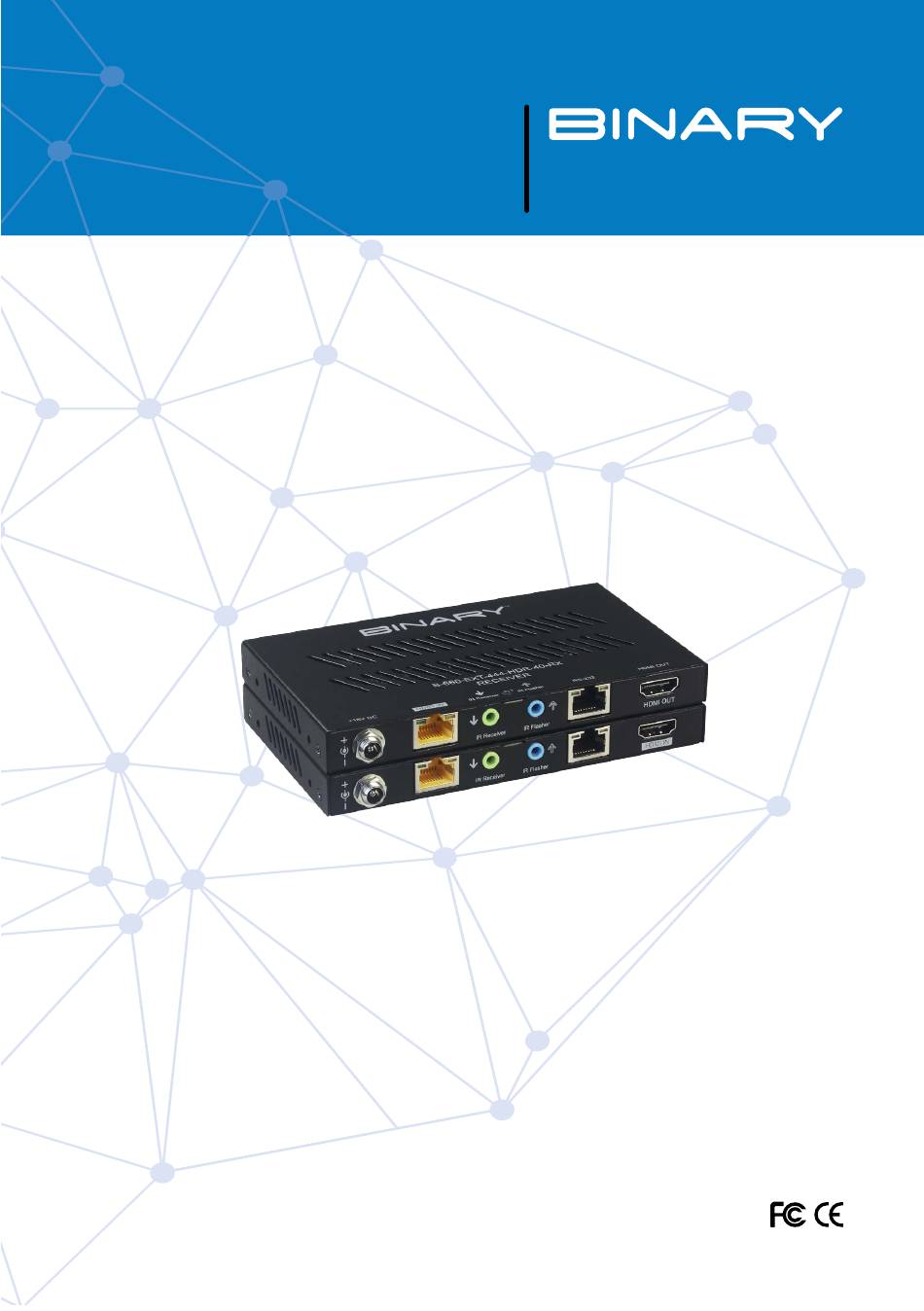

- Page 1 4K HDR HDBaseT Extender with IR & RS-232 B-660-EXT-444-40 INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 2. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
- Page 4 FCC WARNINGS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 5: Table Of Contents
CONTENTS Product Overview ..............................6 Features ..................................6 Package Contents ..............................6 Device Layout ................................7 Installation & Wiring ..............................11 5.1 Wiring ..................................11 EDID DIP Switch ................................13 Function DIP Switch ..............................14 RS-232 Passthrough ..............................15 Specifications ................................16 10. Transmission Distance .............................17 11. Warranty ..................................18 12. Support ..................................18... -
Page 6: Contents
PRODUCT OVERVIEW B-660-EXT-444-40 is a 4K HDMI extender with 4K@60Hz 4:4:4 8bit including DCI 4K (4096 x 2160), and HDCP 2.2 compatibility. It can transmit 1080P signals up to 60m/197ft and 4K@60Hz signals up to 35m/115ft via Cat 5e/6 cable, and transmit 1080P signals up to... -
Page 7: Device Layout

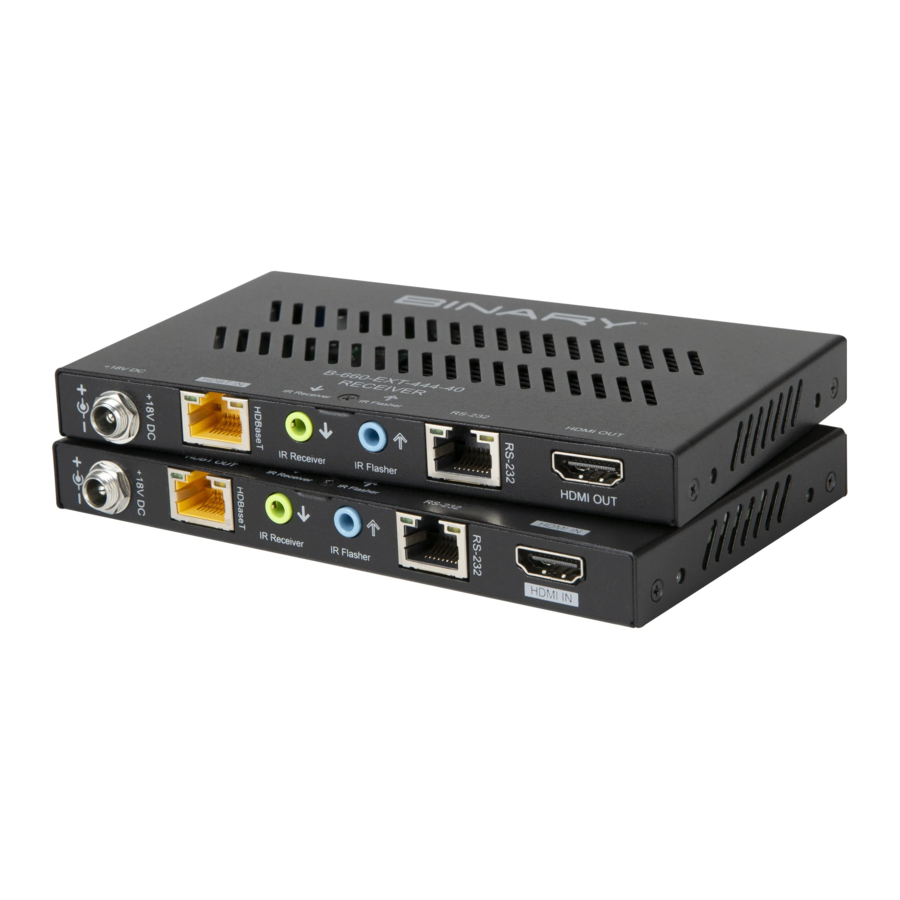

DEVICE LAYOUT 4.1. B-660-EXT-444-40 Transmitter FIGURE 1: Transmitter Layout 1. POWER LED On/Off: The transmitter is powered on/off. 2. STATUS LED Blinking: The transmitter is working properly. Off: The transmitter is not working properly. 3. LINK LED On: HDBT link is normal. - Page 8 4.2. B-660-EXT-444-40 Transmitter FIGURE 2: Transmitter Layout 1. +18V DC Connect the 18V power cord provided. 2. HDBT OUT Connect to the receiver via a Cat x cable. 3. IR Receiver Connect to an IR receiver cable. 4. IR Flasher Connect to an IR emitter cable.
- Page 9 4.3. B-660-EXT-444-40 Receiver FIGURE 3: Receiver Layout 1. POWER LED On/Off: The transmitter is powered on/off. 2. STATUS LED Blinking: The transmitter is working properly. Off: The transmitter is not working properly. 3. LINK LED On: HDBT link is normal.
- Page 10 4.4. B-660-EXT-444-40 Receiver FIGURE 4: Receiver Layout 1. +18V DC Connect the 18V power cord provided. 2. HDBT IN Connect to the transmitter via a Category cable. 3. IR Receiver Connect to an IR receiver cable. 4. IR Flasher Connect to an IR emitter cable.
-
Page 11: Installation & Wiring
INSTALLATION & WIRING Installation B-660-EXT-444-40 can be placed on a solid and stable surface or installed on a standard equipment rack. Steps to install the matrix on an equipment rack: 1. Attach the installation bracket to the enclosure using the screws provided in the package separately. - Page 12 • RS-232 Pass Through: Set pin2 of Function DIP Switch to select RS-232 connection mode, and ensure the Pin3 and Pin4 of Function DIP Switch are set to “0” position simultaneously (see “Function DIP Switch” Section), connect control devices such as PC to RS-232 ports of transmitter and receiver to realize RS-232 pass through (More information, see RS-232 Pass Through section).
-
Page 13: Edid Dip Switch
EDID DIP SWITCH EDID is configured by Video and Audio DIP Switch. The default setting is Auto, please referring to the following table to configure. Video DIP Switch Position EDID Resolution Auto (Default) 1080P SDR Down 1080P HDR Down 4K@30 SDR Down Down 4K@30 HDR... -
Page 14: Function Dip Switch
FUNCTION DIP SWITCH IR and RS-232 functions can be configured by Function DIP Switch. The default setting is “0000” (Up, Up, Up, Up), please refer to the following table to configure. 4-Pin Up:0, Down: 1 Function 0: IR 12V off; 1: IR 12V on 0: DTE (RS-232) 1: DCE (RS-232) -
Page 15: Rs-232 Passthrough
RS-232 PASSTHROUGH RS-232 ports can be used for bi-directional RS-232 signal pass through between the transmitter and receiver. Set pin2 of Function DIP Switch to “0” or “1” to select RS-232 connection mode (DTE or DCE), set pin3 and pin4 of Function DIP Switch to “00” (see Function DIP Switch section), connect RS-232 control devices (such as PC) to RS-232 ports of transmitter and receiver. -
Page 16: Specifications
SPECIFICATIONS Technical Transmitter: 1 x HDMI IN, 1 x HDBT OUT, 1 x IR Receiver, 1 x IR Flasher, 1 x RS-232 (RJ45), 1 x DC 18V IN Input/Output Port Receiver: 1 x HDMI OUT, 1 x HDBT IN, 1 x IR Receiver, 1 x IR Flasher, 1 x RS-232 (RJ45), 1 x DC 18V IN HDMI with 4K@60Hz YUV 4:4:4, HDCP 2.2,... -
Page 17: Transmission Distance
General 142mm x 15.4mm x 85mm/5.59” x 0.61” x Device Dimension 3.35” (W x H x D) (Without mounting brackets) Product Weight 0.32kg/0.71lb 9.1 Transmission Distance Note: Straight-through category cable wired to T568B standard is recommended. Cable Type Range Supported Video Cat 5e/6 60m/200ft Up to 1080P@60Hz 36bpp... -
Page 18: Warranty
10. WARRANTY Find details of the product’s Limited Warranty and other safety, patent, and legal resources at snapone.com/legal or request a paper copy from Customer Service at 866.424.4489. 11. SUPPORT For chat and telephone, visit tech.control4.com/s/contactsupport • Email: TechSupport@SnapOne.com • Visit tech.control4.com for discussions, instructional videos, news, and more. - Page 20 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Araknis Networks, BakPak, Binary, Dragonfly, Episode, Luma, Mockupancy, Nearus, NEEO, Optiview, OvrC, Pakedge, Sense, Strong, Strong Evolve, Strong VersaBox, SunBriteDS, SunBriteTV, Triad, Truvision, Visualint, WattBox, Wirepath, and Wirepath ONE are also registered trademarks or trademarks of Snap One, LLC.
