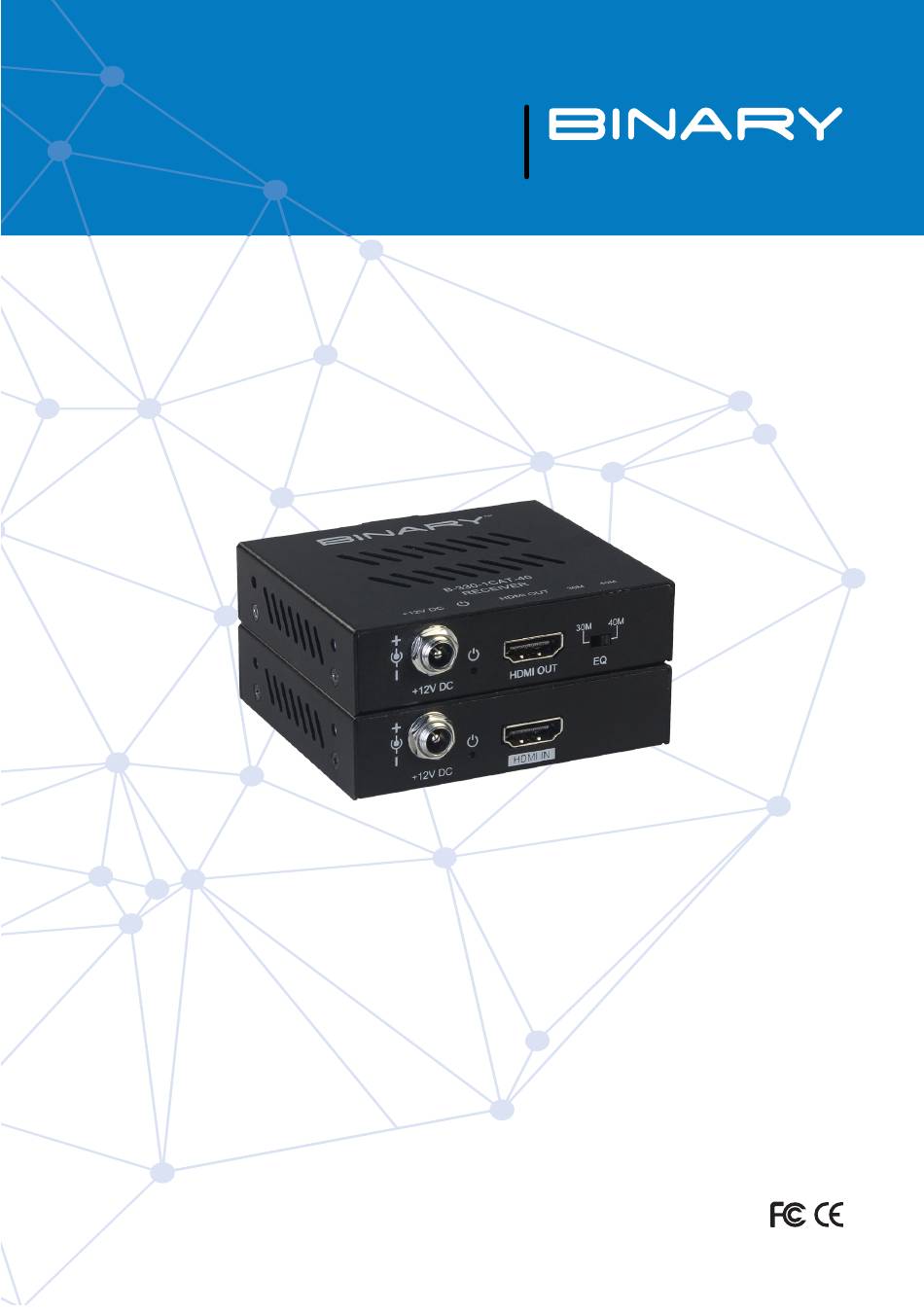

- Page 1 Binary 330 Series 1080p Econom y Extender with IR B-330-1CAT-40 INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not e xpose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
- Page 4 FCC WARNINGS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro v ide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 5: Table Of Contents
CONTENTS Product Overview ................................. Features ..................................... Package Content ................................Device Layout .................................. 4.1. B-330-1CAT-40 Transmitter .......................... 4.2. B-330-1CAT-40 Receiver ..........................Application Diagram ..............................Specification ................................6.1. Transmission Distance ........................... Warranty ..................................Support ................................... -
Page 6: Product Overview
PRODUCT OVERVIEW Thank you for purchasing this product. F or proper installation and optimum performance, please read the instructions in this manual carefully. B-330-1CAT-40 is a 1080P HDMI extender set. It can extend uncompressed 1080P@60Hz video and 2ch audio signal up to 40m/131ft along a Cat 5e/6/6a/7 cable. It also supports one- way IR pass-through and PoC. -
Page 7: Device Layout
DEVICE LAYOUT 4.1. B-330-1CAT-40 Transmitter 1. +12V DC Connect to the power adapter provided. Note: When the power adapter is connected to transmitter, the UTP link sends power to receiver. Only one power adapter is needed at transmitter to power both units. 2. -
Page 8: B-330-1Cat-40 Receiver
4.2. B-330-1CAT-40 Receiver 1. +12V DC Connect to the power adapter provided. Note: When the power adapter is connected to transmitter, the UTP link sends power to receiver. Only one power adapter is needed at transmitter to power both units. 2. -
Page 9: Application Diagram
APPLICATION DIAGRAM Blu-ray Player IR Emitter HDMI IN Transmitter IR Receiver Receiver Blu-ray Player Remote HDMI OUT Display Note: Connect a broadband IR receiver to IR Receiver port and an IR emitter to IR Flasher port. -
Page 11: Warranty
WARRANTY Find details of the product’s Limited Warranty and other safety, patent, and legal resources at snapone.com/legal or request a paper copy from Customer Service at 866.424.4489 SUPPORT For chat and telephone, visit tech.control4.com/s/contactsupport • Email: TechSupport@SnapOne.com • Visit tech.control4.com for discussions, instructional videos, news, and more. - Page 12 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Araknis Networks, BakPak, Binary, Dragonfly, Episode, Luma, Mockupancy, Nearus, NEEO, Optiview, OvrC, Pakedge, Sense, Strong, Strong Evolve, Strong VersaBox, SunBriteDS, SunBriteTV, Triad, Truvision, Visualint, WattBox, Wirepath, and Wirepath ONE are also registered trademarks or trademarks of Snap One, LLC.
