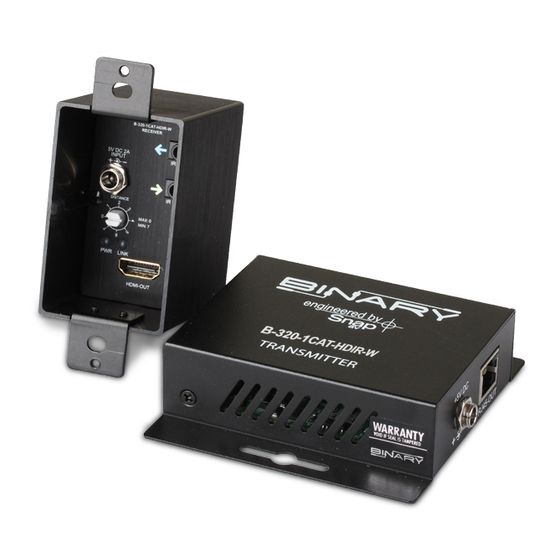

Single cat5e/6 3d extender
Hide thumbs
Table of Contents

Advertisement

Quick Links

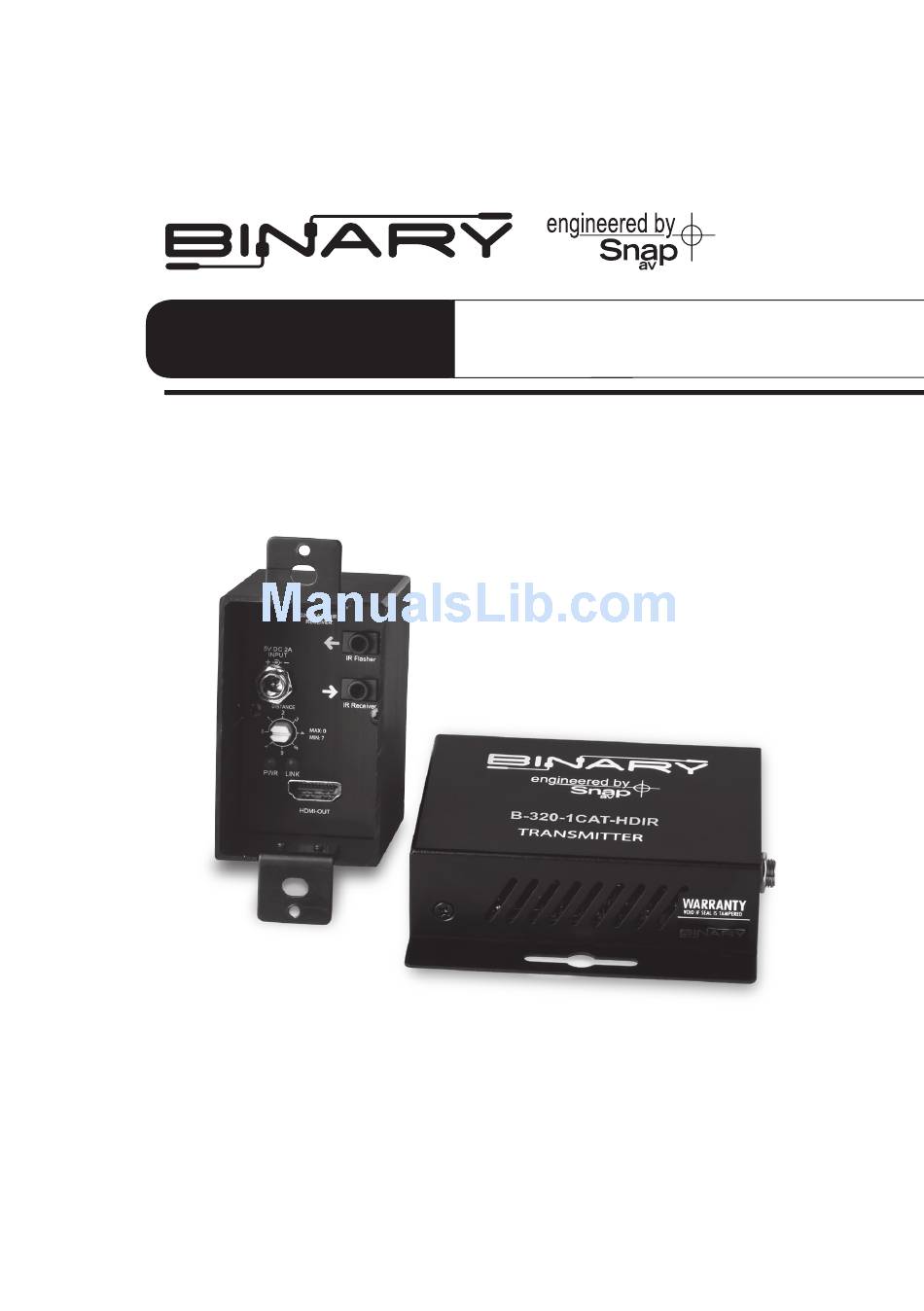

OWNER'S MANUAL
SINGLE CAT5E/6 3D EXTENDER
B-320-1CAT-HDIR-W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-320-1CAT-HDIR-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Binary B-320-1CAT-HDIR-W

Summary of Contents for Binary B-320-1CAT-HDIR-W

  • Page 1 OWNER’S MANUAL SINGLE CAT5E/6 3D EXTENDER B-320-1CAT-HDIR-W...
  • Page 2 B-320-1CAT-HDIR-W Installation and Users Manual pg.2...
  • Page 3 B-320-1CAT-HDIR-W Installation and Users Manual IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 1. Read and follow all instructions and warnings in this manual. Keep for future reference.

  • Page 4: Table Of Contents

    B-320-1CAT-HDIR-W Installation and Users Manual TABLE OF CONTENTS 1. Overview ......................... 5 2. Package Contents ......................5 3. Features .......................... 6 4. Connections and Controls ..................... 7 4.1. Transmitter Connections and Controls ..................7 4.2. Receiver Connections and Controls ....................8 5. Basic Connections ......................9 5.1.

  • Page 5: Overview

    The B-320-1CAT-HDIR-W also supports the most advanced 3D video format, which is compliant with HDMI 3D specifications, and guarantees the highest 3D video compatibility on the market.

  • Page 6: Features

    B-320-1CAT-HDIR-W Installation and Users Manual 3. FEATURES Form and Function • In Wall Receiver (single gang box) Design for Easy Installation • Extends HDMI Signals via a Single Cat5e/Cat6 Resolution Cat5e Cat6e 1080i / 720p 24-bit color 200ft 200ft Full HD 1080P 24-bit color...

  • Page 7: Connections And Controls

    B-320-1CAT-HDIR-W Installation and Users Manual 4. CONNECTIONS AND CONTROLS 4.1. Transmitter Connections and Controls 1. EDID Mode Setting 7 position rotary switch that provides selection of 6 pre-configured EDIDs and learning. See section: 6.3 EDID Configuration. 2. HDMI In from Source (HDMI) Connect an HDMI cable to the HDMI output of the source component.

  • Page 8: Receiver Connections And Controls

    B-320-1CAT-HDIR-W Installation and Users Manual 4.2. Receiver Connections and Controls 1. Optional Remote Power (2 Conductor removable) Optional connection for power from a remote power source; this connection requires a wire run within the wall. Use only when the Latch-Locking Power Jack (3) is not being used. Do not connect both power sources.

  • Page 9: Basic Connections

    B-320-1CAT-HDIR-W Installation and Users Manual 5. BASIC CONNECTIONS HDMI Source PLAY AC Power B-320-1CAT-HDIR-W Shielded Cat5e/Cat6 Transmitter B-320-1CAT-HDIR-W HDTV Receiver HDMI (1meter or less) AC Power 5.1. HD Link (RJ45) Connections Recommended Cabling • Shielded Cat5e/Cat6 Connection Precautions! • The transmission distance is subject to the quality of installed cables, source device, and display.

  • Page 10: Ir Control Connections

    Bi-directional IR signals are transmitted between the B-320-1CAT-HDIR-W transmitter and receiver over the Cat5e/6 cable. Each B-320-1CAT-HDIR-W will need an IR Receiver to send IR to the source, and an IR flasher to use IR sent from the IR Controller (sold separately).

  • Page 11: Ir Receiver In (3.5Mm {1/8"} Stereo) Connections

    B-320-1CAT-HDIR-W Installation and Users Manual 5.2.1. IR Receiver In (3.5mm {1/8”} Stereo) Connections (B-320-1CAT-HDIR-W Receiver Only) 9V DC (Sleeve) IR Signal GND (Ring) GND (Ground) Ring IR Signal (Tip) +9V DC Sleeve When connecting a control system or connecting block to the IR Receiver In on the Receiver, the 9V DC (Sleeve) must not be connected.

  • Page 12: Optional Remote Power (2 Conductor) Connections

    5.4. Optional Remote Power (2 Conductor) Connections (B-320-1CAT-HDIR-W Receiver Only) Power for the B-320-1CAT-HDIR-W receiver can be supplied via a remote power source when use of the Latch-Locking Power Jack is not desired. The connection is a 2 conductor removable plug located on the rear of the B-320-1CAT-HDIR-W receiver.

  • Page 13: Installation

    B-320-1CAT-HDIR-W Installation and Users Manual 6. INSTALLATION Note: Do Not connect power to the B-320-1CAT-HDIR-W until all other connections are made and the unit is installed. 6.1. B-320-1CAT-HDIR-W Transmitter Installation 1. Run the cabling in the wall to the location for the B-320-1CAT-HDIR-W:...

  • Page 14: Edid Configuration

    B-320-1CAT-HDIR-W Installation and Users Manual 6.3. EDID Configuration 6.3.1. EDID Mode Settings EDID Setting Supported Resolutions Color Depth Audio Channels 1080p @60Hz 24-Bit 7.1 ch 1080p @60Hz 24-Bit 2 ch 1080p @60Hz 36-Bit 7.1 ch 1080p @60Hz 24-Bit 3D 7.1 ch...

  • Page 15: Specifications

    B-320-1CAT-HDIR-W Installation and Users Manual 7. SPECIFICATIONS Technical Transmitter Receiver HDMI Compliance HDMI 3D HDCP Compliance Video Bandwidth 6.75Gbps Video Support 480i / 480p / 720p / 1080i / 1080p60 HDMI over UTP Transmission Resolution Cat5e Cat6 1080i / 720p 24-bit color...

  • Page 16: Warranty

    8. WARRANTY 2-Year Limited Warranty This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
