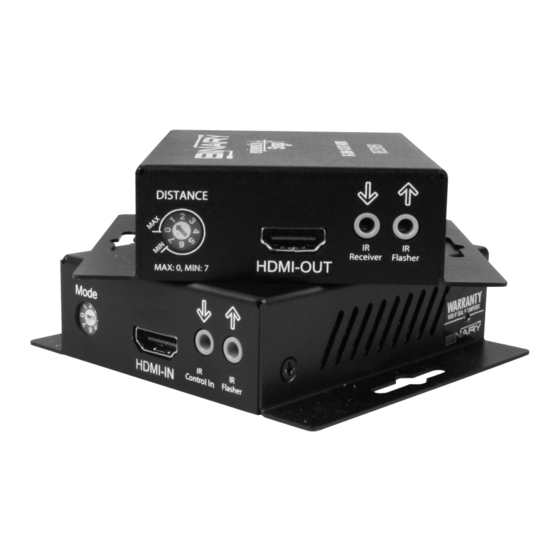

Binary B-320-1CAT-HDIR Owner's Manual

Single cat5e/6 3d extender
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
SINGLE CAT5E/6 3D EXTENDER
B-320-1CAT-HDIR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-320-1CAT-HDIR and is the answer not in the manual?

Questions and answers

Related Manuals for Binary B-320-1CAT-HDIR

Summary of Contents for Binary B-320-1CAT-HDIR

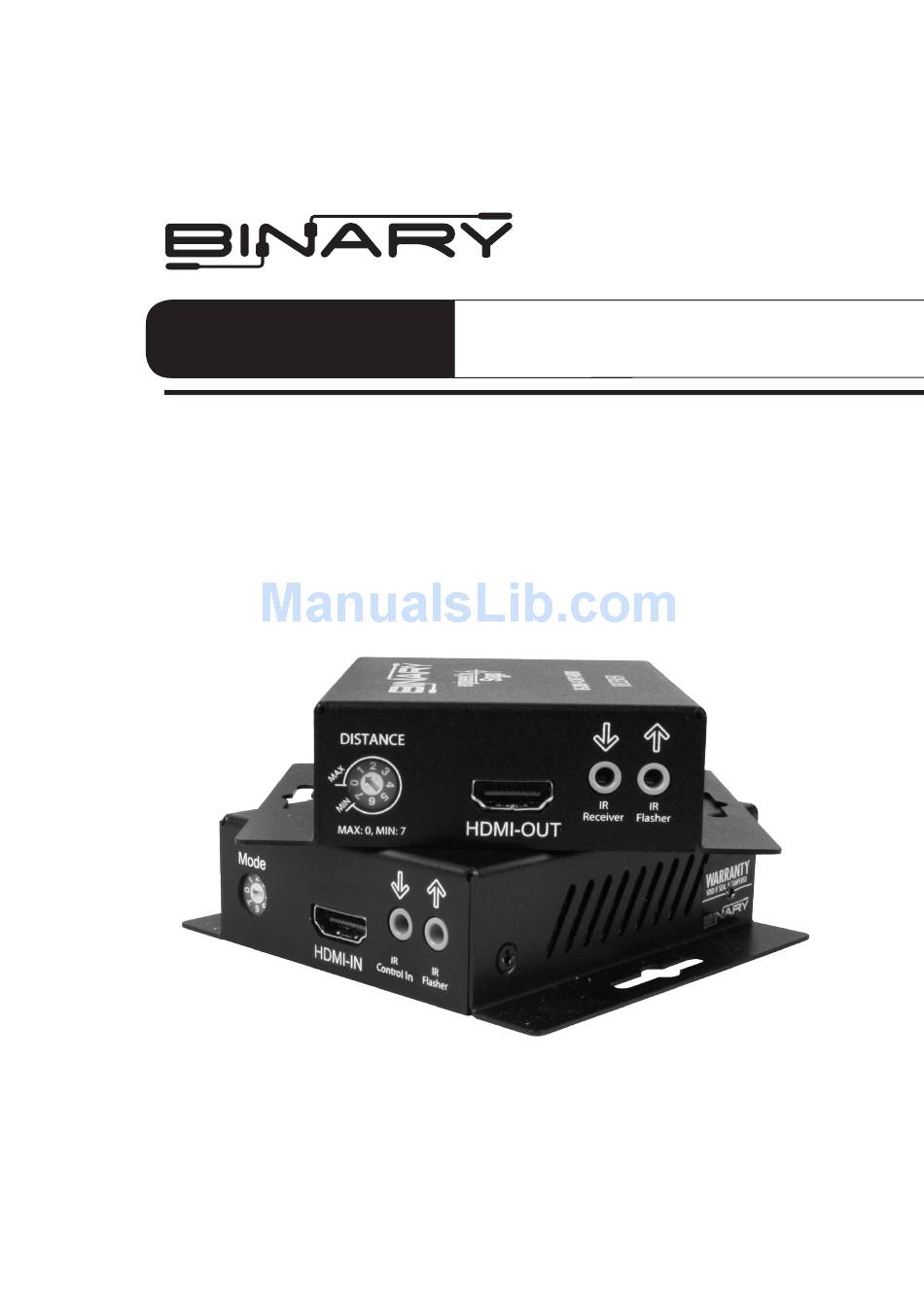

  • Page 1 OWNER’S MANUAL SINGLE CAT5E/6 3D EXTENDER B-320-1CAT-HDIR...
  • Page 2 B-320-1CAT-HDIR Installation and Users Manual IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 1. Read and follow all instructions and warnings in this manual. Keep for future reference.

  • Page 3: Table Of Contents

    B-320-1CAT-HDIR Installation and Users Manual TABLE OF CONTENTS 1. Overview ......................4 2. Package Contents .................... 4 3. Features ......................5 4. Connections and Controls ................6 4.1. Transmitter Connections and Controls ................6 4.2. Receiver Connections and Controls ................7 5. Basic Connections .................... 8 5.1.

  • Page 4: Overview

    B-320-1CAT-HDIR Installation and Users Manual 1. OVERVIEW The B-320-1CAT-HDIR extends HDMI over single Cat5e/6 providing video and audio transmission to remote displays. In addition, the B-320-1CAT-HDIR is equipped with bi-directional IR pass-through allowing users to have bi-directional IR control with no additional wires.

  • Page 5: Features

    B-320-1CAT-HDIR Installation and Users Manual 3. FEATURES Form and Function • Extends HDMI Signals via a Single Cat5e/Cat6 Resolution Cat5e Cat6e 1080i / 720p 24-bit color 200ft 200ft Full HD 1080P 24-bit color 130ft 165ft Full HD 1080P 36-bit deep color...

  • Page 6: Connections And Controls

    B-320-1CAT-HDIR Installation and Users Manual 4. CONNECTIONS AND CONTROLS 4.1. Transmitter Connections and Controls 1. EDID Mode Setting 7 position rotary switch that provides selection of 6 pre-configured EDIDs and learning. See section: 6.3 EDID Configuration. 2. HDMI In from Source (HDMI) Connect an HDMI cable to the HDMI output of the source component.

  • Page 7: Receiver Connections And Controls

    B-320-1CAT-HDIR Installation and Users Manual 4.2. Receiver Connections and Controls RJ45-IN 1. Distance Control 8 position rotary switch that provides equalization control to prevent over or under loading the HD signal. See Distance Calibration for more details. 2. HDMI Out to Display (HDMI) Connect an HDMI cable to the HDMI output of the source component.

  • Page 8: Basic Connections

    B-320-1CAT-HDIR Installation and Users Manual 5. BASIC CONNECTIONS IR Processor / Controller HDMI Source IR Outputs IR Inputs PLAY B-320-1CAT-HDIR AC Power Transmitter Shielded Cat5e/Cat6 B-320-1CAT-HDIR Receiver RJ45-IN AC Power HDMI (1meter or less) HDTV 5.1. HD Link (RJ45) Connections Recommended Cabling •...

  • Page 9: Ir Control Connections

    B-320-1CAT-HDIR Installation and Users Manual 5.2. IR Control Connections Bi-directional IR signals are transmitted between the B-320-1CAT-HDIR Transmitter and Receiver over the Cat5e/6 cable. How the IR connections function varies on the Transmitter and Receiver based on the common use cases for sending and receiving IR.

  • Page 10: Ir Control In- Transmitter Only

    B-320-1CAT-HDIR Installation and Users Manual 5.2.1 IR Control In- Transmitter Only The most common use of the IR Control In port is to send a wired IR signal from an Automation System to an IR Flasher connected to the Receiver. This connection does not include power for an IR Receiver.

  • Page 11: Ir Flasher Out - Transmitter And Receiver

    B-320-1CAT-HDIR Installation and Users Manual 5.2.1 IR Flasher - Transmitter and Receiver Connection Type: 3.5mm {1/8”} Mono GND (Sleeve) IR Signal IR Signal (Tip) GND (Ground) Ring 5.3 HDMI Out to Display (HDMI) Recommended Cabling • 1 meter or shorter HDMI Cable pg.11...

  • Page 12: Installation

    If EDID learning is required, the EDID from the display MUST be learned prior to installing the Transmitter. See section 6.3.2. Learning EDIDs 1. Run the cabling in the wall to the location for the B-320-1CAT-HDIR: HD Link Cable: Shielded Cat5e/Cat6 2.

  • Page 13: Edid Configuration

    B-320-1CAT-HDIR Installation and Users Manual 6.3. EDID Configuration 6.3.1. EDID Mode Settings EDID Setting Supported Resolutions Color Depth Audio Channels 1080p @60Hz 24-Bit 7.1 ch 1080p @60Hz 24-Bit 2 ch 1080p @60Hz 36-Bit 7.1 ch 1080p @60Hz 24-Bit 3D 7.1 ch...

  • Page 14: Distance Calibration

    B-320-1CAT-HDIR Installation and Users Manual 6.4. Distance Calibration CAUTION: Inappropriate signal level setting may cause an overpowering issue that may shorten the product life. Follow the steps below to adjust the distance setting in order to avoid overdriving. 1. Set the distance control to 7 (Weakest).

  • Page 15: Specifications

    B-320-1CAT-HDIR Installation and Users Manual 7. SPECIFICATIONS Technical Transmitter Receiver HDMI Compliance HDMI 3D HDCP Compliance Video Bandwidth 6.75 Gbps Video Support 480i / 480p / 720p / 1080i / 1080p60 HDMI over UTP Resolution Cat5e Cat6 Transmission 180i / 720p 24-bit color...

  • Page 16: Warranty

    8. WARRANTY 2-Year Limited Warranty This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled.
