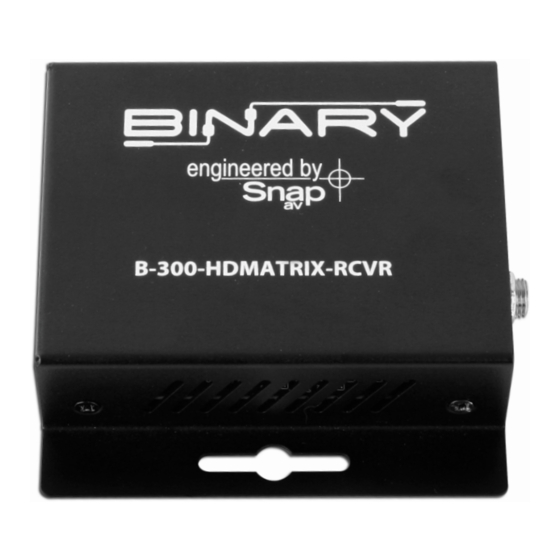

- Page 1 BINARY SINGLE CAT 5E/6 HDMI 1.4 OWNER’S MANUAL EXTENDER FOR USE WITH B-300 HDMATRIX SERIES SWITCHERS B-300-HDMATRIX-RCVR...
-
Page 2: Important Safety Instructions
REFER SERVICING TO QUALIFIED literature accompanying the appliance. SERVICE PERSONNEL. OVERVIEW The B-300-HDMATRIX-RCVR extends HDMI from a B-300-HDMATRIX series switcher over single Cat5e/6 130 feet at 1080P60 24Bit color,t including all HDMI 1.4a 3D formats. PACKAGE CONTENTS • (1) B-300-HDMATRIX-RCVR •... - Page 3 B-300-HDMATRIX-RCVR Installation and Users Manual FEATURES • Support for HDMI 1.4a 3D formats • Extends the transmission up to 200 ft. from the HDMI source at HD 1080i or 720p 24-Bit • Extends the transmission up to 130 ft. from the HDMI source at Full HD 1080p 24-Bit •...
-
Page 4: Basic Connections
B-300-HDMATRIX-RCVR Installation and Users Manual BASIC CONNECTIONS B-300-HDMATRIX-4x4 Cat5e/Cat6 (Shielded Recommended) IR Receiver B-300-HDMATRIX-RCVR HDTV HDMI cable (1m max length) IMPORTANT CONNECTION NOTES! • CAUTION: The IR Receiver 3.5mm jack provides 12V power for IR receivers that can damage flashers and control systems. -
Page 5: Ir Pass-Through
B-300-HDMATRIX-RCVR Installation and Users Manual IR PASS-THROUGH Bi-directional IR signals are also transmitted between the B-300-HDMATRIX-RCVR and the B-300- HDMATRIX-4x4 or B-300-HDMATRIX-8x8 switchers over the Cat5e/6 cable. Each B-300-HDMATRIX-RCVR will need an IR Receiver to send IR from the RCVR to the switch, and an IR flasher to use IR sent from the switch to the RCVR (sold separately). -
Page 6: Installation
4. Connect a Cat5e/6 cable between the units. 5. Connect the 5V 4A DC power supply unit to the power jack of the B-300-HDMATRIX-RCVR. 6. Adjust the Distance setting on the B-300-HDMATRIX-RCVR as described above in Distance Control. pg.6... -
Page 7: Specifications
B-300-HDMATRIX-RCVR Installation and Users Manual SPECIFICATIONS Technical HDMI Compliance Full HD 1080P60, Deep Color (36bit), 3D (1.4a) HDCP Compliance Video Bandwidth Single-link 225MHz (6.75Gbps) Video Support 1080p / 1080i / 720p /480p / 480i up to 36-bit color HDMI over UTP Transmission... - Page 8 © 2011 Binary 111215...
