OWNER'S MANUAL
HDBaseT EXTENDER
B-500-EXT-330-RS-IP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-500-EXT-330-RS-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Binary B-500-EXT-330-RS-IP

Summary of Contents for Binary B-500-EXT-330-RS-IP

  • Page 1 OWNER’S MANUAL HDBaseT EXTENDER B-500-EXT-330-RS-IP...
  • Page 2 B-500-EXT-330-RS-IP Installation and Users Manual IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 1. Read and follow all instructions and warnings in this manual. Keep for future reference.

  • Page 3: Table Of Contents

    B-500-EXT-330-RS-IP Installation and Users Manual TABLE OF CONTENTS 1. Overview ......................... 4 2. Package Contents ......................4 3. Features .......................... 5 4. Connections and Controls ..................... 6 4.1. B-500-EXT-330-RS-IP Transmitter ....................6 4.2. B-500-EXT-330-RS-IP Receiver ......................7 5. Basic Connections ......................8 5.1.

  • Page 4: Overview

    1. OVERVIEW The B-500-EXT-330-RS-IP extends HDMI over single Cat5e/6 using HDBaseT® technology, allowing video and audio transmission to remote displays. In addition, the B-500-EXT-330-RS-IP is equipped with bi-directional IR pass-through, bi-directional RS-232 pass-through, and bi- directional Ethernet, all over a single Cat5e/6 cable.

  • Page 5: Features

    B-500-EXT-330-RS-IP Installation and Users Manual 3. FEATURES Form and Function • Wall-Mountable Housing Design for Easy Installation • Extends all HDMI formats up to 4Kx2K via a Single cable Cat5e Up to 330ft Cat6/Cat6a Up to 330ft • Transmits HDMI Signal via HDBaseT up to 10.2Gbps •...

  • Page 6: Connections And Controls

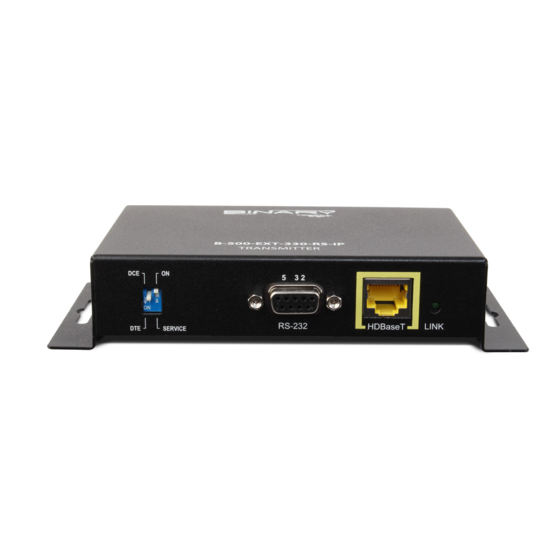

    B-500-EXT-330-RS-IP Installation and Users Manual 4. CONNECTIONS AND CONTROLS 4.1. B-500-EXT-330-RS-IP Transmitter +24V DC 1A INPUT HDMI IN ETHERNET HDBaseT HDBaseT SERVICE SERVICE RS-232 LINK RS-232 LINK 1. IR Control In (3.5mm {1/8”} Mono) 6. Latch-Locking Power Jack Connect the IR output of an Automation...

  • Page 7: B-500-Ext-330-Rs-Ip Receiver

    B-500-EXT-330-RS-IP Installation and Users Manual 4.2. B-500-EXT-330-RS-IP Receiver +24V DC 1A INPUT HDBaseT HDBaseT SERVICE SERVICE RS-232 RS-232 LINK LINK HDMI OUT ETHERNET 1. IR Receiver In (3.5mm {1/8”} Mono) 7. RS232 Operation Mode Dip Switches Connect an IR Receiver to send IR signals to Switch 1: Configures RS232 DB9 connection the Transmitter from the remote location.

  • Page 8: Basic Connections

    5.1. HDBaseT Link (RJ45) Connection Connection Precautions! The B-500-EXT-330-RS-IP is specified to operate with Cat5e/Cat6/Cat6a cables for communication between the Transmitter and Receiver. The transmission path may include Keystones and Patch Cables as long as the total length does not exceed 330ft for Cat5e/Cat6/Cat6a.

  • Page 9: Ir Control Connections

    Cat5e/Cat6/Cat6a (RJ45)-See Section 5.1 Connection Precautions! • Before connecting an IR Receiver or an IR Automation System, verify that the B-500-EXT-330-RS-IP is OFF to avoid damaging the unit. • The IR Receiver In (3.5mm {1/8”} Stereo) on the Receiver provides 9V power to power IR Receivers.

  • Page 10: Ir Control In (3.5Mm {1/8"} Mono) - Transmitter Only

    B-500-EXT-330-RS-IP Installation and Users Manual 5.2.1. IR Control In (3.5mm {1/8”} Mono) – Transmitter Only The most common use of the IR Control In port is to send a wired IR signal from an Automation System to an IR Flasher connected to the Receiver. This connection does not include power for an IR Receiver.

  • Page 11: Ir Flasher Out (3.5Mm {1/8"} Mono) - Transmitter And Receiver

    GND (Gro und) Ring 5.3. RS232 Control Connections Bi-directional RS232 signals are transmitted between the B-500-EXT-330-RS-IP Transmitter and Receiver over the Cat5e/6 cable. The Transmitter may be connected to an Automation System controller and the Receiver connected to an RS232 controllable device.

  • Page 12: Ethernet (Rj45) Connections

    As new source and display devices become available, it may be necessary to modify the firmware in the B-500-EXT-330-RS-IP. To perform firmware updates, the dipswitches must be set to DTE (Down) and Service (Down). Detailed instructions and updated firmware will be posted to www.

  • Page 13: Hdmi Out To Display (Hdmi)

    5.5. HDMI Out to Display (HDMI) Connection Precautions! We recommend using a 1 meter or shorter HDMI cable to connect the B-500-EXT-330-RS-IP to the display; this will ensure the highest quality image on the display. 5.6. Latch Locking Power Supply With Power Over Cable (POC), power is not required at both ends of the installation.

  • Page 14: Specifications

    B-500-EXT-330-RS-IP Installation and Users Manual 7. SPECIFICATIONS Technical Transmitter Receiver HDMI Compliance HDMI 3D HDCP Compliance Video Bandwidth 10.2Gbps HDMI over UTP Transmission Resolution Cat5e Cat6/Cat6a 1080i / 720p 330ft 330ft 24-bit color Full HD 1080P 330ft 330ft 24-bit color...

  • Page 15: Warranty

    8. WARRANTY 2-Year Limited Warranty This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
  • Page 16 © 2012 Binary™ 121029-1120...
