4. DEVICE LAYOUT

4.1. B-520-EXT-330-RS-IP Transmitter

A B
Back of Transmitter
A. Thread-locking Power Connector
Connect to the included 12V DC, 2A power supply
B. Power LED
Lights up blue when the unit has power
C. HDMI Out
HDMI Output to connect to the HDMI input of a sink(display)
D. HDMI IN
HDMI Input to connect to the HDMI output of a source
E. IR Flasher
IR output to connect to IR Flasher
F. IR Receiver
IR input to connect to IR Receiver or to output of a control system
G. IR Flasher level
Adjusts the intensity of the IR Flasher output
H. Ethernet (RJ45)
To communicate IP data between Transmitter and Receiver
I. DIP Switches
IR RCVR PWR OFF/ON
OFF to connect to control system | ON to connect to IR Receiver
DCE/DTE
To select if serial (RS232) communication via DB-9 is in DTE or DCE mode
LINK/SERVICE DIP
LINK for passthrough (normal) operation | SERVICE for firmware operation
AUTO EDID/HDBT EDID
AUTO to set EDID to lowest common resolution | HDBT to set EDID to resolution of sink at
other end
J. RS-232
To communicate RS-232 command with the receiver when connected to a control system
K. HDBaseT (RJ45)
To connect to the HDBaseT RJ45 port on receiver
L. Link LED
Lights up green when synced with receiver
M. Update (mini USB port)
To connect mini USB cable when updating firmware
C D E F G H
Ethernet

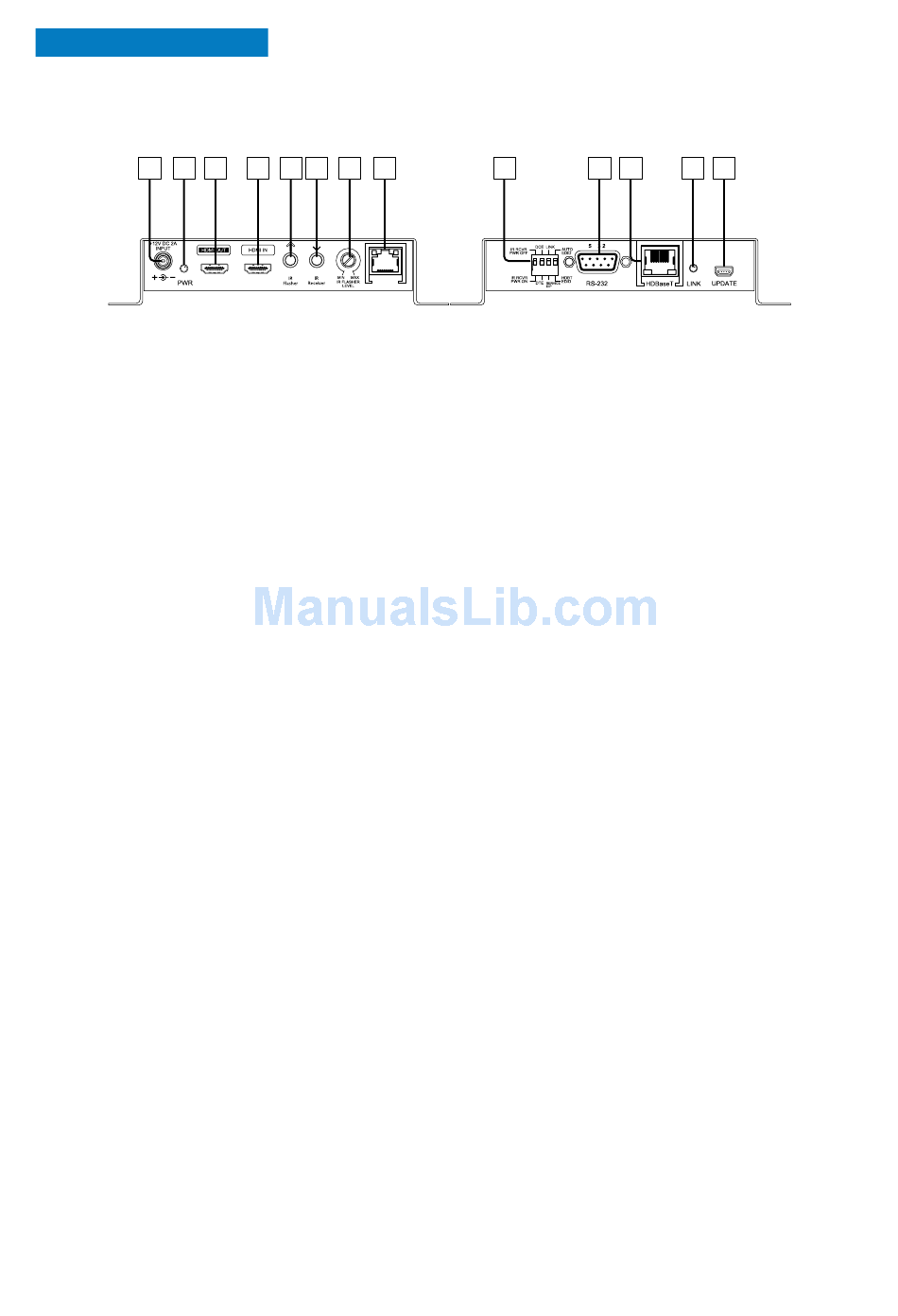

FIGURE 1: Transmitter Layout
I J K
1 2 3 4
ON
Front of Transmitter
5
L M
