Binary B-660-EXT-444-100A Installation Manual page 7

4k hdr hdbaset extender with ir, rs-232, ethernet, & audio breakout
Table of Contents

Advertisement

1
2
1. +12V DC
Connect the 12V power cord provided.
2. HDBT OUT
Connect to the receiver via a Cat x cable.
3. IR Receiver
Connect to an IR receiver cable.
4. IR Flasher
Connect to an IR emitter cable.
5. RS-232
RJ45 port. Connect to a RS-232 control device for RS-232 pass through/ firmware upgrade.
6. HDMI IN
Connect to an HDMI source device.
7. AUDIO OUT
3.5mm analog audio out, HDMI IN audio de-embedding. Connect to an audio system such
as amplifier.
8. SPDIF OUT
HDMI IN audio de-embedding, digital audio out. Connect to an audio system such as AV
receiver.
9. Network 1&2
Connect to ethernet devices or to the network.

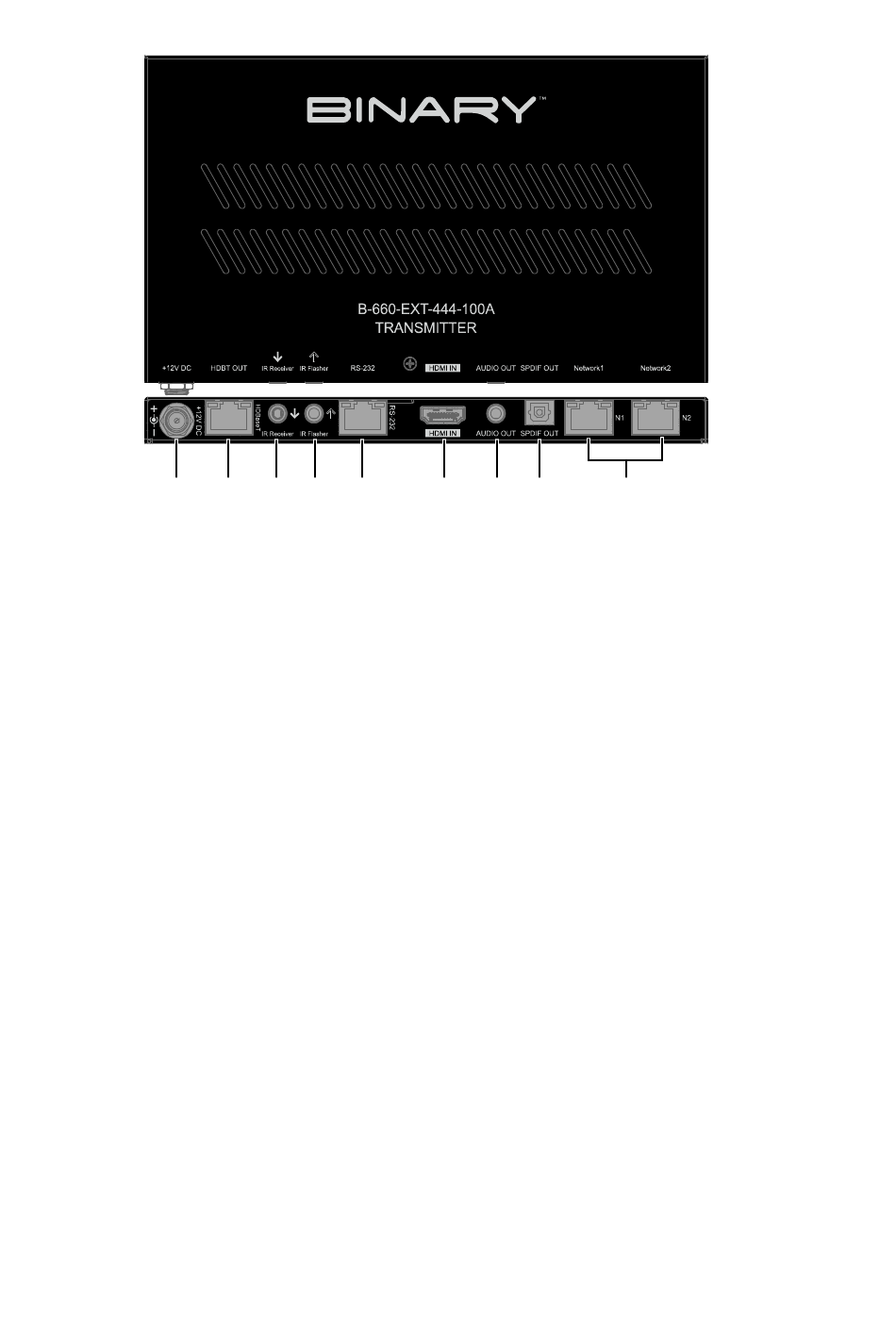

Rear Panel
3
4
5
6
7
7
8
9
