Summary of Contents for Binary B-540-EXT-230-RS

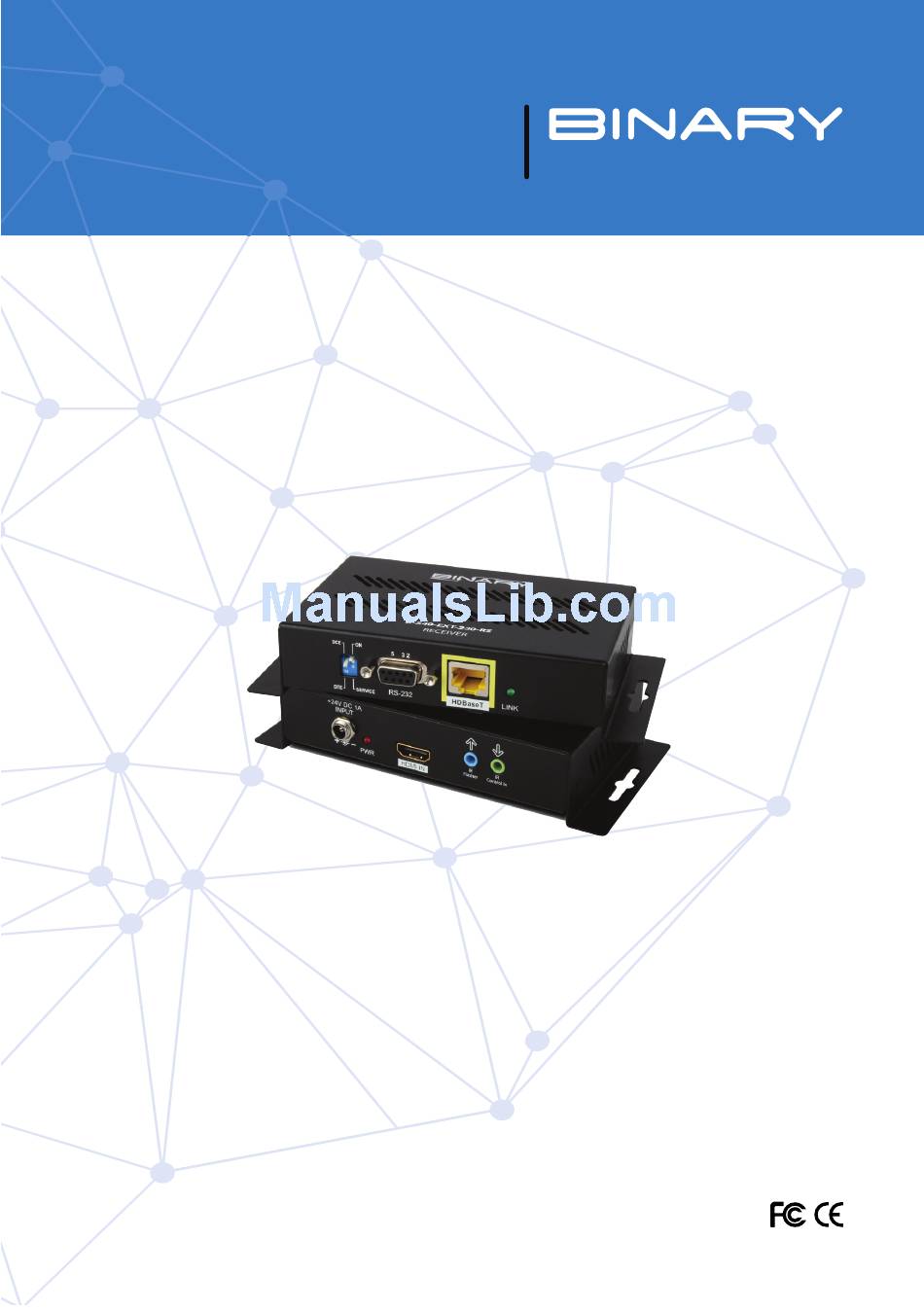

- Page 1 HDBaseT EXTENDER B-540-EXT-230-RS INSTALLATION MANUAL Source | M (HDMI Ou...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment. -
Page 3: Table Of Contents
4.1. B-540-EXT-230-RS Transmitter ........................5 4.2. B-540-EXT-230-RS Receiver ........................6 5. Installation ..................................7 5.1. B-540-EXT-230-RS Transmitter Installation..................7 5.2. B-540-EXT-230-RS Receiver Installation ....................7 6. Applications ..................................8 6.1. HDBaseT Link (RJ45) Connection ......................8 6.2. IR Control Connections ..........................9 6.2.1. Point-to-Point IR Receiver - Stereo (3.5mm) Receiver Only ..........10 6.2.2. -
Page 4: Product Overview
1. PRODUCT OVERVIEW Welcome to Binary. This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. This device extends HDMI over a single category cable using HDBaseT technology allowing video and audio transmission to remote displays. -
Page 5: Device Layout
4. DEVICE LAYOUT 4.1. B-540-EXT-230-RS Transmitter +24V DC 1A INPUT HDMI IN Control In SERVICE SERVICE RS-232 RS-232 HDBaseT HDBaseT LINK LINK FIGURE 1: Transmitter Layout A. Thread-locking Power Connector Connect the included 24VDC,1A power supply B. Power LED Lights blue when the unit has power C. -
Page 6: B-540-Ext-230-Rs Receiver
4.2. B-540-EXT-230-RS Receiver +24V DC 1A INPUT HDMI OUT SERVICE RS-232 HDBaseT LINK SERVICE RS-232 HDBaseT LINK FIGURE 2: Receiver Layout A. Thread-locking Power Connector Connect to the included 24VDC,1A power Supply B. Power LED Lights up blue when the unit has power C. -
Page 7: Installation
CAUTION: Do not connect power to the device until all other connections are made and the unit is installed. 5.1. B-540-EXT-230-RS Transmitter Installation 1. Run category cable from the location of the transmitter to the remote location of the receiver. -
Page 8: Applications
6. APPLICATIONS HDMI Source PLAY Power B-540-EXT-230-RS Transmitter +24V DC 1A INPUT HDMI IN Control In SERVICE SERVICE RS-232 RS-232 HDBaseT HDBaseT LINK LINK Back Front +24V DC 1A INPUT HDMI OUT SERVICE RS-232 HDBaseT LINK SERVICE RS-232 HDBaseT LINK... -
Page 9: Ir Control Connections
HDMI Source IR Processor/ Controller PLAY IR Inputs IR Outputs B-540-EXT-230-RS Transmitter HDBaseT +24V DC 1A INPUT HDMI IN Control In SERVICE RS-232... -
Page 10: Point-To-Point Ir Receiver - Stereo (3.5Mm) Receiver Only
6.2.1. Point-to-Point IR Receiver - Stereo (3.5mm) Receiver Only The IR Receiver port is used to send an IR signal from a +9V DC powered IR Receiver to an IR Flasher connected to the Transmitter. Use a 3.5mm {1/8”} Stereo Cable to connect directly to an IR Receiver. -
Page 11: Rs-232 Control Connections
FIGURE 9: RS-232 Connections 6.3.1. RS-232 Control (DB-9) Connection Bidirectional RS-232 signals are transmitted between the B-540-EXT-230-RS Transmitter and Receiver over the Cat 5e/6 cable. The transmitter may be connected to a control system controller and the Receiver connected to an RS-232 controllable device. -
Page 12: Rs-232 Operation Mode
As new source and display devices become available, it may be necessary to modify the firmware in the B-540-EXT-230-RS. To perform firmware updates, the dipswitches must be set to DTE (Down) and Service. Detailed instructions and updated firmware will be posted to www. -
Page 13: Specifications
7. SPECIFICATIONS Technical Transmitter Receiver HDMI Compliance HDMI 3D HDCP Compliance Video Bandwidth 10.2 Gbps Resolution Cat 5e/6 Cat 6a/7 HDMI over UTP Transmission 1080i / 720p 24-bit 200 ft 230 ft color Full HD 1080P 24-bit 200 ft 230 ft color Full HD 1080P 36-bit 200 ft... -
Page 14: Contacting Tech Support
9. WARRANTY 2-Year Limited Warranty This Binary Product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled. - Page 16 Rev: 160414-1120 © 2016 Binary...
