- Page 1 Binary 760 Series 4K HDR Fiber Optic Extender with IR & RS-232 B-760-EXT-444-300 INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not e xpose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
- Page 4 FCC WARNINGS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro v ide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 5: Table Of Contents
CONTENTS Product Overview ................................. Features ..................................... Package Content ................................Device Layout .................................. 4.1. B-760-EXT-444-300 Transmitter ......................... 4.2. B-760-EXT-444-300 Receiver ........................Installation and Wiring ..............................5.1. Installation ................................5.2. Wiring ..................................IR Pass-through ................................RS232 Pass-through ..............................Specification ................................8.1. Transmission Distance ........................... Warranty .................................. -
Page 6: Product Overview

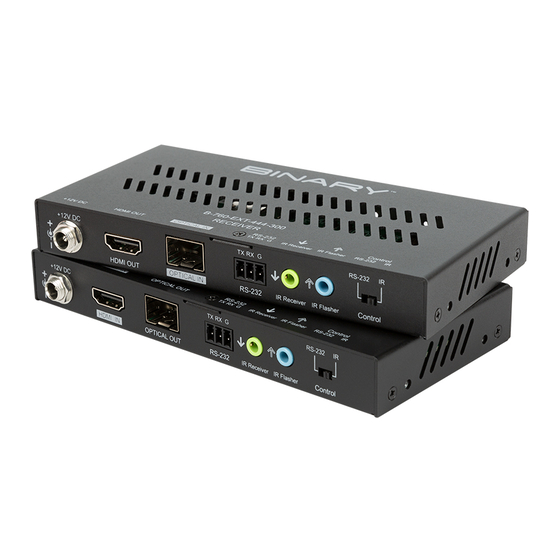

PRODUCT OVERVIEW B-760-EXT-444-300 is a fiber optic xtender set with HDCP 2.2 compatibility , extending HDMI signal up to 300m/1000ft o ver a duplex OM3 multi-mode fiber optic cable It supports bi-directional IR or RS232 pass-through via Control switch settings so that either infrared devices or RS232-enabled devices between transmitter end and receiver end can be controlled with ease. -
Page 7: Device Layout
DEVICE LAYOUT 4.1. B-760-EXT-444-300 Transmitter 1. Power LED On/Off: The device is powered on/ off. 2. Status LED On: The device is working properly. Off: The device is not working properly . 3. HDCP LED On: HDCP protected content is being tr a nsmitted. Blinking: Non-HDCP protected content is being tr a nsmitted. -
Page 8: B-760-Ext-444-300 Receiver
11. Control RS-232: For RS232 pass-through. IR: For IR pass-through. 4.2. B-760-EXT-444-300 Receiver 1. Power LED On/Off: The device is powered on/ off. 2. Status LED On: The device is working properly. Off: The device is not working properly . 3. -
Page 9: Installation And Wiring
10. IR Flasher Connect to an IR emitter. 11. Control RS-232: For RS232 pass-through. IR: For IR pass-through. INSTALLATION AND WIRING 5.1. Installation Note: Before installation, please ensure the de vice is disconnected from the power source. Steps to install the device in a suitable location: 1. -
Page 10: Ir Pass-Through
• IR: For bi-directional IR control of connected sources and displa ys from either location, connect IR emitters to the IR Flasher ports of the tr a nsmitter and receiver, and connect IR receivers to the IR Receiver ports of the transmitter and receiver. •... -
Page 11: Rs232 Pass-Through
Blu-ray Player Display Remote HDMI In IR Emitter 1 IR Receiver 2 Transmitter Switch to IR mode Receiver IR Receiver 1 HDMI Out Switch to IR mode Blu-ray Player Remote Display IR Emitter 2 Application Example: IR Pass-through RS232 PASS-THROUGH RS-232 ports can be used for bi-directional RS232 signal pass-through between the transmitter and receiver. - Page 12 RS232 Device Switch to RS-232 mode RS232 cable Transmitter RS232 Port Connected RS232 Device Pins Optical fiber cable Receiver RS232 cable Switch to RS-232 mode RS232 Device Application Example: RS-232 Pass-through...
-
Page 13: Specification
SPECIFICATIONS Technical Input 1 x Optical In (10 Gbit/ s MM SFP+ module ) Input Connector Type Dual LC Fiber Type Multi-mode duplex 850nm OM3 fibe 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 , 1366x768 1440x900 , 1600x900 , 1600x1200... -
Page 14: Warranty
WARRANTY Find details of the product’s Limited Warranty and other safety, patent, and legal resources at snapone.com/legal or request a paper copy from Customer Service at 866.424.4489 10. SUPPORT For chat and telephone, visit tech.control4.com/s/contactsupport • Email: TechSupport@SnapOne.com • Visit tech.control4.com for discussions, instructional videos, news, and more. - Page 16 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Araknis Networks, BakPak, Binary, Dragonfly, Episode, Luma, Mockupancy, Nearus, NEEO, Optiview, OvrC, Pakedge, Sense, Strong, Strong Evolve, Strong VersaBox, SunBriteDS, SunBriteTV, Triad, Truvision, Visualint, WattBox, Wirepath, and Wirepath ONE are also registered trademarks or trademarks of Snap One, LLC.
