Display Remote
IR Receiver 2
Transmitter
HDBT
Receiver
IR Receiver 1
Source Remote
To connect HDMI de-embedding audio for amplification, when using 3.5mm AUDIO OUT, the
transmitter AUDIO dip switch should be set to 2CH PCM. At this time, the SPDIF OUT will also
output 2-channel.
Display Remote
IR Receiver 2
Transmitter
HDBT
Receiver
IR Receiver 1
Source Remote
When using SPDIF OUT for surround sound, the transmitter AUDIO dip switch should be set to
COMPRESSED 5.1. At this time, the 3.5mm AUDIO OUT terminal will be muted.
Blu-ray Player
HDMI IN
IR Emitter 1
AUDIO OUT
HDMI OUT
IR Emitter 2
Display

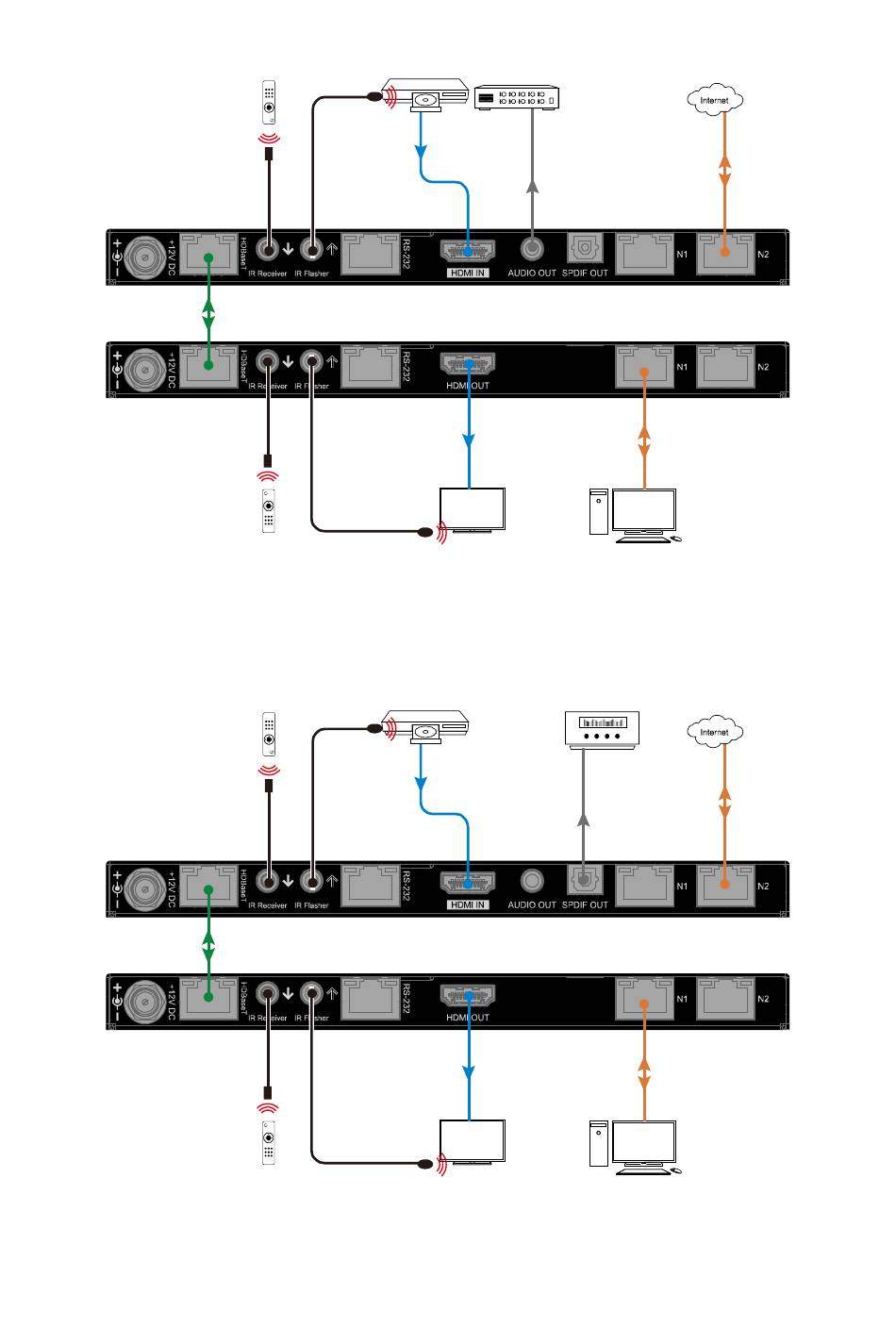

Application Diagram 1
Blu-ray Player
HDMI IN
IR Emitter 1
HDMI OUT
IR Emitter 2
Display
Application Diagram 2
11
Amplifier
ETHERNET
ETHERNET
PC
AV Receiver
SPDIF OUT
ETHERNET
ETHERNET
PC
