Summary of Contents for Binary B-560-EXT-444-70

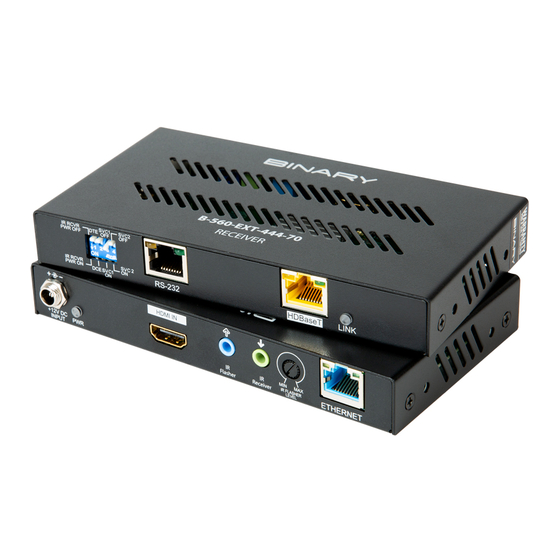

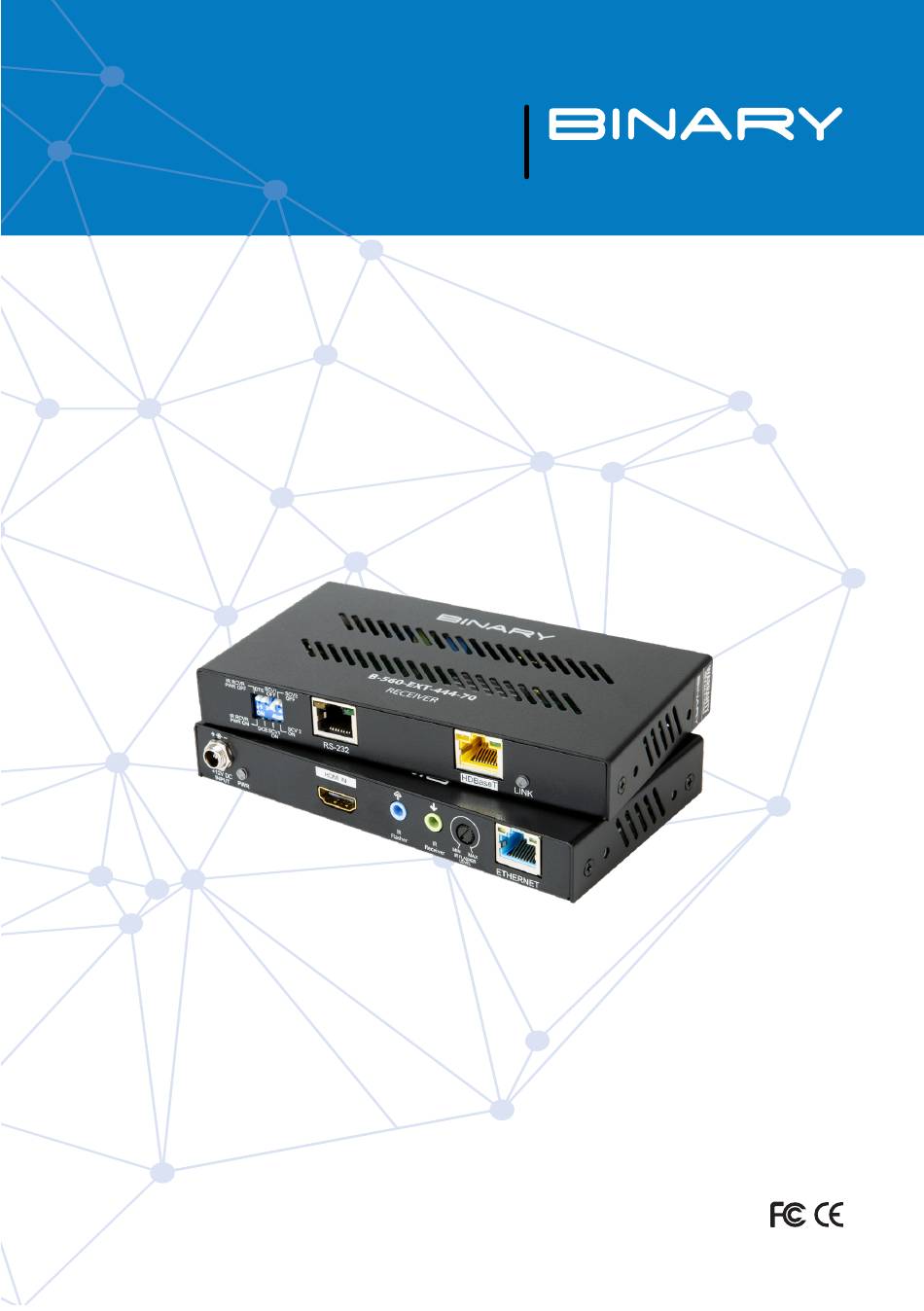

- Page 1 4K HDR HDBaseT Extender B-560-EXT-444-70 INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
-
Page 3: Table Of Contents
3. Package Contents ................................4 4. Device Layout ..................................5 4.1. B-560-EXT-444-70 Transmitter ........................5 4.2. B-560-EXT-444-70 Receiver ........................6 5. Installation ..................................6 5.1. B-560-EXT-444-70 Transmitter Installation ..................6 5.2. B-560-EXT-444-70 Receiver Installation ....................7 6. Applications ..................................7 6.1. HDBaseT Link (RJ45) Connection ......................8 6.2. IR Control Connections ..........................8 6.2.1. -
Page 4: Product Overview
1. PRODUCT OVERVIEW Welcome to Binary. This product is engineered to provide years of exceptional reliability. We appreciate your business and we stand committed to providing our customers with the highest degree of quality and service in the industry. This device extends 4K HDR signals (HDMI 2.0a / HDCP 2.2) over a single category cable allowing video and audio transmission to remote displays, and will pass all video formats up to 18Gbps including 4K@60Hz 4:4:4 8bit and 10/12 bit HDR formats. -
Page 5: Device Layout
4. DEVICE LAYOUT 4.1. B-560-EXT-444-70 Transmitter FIGURE 1: Transmitter Layout A. Thread-locking Power Connector Connect to the included 12V DC, 2A power supply B. Power LED Lights up blue when the unit has power C. HDMI IN HDMI Input to connect to the HDMI output of a source D. -
Page 6: B-560-Ext-444-70 Receiver
4.2. B-560-EXT-444-70 Receiver HDMI OUT FIGURE 2: Receiver Layout A. Thread-locking Power Connector Connect to the included 12V DC, 2A power Supply B. Power LED Lights up blue when the unit has power C. HDMI Out HDMI Output which could be connected to the HDMI input of a sink (display) D. -
Page 7: Installation
CAUTION: Do not connect power to the device until all other connections are made and the unit is installed. 5.1. B-560-EXT-444-70 Transmitter Installation 1. Run category cable from the location of the transmitter to the remote location of the receiver. -
Page 8: Applications
6. APPLICATIONS HDMI Source PLAY HDMI Power B-560-EXT-444-70 Transmitter Back Front Back Front B-560-EXT-444-70 Receiver CAT5 HDMI OUT HDMI FIGURE 3 : Application Diagram Note: When a power supply is connected to either the transmitter or receiver, the HDBaseT link sends power to the other unit. Only one unit requires a power supply to be connected. -
Page 9: Ir Control Connections
CAUTION: Pinout configurations for IR receivers and control systems vary. Before connecting to this input, review this section carefully in order to match the pinouts for the device. HDMI Source IR Processor/ Controller PLAY IR Inputs IR Outputs B-560-EXT-444-70 Transmitter Back Front HDBaseT HDMI OUT Back Front... -
Page 10: Point-To-Point Ir Control - Stereo (3.5Mm) Ir Receiver
6.2.1. Point-to-Point IR Control — Stereo (3.5mm) IR Receiver When using a powered IR receiver, the DIP switch for IR RCVR PWR should be set to ON. In this case a 3.5mm (1/8") stereo jack has to be used to send 9V DC power to the receiver. CAUTION: DO NOT connect a mono cable to this connection as damage may occur. -
Page 11: Ir Flasher Out- Mono (3.5Mm)
Bidirectional RS-232 signals are transmitted between the device transmitter and receiver over the category cable. The transmitter may be connected to a control system, and the receiver may be connected to an RS-232 controllable device. B-560-EXT-444-70 Receiver B-560-EXT-444-70 Transmitter Control System RS-232 Controllable Device ... -
Page 12: Rs-232 Control (Db-9) Connection
6.3.1. RS-232 Control (DB-9) Connection To eliminate the need to make crossover or null modem cables, the RS-232 pinouts can be configured for DCE or DTE. Set switch 2 to DCE if the connected device is DCE, and to DTE if the connected device is DTE. -
Page 13: Rs-232 Operation Mode / Firmware Update Operation
FIGURE 11: Firmware Update settings 6.4. IP Control Connections Bidirectional Ethernet signals are transmitted between the B-560-EXT-444-70 Transmitter and Receiver over the Cat 5e/6 cable. The most common use is to send Ethernet signals for Networked TVs or any device in the remote location that has an Ethernet connection. This connection is only to be used for standard Ethernet signals and cannot be used for other communication formats. -
Page 14: Thread-Locking Power Supply
6.5. Thread-Locking Power Supply This extender pair is Power over Cable capable and therefore can be powered from either the transmitter or receiver. When a power supply is connected to either the transmitter or receiver, the HDBaseT link sends power to the other end. CAUTION: Do not connect the power supply to the device until it is completely installed and all connections have been made. -
Page 15: Support
9. WARRANTY 2-Year Limited Warranty This Binary Product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled. - Page 16 Rev: 180913-1240 © 2018 Binary...
