4K HDR HDBaseT Extender with IR, RS-232,
Ethernet, & Audio Breakout
B-660-EXT-444-100A
INSTALLATION
MANUAL
Source | M
(HDMI Ou

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-660-EXT-444-100A and is the answer not in the manual?

Questions and answers

Summary of Contents for Binary B-660-EXT-444-100A

  • Page 1 4K HDR HDBaseT Extender with IR, RS-232, Ethernet, & Audio Breakout B-660-EXT-444-100A INSTALLATION MANUAL Source | M (HDMI Ou...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
  • Page 3 FCC WARNINGS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4: Table Of Contents

    CONTENTS Product Overview ................................5 Features .....................................5 Package Contents ................................5 Device Layout ..................................6 4.1. B-660-EXT-444-100A Transmitter ......................6 4.2. B-660-EXT-444-100A Receiver ........................8 Installation and Wiring .............................10 5.1. Installation ................................10 5.2. Wiring ...................................10 EDID Management ..............................12 Function Setting ................................13 Connections ..................................14 8.1. HDBaseT Link (RJ45) Connection ......................14 8.2.
  • Page 5: Product Overview

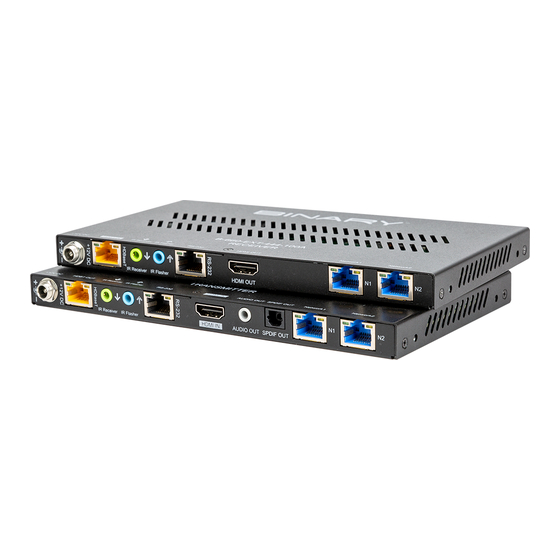

    PRODUCT OVERVIEW The B-660-EXT-444-100A is a 4K HDR HDBaseT extender that supports 4K@60Hz 4:4:4 8bit including DCI 4K (4096 x 2160), and HDCP 2.2 compatibility. It can transmit 1080P signals up to 100m/330ft and 4K@60Hz signals up to 70m/230ft via Cat 5e/6 cable, and transmit 1080P and 4K@60Hz 4:4:4 8bit signals up to 100m/330ft via Cat 6a/7 cable.
  • Page 6: Device Layout

    DEVICE LAYOUT 4.1. B-660-EXT-444-100A Transmitter Front Panel 1. POWER LED On: Transmitter is powered on Off: Transmitter is powered off. 2. STATUS LED Blinking: The transmitter is working properly. Off: The transmitter is not working properly. 3. LINK LED On: HDBT link is normal.
  • Page 7 Rear Panel 1. +12V DC Connect the 12V power cord provided. 2. HDBT OUT Connect to the receiver via a Cat x cable. 3. IR Receiver Connect to an IR receiver cable. 4. IR Flasher Connect to an IR emitter cable. 5.
  • Page 8: B-660-Ext-444-100A Receiver

    4.2. B-660-EXT-444-100A Receiver Front Panel 1. POWER LED On: Receiver is powered on Off: Receiver is powered off 2. STATUS LED Blinking: The receiver is working properly. Off: The receiver is not working properly. 3. LINK LED On: HDBT link is normal.
  • Page 9 Rear Panel 1. +12V DC Connect the 12V power cord provided. 2. HDBT IN Connect to the transmitter via a Cat 5e/6/6a/7 cable. 3. IR Receiver Connect to an IR receiver cable. 4. IR Flasher Connect to an IR emitter cable. 5.
  • Page 10: Installation And Wiring

    INSTALLATION AND WIRING 5.1. Installation Before installation, please ensure the device is disconnected from the power supply. Steps to install the device on a suitable position: 1. Attach the mounting ears to the enclosure using the screws provided in the package. 2.
  • Page 11 Display Remote Blu-ray Player Amplifier HDMI IN IR Emitter 1 AUDIO OUT IR Receiver 2 ETHERNET Transmitter HDBT Receiver IR Receiver 1 HDMI OUT IR Emitter 2 ETHERNET Display Source Remote Application Diagram 1 To connect HDMI de-embedding audio for amplification, when using 3.5mm AUDIO OUT, the transmitter AUDIO dip switch should be set to 2CH PCM.
  • Page 12: Edid Management

    EDID MANAGEMENT EDID is configured by Video and Audio DIP Switch. The default setting is Auto, please refer to the following table to configure. Video DIP Switch Position EDID Resolution Auto (Default) 1080P SDR Down 1080P HDR Down 4K@30 SDR Down Down 4K@30 HDR...
  • Page 13: Function Setting

    FUNCTION SETTING IR, RS-232 and ARC functions can be configured by Function DIP Switch. The default setting is “Up, Up, Up, Up”, please refer to the following table to configure. TX Function Settings 4-Pin DIP Positions IR/RS-232/ FW Update IR RCVR PWR OFF (12v) Up IR RCVR PWR ON (12v) Down DTE (RS-232)
  • Page 14: Connections

    HDBaseT RJ45 Connections Note: The HDBaseT Link RJ45 connection includes a 48V signal. Do not connect anything to this port other than a B-660-EXT-444-100A transmitter or receiver. 8.2. RS-232 Control Connections • Bidirectional RS-232 signals are transmitted between the device transmitter and receiver over the category cable.
  • Page 15 RS-232 Controllable Device TX Function Group DCE Mode Transmitter HDBT Receiver RX Function Group DTE Mode Control System Example 2 RS-232 Control Terminal TX Function Group DTE Mode Transmitter HDBT Receiver RX Function Group DTE Mode Control System Example 3...
  • Page 16: Rs-232 Control (Db-9) Connection

    8.2.1. RS-232 Control (DB-9) Connection To eliminate the need to make crossover or null modem cables, the RS-232 pinouts can be configured for DCE or DTE. Set switch 2 to DCE if the connected device is DCE, and to DTE if the connected device is DTE.
  • Page 17: Specifications

    SPECIFICATIONS Technical Transmitter: 1 x HDMI IN, 1 x HDBT OUT, 1 x HDMI OUT, 1 x IR Receiver,1 x IR Flasher, 1 x RS-232 (RJ45), 1 x AUDIO OUT (3.5mm analog audio out), Input/Output Port 1 x SPDIF OUT, 2 x ETHERNET, 1 x DC 12V IN Receiver: 1 x HDMI OUT, 1 x HDBT IN, 1 x IR Receiver, 1 x IR Flasher, 1 x RS-232 (RJ45),...
  • Page 18: Transmission Distance

    10. WARRANTY 2-Year Limited Warranty This Binary product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled.
