1
2

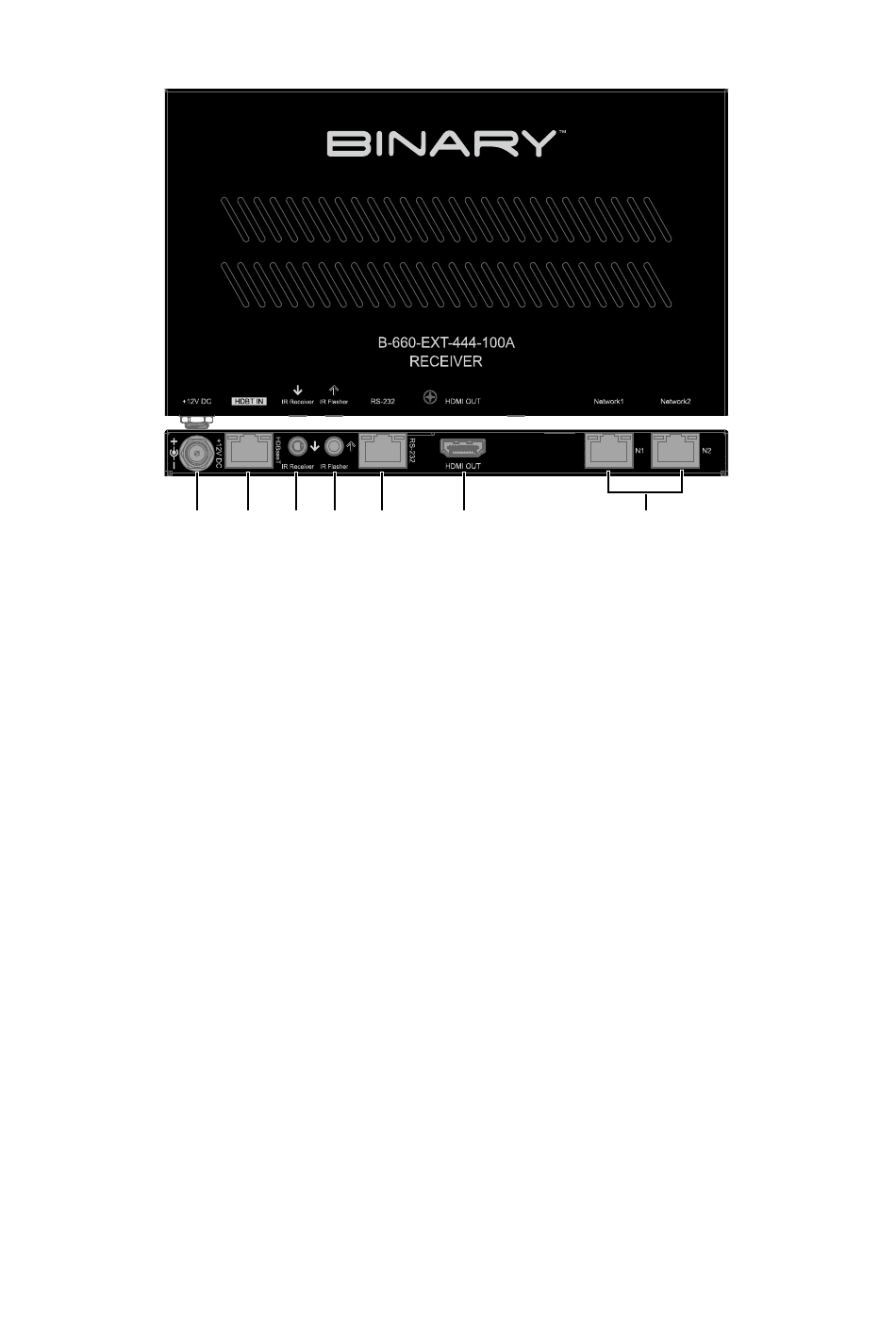

1. +12V DC
Connect the 12V power cord provided.
2. HDBT IN
Connect to the transmitter via a Cat 5e/6/6a/7 cable.
3. IR Receiver
Connect to an IR receiver cable.
4. IR Flasher
Connect to an IR emitter cable.
5. RS-232
RJ45 port. Connect to a RS-232 control device such as a PC for RS-232 pass through or
firmware upgrade.
6. HDMI OUT
Connect to an HDMI display.
7. Network 1&2
Connect to ethernet devices or to the network.
Rear Panel
3
4
5
6
9
7
