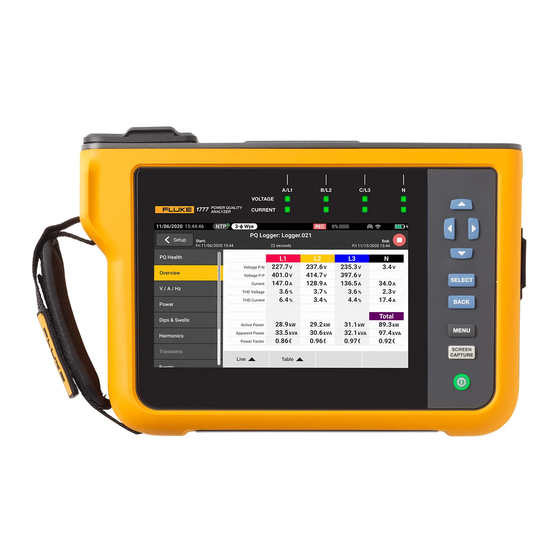

Fluke 1775 User Manual

Fluke 1775 User Manual

3 phase power quality analyzer
Hide thumbs Also See for 1775:
Table of Contents

Advertisement

Quick Links

Download this manual
É
September 2021
© 2021 Fluke Corporation. All rights reserved.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
1.800.561.8187
1.800.561.8187
3 Phase Power Quality Analyzer
(English)
www.
www.
1773/1775/1777
Users Manual
information@itm.com
information@itm.com
.com
.com

Advertisement

Table of Contents
loading

Related Manuals for Fluke 1775

Summary of Contents for Fluke 1775

  • Page 1 1773/1775/1777 3 Phase Power Quality Analyzer Users Manual É September 2021 (English) © 2021 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. 1.800.561.8187 1.800.561.8187 information@itm.com information@itm.com www.
  • Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.

  • Page 3: Table Of Contents

    Table of Contents Title Page Introduction ....................How to Contact Fluke................Safety Information ..................Specifications .................... Before You Start..................WiFi/BLE Module ................GPS Time Synchronization..............Magnet Hanger Kit................Voltage Test Leads................iFlexi Current Probe................Tilt Stand .................... 10 Storage...................... 10 Accessories....................
  • Page 4 1773/1775/1777 Users Manual Energy Analyze Plus Software ..............20 System Requirements................. 20 How to Connect to Energy Analyze Plus ..........21 USB Cable..................21 Ethernet ..................22 WiFi Direct Connect..............23 WiFi to Infrastructure ..............23 Auto-Copy Data to USB..............24 First-time Use/Setup Wizard..............
  • Page 5 3 Phase Power Quality Analyzer Table of Contents Maintenance....................42 How to Clean ..................42 Battery Replacement ................42 Calibration................... 43 Glossary ....................44 1.800.561.8187 1.800.561.8187 information@itm.com information@itm.com www. www. .com .com...
  • Page 6 1773/1775/1777 Users Manual 1.800.561.8187 1.800.561.8187 information@itm.com information@itm.com www. www. .com .com...

  • Page 7: Introduction

    Introduction The 1773/1775/1777 3 Phase Power Quality Analyzer (the Analyzer or Product) is a rugged, portable device for troubleshooting power quality. The compact size and power supply from the measurement line makes it a versatile tool for live measurements and long-term logging.

  • Page 8: Safety Information

    • • 4x Magnet Probes [1] The basic models (1773/B, 1775/B, and 1777/B) do not include the current probes. [2] The basic models (1775/B and 1777/B) do not include the WiFi/BLE Module. Note The power cord is country specific and varies according to the order destination.

  • Page 9: Wifi/Ble Module

    1773/1775/1777 Users Manual Table 2. Country-Specific Mains Power Cable Item Location Part Number North America 1552374  Japan 2437458 China 4894155  Universal Euro 1552388  United Kingdom 1552342  Australia 1552339  Brazil 4322049 WiFi/BLE Module The WiFi/BLE module enables the wireless connectivity. Wireless connectivity is the preferred data transfer method when the Product is installed in hazardous environments, such as, cabinets.
  • Page 10 3 Phase Power Quality Analyzer Before You Start 2. Remove the two screws. 3. Remove the WiFi/BLE module with a gentle pull on the tether. Figure 1. WiFi/BLE Module Installation 4. Close the protection cap. To upgrade: 1. Unscrew the two screws and dispose of the blind plate. 2.

  • Page 11: Gps Time Synchronization

    1773/1775/1777 Users Manual An adapter cable (available from Fluke) connects the antenna to the installed WiFi/BLE module. Figure Figure 2. WiFi Antenna Connection PN 5263915 Note The antenna cable connects to the antenna with a SMA connector that has an outside thread and a center receptacle (SMA female/jack).
  • Page 12 3 Phase Power Quality Analyzer Before You Start Figure 3. GPS Connection PN 5263915 3. Connect the GPS antenna to the antenna cable. A GPS antenna is available from third-party sources and must have these requirements: Satellite system: GPS, GLONASS. Support of both systems allows faster, more reliable ...

  • Page 13: Magnet Hanger Kit

    1773/1775/1777 Users Manual Magnet Hanger Kit Use the Magnet Hanger Kit to hang the Product. See Figure Figure 4. Magnet Hanger Kit W Caution Always use two magnets to hang the Product. Voltage Test Leads Four-core, flat, voltage test leads connect up to three phases and neutral. These leads do not tangle and can be installed in tight spaces.

  • Page 14: Iflexi Current Probe

    3 Phase Power Quality Analyzer Before You Start iFlexi Current Probe The iFlexi Current Probe works on the Rogowski coil (R-coil) principle that is a toroid of wire used to measure an alternating current through a wire encircled by the toroid. See Figure Figure 5.

  • Page 15: Tilt Stand

    1773/1775/1777 Users Manual Use the wire clips for easy identification of the four current probes. Apply the clips that are appropriate for your local wiring codes on both ends of the current probe cable. See Figure Figure 6. Wire Clips...

  • Page 16: Accessories

    3 Phase Power Quality Analyzer Accessories Accessories For the most up-to-date information on accessories, go to User Interface Table 3 is a list of the front panel controls and functions. Table 3. Front Panel Item Description Power ON/OFF  Touch screen ...
  • Page 17 1773/1775/1777 Users Manual Table 4 is a list of the connectors and functions. Table 4. Connector Panel ETHERNET Item Description Ethernet  Power Supply Input 600 V 50/60 Hz 40 VA  Voltage measurement inputs (3 phases + N) ...

  • Page 18: Power

    3 Phase Power Quality Analyzer Power Power The Analyzer has options for the power source: mains  measurement line  battery  USB-C  Mains Power Source Setup: 1. Attach the mains adapter MA-C8 to both power supply inputs of the Analyzer. See Figure 2.

  • Page 19: Measurement Line Power Source

    1773/1775/1777 Users Manual Measurement Line Power Source W Caution To prevent damage to the product, make sure the measured voltage does not exceed the input rating of the power supply. XW Warning To prevent injury, do not touch the metal parts of one test lead when the other is still connected to hazardous voltage.

  • Page 20: Battery Power Source

    3 Phase Power Quality Analyzer Power Figure 10. Measurement without Neutral Voltage and Instrument Power Supply Note You must locate and connect an alternate power source to the instrument if the voltage to measure is <100 V or >600 V. Use rated test leads or the supplied power cord.

  • Page 21: Usb-C Power

    1773/1775/1777 Users Manual USB-C Power You can power the Analyzer with the USB-C connection to a wall outlet adapter when power from measurement line is not available. Setup: 1. Connect the USB-C cable to the Analyzer. 2. Connect the USB-C cable to the wall outlet adapter.

  • Page 22: Info Overview

    3 Phase Power Quality Analyzer Touchscreen/Basic Navigation Info Overview Touch to open the Info Overview menu. The Info Overview is a list of useful information about the Analyzer: Serial Number  Instrument Name  Calibration Date  Operating Temperature  Harmonics ...

  • Page 23: Memory

    Each of the screenshots includes a date and time stamp for management. From this screen you can delete a single capture or all captures. You can also copy the screen captures to a USB flash drive. These are saved to a folder: Fluke 177x\<serial-number>\screenshots (x= 3, 5, or 7) 1.800.561.8187 1.800.561.8187 information@itm.com...
  • Page 24 When on site, photographs of the location that show the connections and rating plates of electrical panels, transformers, or motors are useful. These can be integrated in to the final Fluke Energy Analyze report. Also consider including thermographic or acoustic images.

  • Page 25: Energy Analyze Plus Software

    1773/1775/1777 Users Manual Energy Analyze Plus Software Purchase of the Product includes Fluke Energy Analyze Plus software. Use the software to do many tasks from a computer: Update the Analyzer firmware.  Download campaign results for further processing and archiving.

  • Page 26: How To Connect To Energy Analyze Plus

    3 Phase Power Quality Analyzer Energy Analyze Plus Software How to Connect to Energy Analyze Plus The Analyzer supports these interfaces to connect to the PC: USB cable  Ethernet  WiFi - direct connection  WiFi - connection to infrastructure ...

  • Page 27: Ethernet

    Windows may show an exclamation mark in the network status icon indicating that the connection does not provide Internet access. This is normal. The Analyzer communicates with the Fluke Energy Analyze Plus software on these ports: Type Port Number...

  • Page 28: Wifi Direct Connect

    3 Phase Power Quality Analyzer Energy Analyze Plus Software WiFi Direct Connect With the built in WiFi/BLE Adapter you can wirelessly control the Analyzer and download measurement data to the Energy Analyze Plus software. The WiFi direct connection uses WPA2-PSK (pre-shared key) with AES encryption. To make a WiFi connection: 1.

  • Page 29: Auto-Copy Data To Usb

    1773/1775/1777 Users Manual Auto-Copy Data to USB The Analyzer supports automatic actions on insertion of the USB flash drive. This is helpful to gather data from the Analyzer without the need to establish a connection to the Analyzer to download the data to the PC.

  • Page 30: First Measurements

    3 Phase Power Quality Analyzer First Measurements First Measurements At the measurement site, look at the information in the panel and the rating plates on the machines. Based on knowledge of the electrical supply in the facility, determine the configuration. The example below performs a measurement on a three-phase wye system. To set up the Analyzer: 1.

  • Page 31: Measurement Configuration

    1773/1775/1777 Users Manual 2. Read the current measurements for phases A/L1, B/L2, C/L3, and N. A yellow START button indicates errors found in the connection. Watch for undervoltage or overvoltage indications, polarity of current probes, and the phase rotation for voltage and current.

  • Page 32: Setup

    3 Phase Power Quality Analyzer Measurement Configuration To stop a logging session: 1. Tap A confirmation message shows on the display. 2. To continue, confirm that you want to stop the logging session. The Analyzer stores the measurements in memory with this file name convention: Meter.xxx (xxx = three digits).

  • Page 33: Voltage And Current Ratio

    1773/1775/1777 Users Manual Voltage and Current Ratio If a voltage and current transformer is included in the measured circuit, you can choose a multiplier so that the results appear in the correct engineering units, for example, kV or MW. To set the ratio for phase voltage and neutral: 1.

  • Page 34: Event Trigger Settings

    The capture of events requires trigger settings. A set of standard settings are enabled by default. These triggers are to specify when a detailed RMS capture occurs in the Analyzer. The 1775 and 1777 models also include a waveform and transient capture as well as the detailed RMS voltage capture.
  • Page 35 With the 1777 Analyzer, select the sample rate of the transient capture as either 1 MHz or 20 MHz. The 1775 Analyzer defaults to the maximum sample rate of 1 MHz. To activate this trigger, check the Trigger On box.

  • Page 36: Pq Logger Mode

    3 Phase Power Quality Analyzer Measurement Configuration PQ Logger Mode PQ Logger mode provides the ability to log measurements over an extended period of time to find intermittent issues or trend data to discover the overall performance of the electrical system.

  • Page 37: Harmonics Grouping

    The listed standards most frequently recommend Subgrouped harmonic. Note Fluke recommends the Subgrouped setting unless there are special circumstances why the other methods are applicable for the required test. A change to this grouping method could lead to inconsistent results when making comparisons of other measurements made at the same or other locations.

  • Page 38: Pq Logger Event Trigger Settings

    Note To use this feature you will need to purchase the optional Models: Fluke 17XX AUX Input Adapter Box that allows inputs of ±1000 V dc with 4 mm sockets or ±10 V dc with push-in terminals.
  • Page 39 1773/1775/1777 Users Manual Description. Type in useful information about the measurement session for the report. Include information about the measurement location, who performed the installation, and the type of equipment being monitored. Duration, Start Time. 10 minutes, 1 hour, 1 day, 1 week, and 30 days are the preset durations available for logging sessions.

  • Page 40: Measurement Data Review

    3 Phase Power Quality Analyzer Measurement Data Review Measurement Data Review The Analyzer has features for measurement data review in both the PQ Meter mode and the PQ Logger mode. The PQ Logger mode also includes the PQ Health feature. PQ Health The PQ Health feature is available only in PQ Logger Mode.

  • Page 41: Power

    1773/1775/1777 Users Manual Power The Power screen shows the details of phase by phase active power, apparent power, non- active power, power factor, and harmonics power. These values are derived in accordance with standard IEEE1459. Dips and Swells The Dips and Swells screen shows voltage and trend graph with phase voltage in the upper half and neutral voltage in the lower half.

  • Page 42: Events

    3 Phase Power Quality Analyzer Basic Setup Events The Events list shows every type of event that might have occurred. These can be filtered into event types such as dip, swell and interruption, waveshape deviation, transients, rapid voltage changes, mains signaling, and inrush current. Each type of event can be selected for a closer view by waveshape and RMS profile.
  • Page 43 1773/1775/1777 Users Manual The menu on the left side opens submenus for Communication and Tools Settings: IP Address  WiFi Client  WiFi Access Point  Remote Display  Reset to Factory Defaults  Copy Service Data to USB ...

  • Page 44: Communication Settings

    WiFi Access Point. The Anaylzer can be set as a WiFi Access point and creates its own WiFi network that a device can connect to. This can be used to download data from the Anaylzer with Fluke Energy Analyze software or for control with a Virtual Network Computer. See Remote Display.
  • Page 45 1773/1775/1777 Users Manual Remote Display. You can remotely connect to the 177x models with a free third-party Virtual Network Computing (VNC) client available for Windows, Android, Apple iOS, and Windows Phone after the WiFi connection is set up. VNC allows you to see the screen content, push the buttons, and touch the targets.

  • Page 46: Tools

    3 Phase Power Quality Analyzer Basic Setup Tools Reset to Factory Defaults. On selecting this option consider downloading all data as once the reset occurs all settings and data is lost. A warning to this effect is shown on screen. Copy Service Data to USB.

  • Page 47: Maintenance

    1773/1775/1777 Users Manual Maintenance XW Warning To prevent possible electrical shock, fire, or personal injury: Do not operate the Product with covers removed or the case open. Hazardous  voltage exposure is possible. Remove the input signals before you clean the Product.

  • Page 48: Calibration

    To prevent damage to the Product, use only Fluke battery pack. Calibration As an additional service Fluke offers the regular examination and calibration of your Logger. The recommended calibration cycle is 2 years. For more information see How to Contact Fluke.

  • Page 49: Glossary

    1773/1775/1777 Users Manual Glossary Nominal Voltage. Select a nominal voltage from the list. If a voltage is not shown in the list, enter a custom voltage. The nominal voltage is required to determine the limits for dips, swells, and interruptions. When a voltage transducer is used, enter the nominal voltage on the primary side of the transducer Nominal Frequency.
  • Page 50 3 Phase Power Quality Analyzer Glossary Harmonics Calculation Method. Select the harmonic calculation method to apply according to IEC 61000-4-7. The Analyzer applies a FFT (Fast Fourier Transformation) every 10/12 cycles (typical 200 ms), that delivers spectral components (bins) every 5 Hz from dc up to ½ fs. The ‘fs’...
  • Page 51 1773/1775/1777 Users Manual Harmonic Components. The fundamental h01 and harmonics h02 … h50 are represented by the bin of the harmonic frequency. The interharmonics ih01 … ih50 are calculated from all spectral components between two consecutive harmonic frequencies. Examples: On a 60 Hz system, the h02 at 120 Hz is represented by the bin no. 24 (120 Hz / 5 Hz = 24).
  • Page 52 3 Phase Power Quality Analyzer Glossary Flicker. Flicker is a cyclic variation of light intensity of lamps caused by fluctuation of the supply voltage and is typically a symptom of voltage disturbance caused by using large fluctuating loads. Measurement Modes: PQ Meter ...
  • Page 53 1773/1775/1777 Users Manual Main signaling voltages. Mains signaling voltage also known as ripple control signal for various control applications, such as tariff changeover, street lightning, storage heathers, and alarming. It is a is data telegram applied at a frequency between 110 Hz and 1600 Hz with an amplitude of 1 % …...
  • Page 54 3 Phase Power Quality Analyzer Glossary Power Quality Events Voltage Dips. On single-phase systems, a voltage dip begins when the voltage falls below the dip threshold and ends when the voltage is equal to or above the dip threshold plus the hysteresis voltage.
  • Page 55 1773/1775/1777 Users Manual Voltage Swells. On single-phase systems, a swell begins when the voltage rises above the swell threshold, and ends when the voltage is equal to or below the swell threshold minus the hysteresis voltage. See Table Table 10. Characteristics of a Voltage Swell Threshold ...
  • Page 56 3 Phase Power Quality Analyzer Glossary On polyphase systems, a voltage interruption begins when the voltages of all channels fall below the voltage interruption threshold and ends when the voltage on any one channel is equal to, or greater than, the voltage interruption threshold plus the hysteresis. Note On polyphase systems, the event is still classified as a dip when the voltage of only one or two phases falls below the interruption limit.
  • Page 57 1773/1775/1777 Users Manual An RVC Event is detected when the arithmetic mean of 100/120 U (1/2) values falls outside the an RVC threshold. When a voltage change crosses the dip or swell thresholds, it is considered a dip or swell and not a rapid voltage change. The event list shows the voltage step, transition time, and Vmax.
  • Page 58 3 Phase Power Quality Analyzer Glossary This trigger is a general-purpose trigger that detects non-stationary phenomena and is perfectly suitable for all kinds of disturbance analysis and troubleshooting, because most of the power quality problems result in a sudden change of the waveform. From the recorded waveforms, in most cases the root-cause of distortions can be identified: Switching of capacitor banks, commutation distortions, and oscillations on the mains supply.
  • Page 59  Sample rate 1 MS/s or 20 MS/s  On the Fluke 1777, use 1 MS/s if the subsequent waveform after the event up to 0.5 s is of interest. Note The use of 1 MS/s impacts the accuracy of the peak measurement.
  • Page 60 3 Phase Power Quality Analyzer Glossary Trigger sensitivity  This sets the voltage level of the spectral component of the input signal above 1.5 kHz. Predefined settings of low-medium-high for the trigger level allow an easy configuration based on the required trigger sensitivity, where low is the most sensitive setting. You can configure a custom setting when the session should, for example, store only events >500V.
  • Page 61 1773/1775/1777 Users Manual Inrush Current. Inrush currents are surge currents that occur when a large or low-impedance load comes on line. Normally the current will stabilize after some time when the load has reached normal working condition. For example, the start-up current in induction motors can be 10x the normal working current.
