2.4.1

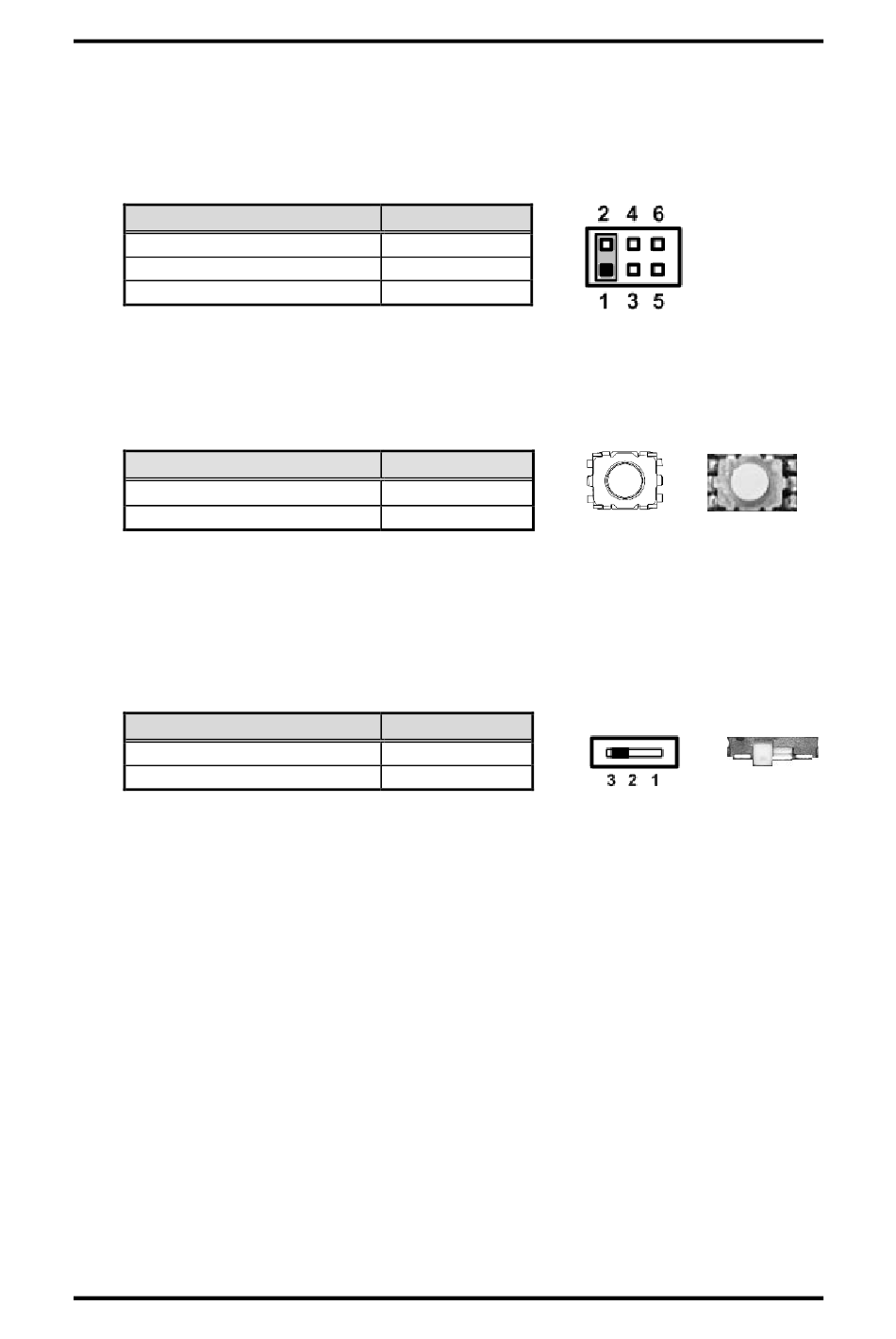

LVDS +3.3V/+5V/+12V Voltage Selection (JP1)

This is a 2x3-pin (pitch=2.0mm) jumper. The board supports voltage selection for flat
panel displays. Use JP1 to set LVDS connector (see section 2.5.6) pin 1~6 VCCM to
+3.3V, +5V or +12V. To prevent hardware damage, before connecting please make sure
that input voltage of the flat panel is correct.
Function
+12V level
+5V level
+3.3V level (Default)
2.4.2

Restore BIOS Optimal Defaults (SW1)

Use SW1 to clear CMOS. Press the tact switch for at least 3 seconds to restore BIOS
optimal defaults.
Function
Normal (Default)
Restore BIOS optimal defaults
2.4.3

Auto Power On (SSW1)

If SSW1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SSW1 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Disable auto power on (Default)
Enable auto power on
Board and Pin Assignments
®
CAPA520 Intel Core
Setting
5-6 close
2-4 close
1-2 close
Setting
Release
Press
Setting
1-2 close
2-3 close
TM
Processor Family 3.5" Board
11
