CAPA313 3.5" Board
2.3.1

LVDS +3.3V/+5V/+12V Voltage Selection (JP1)

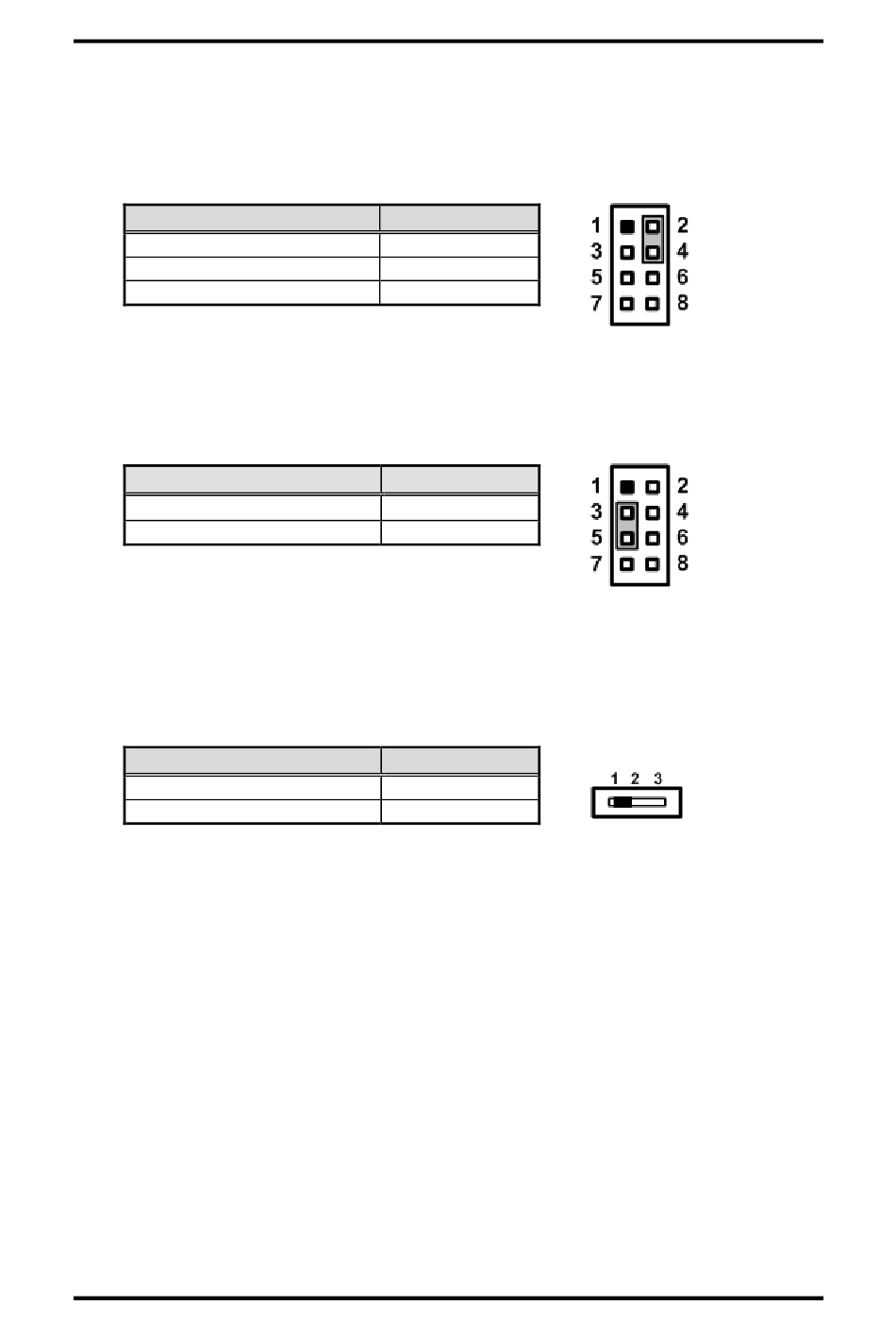

This is a 2x4-pin (pitch=2.0mm) jumper. The board supports voltage selection for flat
panel displays. Use JP1 to set CN13 pin 1~6 to +3.3V, +5V or +12V. To prevent
hardware damage, before connecting please make sure that the input voltage of flat
panel is correct.
Function
+3.3V level (Default)
+5V level
+12V level
2.3.2

Restore BIOS Optimal Defaults (JP1)

Put jumper clip to pin 1-3 for a few seconds then move it back to pin 3-5. Doing this
procedure can restore BIOS optimal defaults.
Function
Normal (Default)
Restore BIOS optimal defaults
2.3.3

Auto Power On (SSW1)

If SSW1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SSW1 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Disable auto power on (Default)
Enable auto power on
10
Setting
2-4 close
4-6 close
7-8 close
Setting
3-5 close
1-3 close
Setting
1-2 close
2-3 close
Board and Pin Assignments
