CAPA322 3.5" Board
2.3.1

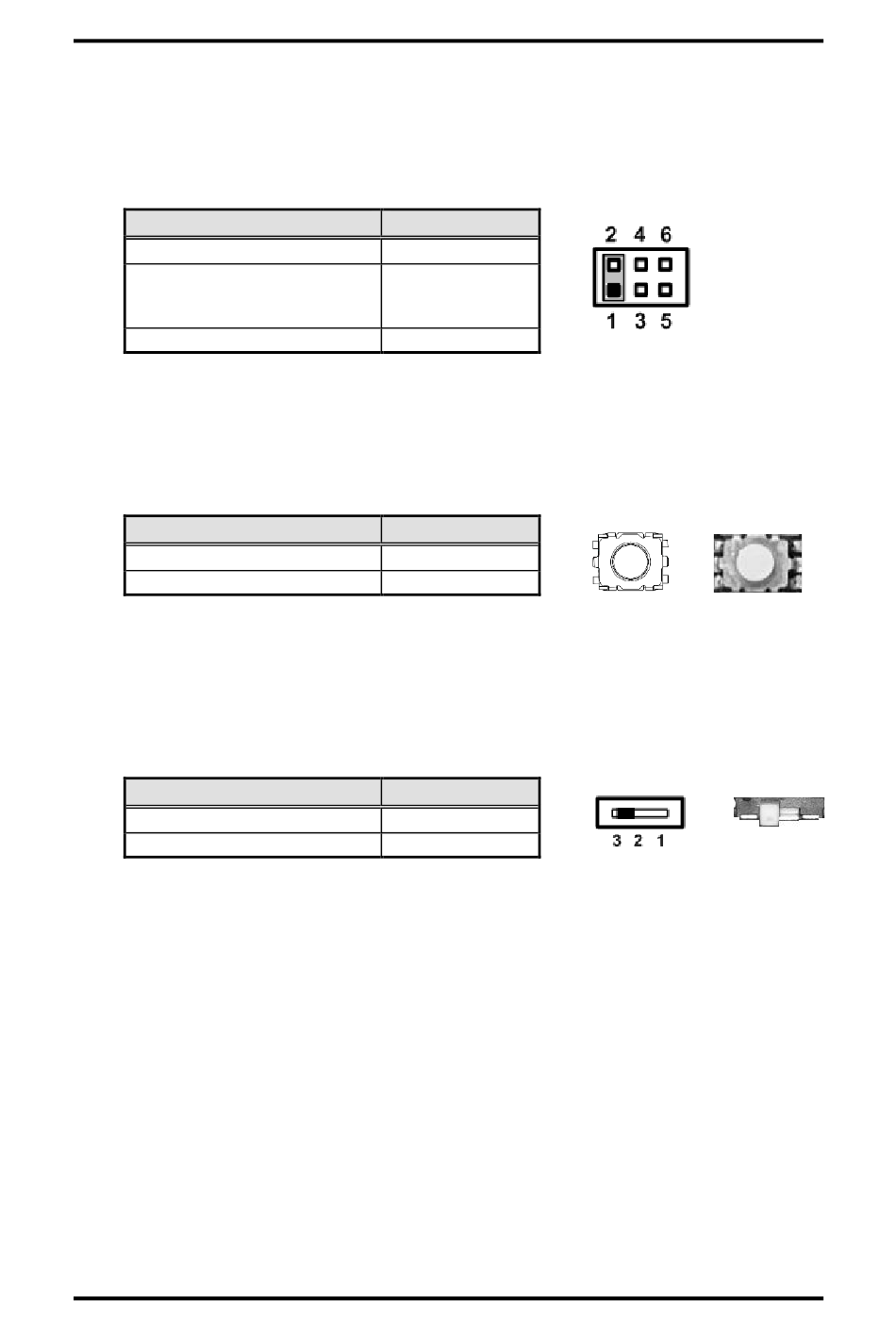

LVDS/eDP +3.3V/+5V/+12V Voltage Selection (JP1)

The board supports voltage selection for flat panel displays. Use this jumper to set LVDS
connector (CN4) pin 1~6 VCCM / eDP connector (CN9) pin 1~4 LCD_VCC to +3.3V,
+5V or +12V level. To prevent hardware damage, before connecting please make sure
that the input voltage of flat panel is correct.
Function
+12V level
+5V level
+3.3V level (Default)
2.3.2

Restore BIOS Optimal Defaults (SW1)

Use SW1 to restore CMOS. To restore BIOS optimal defaults, press the tact switch for at
least 3 seconds, then release.
Function
Normal (Default)
Restore BIOS optimal defaults
2.3.3

Auto Power On (SSW1)

If SSW1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SSW1 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Disable auto power on (Default)
Enable auto power on
6
Setting
5-6 close
2-4 close
or
4-6 close
1-2 close
Setting
Release
Press
Setting
1-2 close
2-3 close
Board and Pin Assignment
