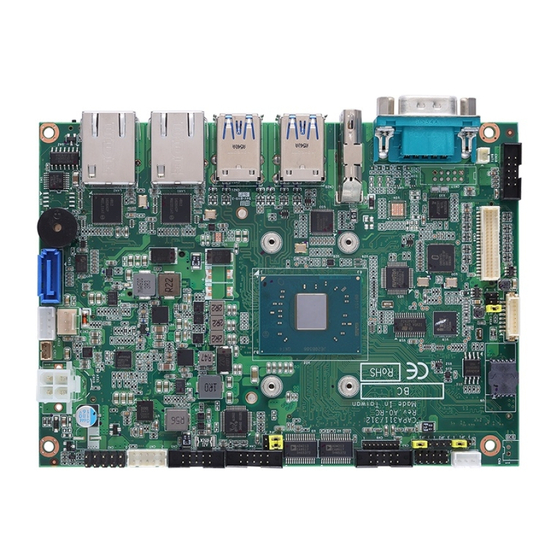

AXIOMTEK CAPA312 Series Quick Installation Manual

Quick Start

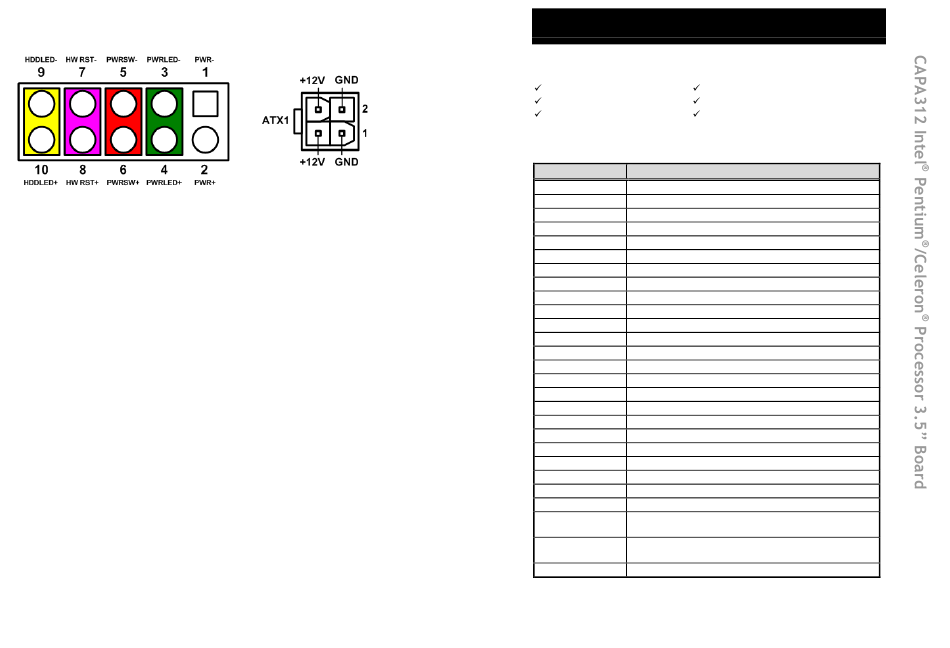

CN2
The basic procedures required to power on CAPA312:
(1). Require power at minimum 1.9A. Check to ensure that power
supply is OFF before connecting to CAPA312 and that all
necessary peripheral devices are plugged properly.
(2). Make sure all of the jumpers and switch are at default settings;
especially SSW 1 (1-2 close).
(3). Firmly install DDR3L memory module into connector SDIMM1
until fully seated.
(4). Firmly insert power to ATX1.
(5). Install a momentary on/off button/switch onto CN2, pin 5 and 6.
(6). Turn on the power supply.
(7). Press the on/off button/switch to power on CAPA312.
4 9418E312000E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 May 2017
Printed in Taiwan
CAPA312 Series Quick Installation Guide

Checklist

CPU board x1 USB cable x1
Product information CD x1
Audio cable x1
Quick installation guide x1 COM cable x1

Connectors

Connector Description
CN1 SMBus Connector
CN2 Front Panel Connector
CN3 COM4 Wafer Connector
CN4 COM3 Wafer Connector
CN5 Audio Connector
CN6 Digital I/O Connector
CN7 USB 2.0 Wafer Port 4 and 5
CN11 I2C Connector
CN12 SATA Power Connector
CN13 Fan Connector
CN14 Inverter Connector
CN15 SATA Connector
CN16 LVDS Connector
CN17 (Optional) COM1 Wafer Connector
CN18 COM2 Wafer Connector
CN19 HDMI Connector
CN20 USB 3.0 Port 0 and 1
CN21 USB 3.0 Port 2 and 3
CN22 COM1 D-Sub Connector
CN23 (Optional) VGA Connector
ATX1 ATX Power Connector
LAN1~LAN2 Ethernet Port 1 and 2
SCN1 Full-size PCI-Express Mini Card Connector
SCN2 SIM Card Socket
Full-size PCI-Express Mini Card or mSATA
SCN3
Connector
SCN4
eDP Connector
(Optional)
SDIMM1 DDR3L SO-DIMM Connector
