AXIOMTEK CAPA84R User Manual

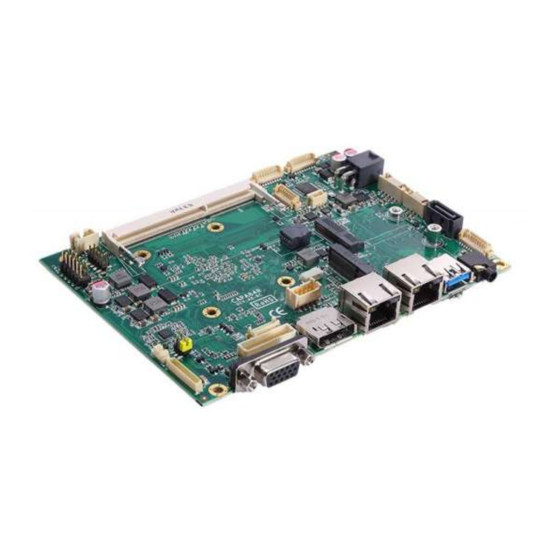

Intel celeron j1900/j1800 processor 3.5" board
Hide thumbs Also See for CAPA84R:
Table of Contents

Advertisement

Quick Links

Download this manual
CAPA84R
®
®
Intel
Celeron
J1900/J1800
Processor 3.5" Board
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAPA84R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK CAPA84R

Summary of Contents for AXIOMTEK CAPA84R

  • Page 1 CAPA84R ® ® Intel Celeron J1900/J1800 Processor 3.5” Board User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Esd Precautions

    It discharges static electricity from your body.  Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® ® Intel and Celeron are trademarks of Intel Corporation.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii ESD Precautions ................... iii Chapter 1 Introduction ..........1 Features ....................2 Specifications ..................2 Utilities Supported ................3 Chapter 2 Board and Pin Assignments ....5 Board Dimensions and Fixing Holes ..........5 Board Layout ..................
  • Page 5 Chapter 3 Hardware Description ......25 Microprocessors ................25 BIOS ....................25 System Memory ................. 25 I/O Port Address Map ................ 26 Interrupt Controller (IRQ) Map ............27 Memory Map ..................29 Chapter 4 AMI BIOS Setup Utility ......31 Starting ....................
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

    I/O functions for interactive applications and various embedded computing solutions. The CAPA84R has one 204-pin unbuffered SO-DIMM socket for single channel DDR3L 1333MHz memory with maximum capacity up to 8GB. There are three Gigabit/Fast Ethernet ports, one SATA port with transfer rate up to 3Gb/s, one USB 3.0 super speed compliant, two...

  • Page 8: Features

    CAPA84R Capa Board Features ® ®  Intel Celeron quad core J1900 (2GHz) and dual core J1800 (2.41GHz)  1 DDR3L SO-DIMM supports up to 8 GB memory capacity  1 USB 3.0 port  2 USB 2.0 ports ...

  • Page 9: Utilities Supported

    CAPA84R Capa Board  Watchdog Timer  1~255 seconds or minutes; up to 255 levels.  Ethernet ®  Three LAN ports with Intel i211AT support 1000/100/10Mbps Gigabit/Fast Ethernet with Wake-on-LAN and PXE Boot ROM.  Audio  HD audio with Realtek ALC662.
  • Page 10 CAPA84R Capa Board This page is intentionally left blank. Introduction...

  • Page 11: Board And Pin Assignments

    CAPA84R Capa Board Chapter 2 Board and Pin Assignments Board Dimensions and Fixing Holes Top View Board and Pin Assignments...
  • Page 12 CAPA84R Capa Board Bottom View Side View Board and Pin Assignments...

  • Page 13: Board Layout

    CAPA84R Capa Board Board Layout Top View Side View Board and Pin Assignments...
  • Page 14 CAPA84R Capa Board Bottom View Board and Pin Assignments...

  • Page 15: Jumper And Switch Settings

    And remove jumper clip from 2 jumper pins to open. Below illustration shows how to set up jumper. Properly configure jumper and switch settings on the CAPA84R to meet your application purpose. Below you can find a summary table of jumpers, switch and onboard default settings.

  • Page 16: Lvds Voltage Selection (Jp1)

    CAPA84R Capa Board 2.3.1 LVDS Voltage Selection (JP1) This is a 2x3-pin (pitch=2.0mm) jumper. The board supports voltage selection for flat panel displays. Use JP1 to set LVDS connector (CN18) pin 1~6 VCCM to +3.3V, +5V or +12V voltage level. To prevent hardware damage, before connecting please make sure that input voltage of the flat panel is correct.

  • Page 17: Connectors

    CAPA84R Capa Board Connectors Signals go to other parts of the system through connectors. Loose or improper connection might cause problems, please make sure all connectors are properly and firmly connected. Here is a summary table of connectors on the hardware.

  • Page 18: Smbus Connector (Cn1)

    CAPA84R Capa Board 2.4.1 SMBus Connector (CN1) This is a 3-pin (pitch=2.0mm) wafer connector which is compliant with JST B4B-PH-SM3-TB for SMbus interface. The SMBus (System Management Bus) is a simple bus for the purpose of lightweight communication. Signal DATA 2.4.2...

  • Page 19: Front Panel Connector (Cn3)

    CAPA84R Capa Board 2.4.3 Front Panel Connector (CN3) This is a 2x5-pin header (pitch=2.0mm) for front panel interface. Signal Signal EXT SPK- EXT SPK+ PWR_PSON PWRLED- PWRLED+ PWRSW- PWRSW+ HW RST- HW RST+ HDDLED- HDDLED+ External Speaker Pin 1(-) and 2(+) connect the case-mounted speaker unit or internal buzzer cable.

  • Page 20: Fan Connector (Cn7)

    CAPA84R Capa Board 2.4.5 Fan Connector (CN7) This is a 3-pin (pitch=1.5mm) connector. A fan interface is available through CN7. You can find fan speed within BIOS Setup Utility if fan is installed. For further information, see BIOS Setup Utility: Advanced\Hardware Monitor\PC Health Status in section 4.4.

  • Page 21: 2230 Key E Connector (Cn9)

    CAPA84R Capa Board 2.4.7 M.2 2230 Key E Connector (CN9) The CN9 is a M.2 2230 Key E connector. It is suggested to install the M.2 wireless module via PCIex1 with 22mm width and 30mm length. Signal Signal +3.3V_SBY +3.3V_SBY...

  • Page 22: Sata Power Connector (Cn10)

    CAPA84R Capa Board 2.4.8 SATA Power Connector (CN10) This is a 4-pin (pitch=2mm) wafer connector, which is compliant with JST B4B-PH-K-S, for SATA power interface. Signal +12V 2.4.9 SIM Card Wafer Connector (CN11) The CN11 is a 6-pin (pitch=1.0mm) wafer connector, which is compliant with JST B6B-PH-K-S, for SIM Card interface.

  • Page 23: 2242/3042 Key B Connector (Cn13)

    CAPA84R Capa Board 2.4.11 M.2 2242/3042 Key B Connector (CN13) The CN13 is a M.2 Key B connector. It is suggested to install the M.2 storage module via SATA with 22mm width and 42mm length or the M.2 cellular module via USB 2.0 with 30mm width and 42mm length.

  • Page 24: Usb 2.0 Wafer Connector (Cn14)

    CAPA84R Capa Board 2.4.12 USB 2.0 Wafer Connector (CN14) This is a 2x5-pin (pitch=2mm) wafer connector, which is compliant with Hirose DF11-xdp-2dsa, for installing versatile USB 2.0 compliant interface peripherals. Signal Signal USB VCC USB VCC (+5V_SBY) (+5V_SBY) USB #1_D-...

  • Page 25: Ethernet Wafer Connector (Cn17)

    CAPA84R Capa Board 2.4.15 Ethernet Wafer Connector (CN17) This is a JST BM16B-SRSS-TB 15-pin (pitch=1.0mm) wafer connector for Ethernet port 3 interface. Signal LAN_1000_LED LAN_100_LED MDI3- MDI3+ MDI1- MDI2- MDI2+ MDI1+ MDI0- MDI0+ LAN_VDD33 LAN_LINK_ACT Board and Pin Assignments...

  • Page 26: Lvds Connector (Cn18)

    CAPA84R Capa Board 2.4.16 LVDS Connector (CN18) This board has one 2x20-pin (pitch=1mm) connector for LVDS LCD interface. It is strongly recommended to use the matching JST SHDR-40VS-B connector for LVDS interface. Pin 1~6 VCCM can be set to +3.3V, +5V or +12V by setting JP1 (see section 2.3.1).
  • Page 27 CAPA84R Capa Board 24-bit single channel 18-bit dual channel Pin Signal Pin Signal Pin Signal Pin Signal VCCM VCCM VCCM VCCM VCCM VCCM VCCM VCCM VCCM VCCM VCCM VCCM 10 GND 10 GND 11 N.C 12 N.C 11 N.C 12 Channel B D0- 13 N.C...

  • Page 28: Usb 3.0/2.0 Type A Connector (Cn19)

    CAPA84R Capa Board 2.4.17 USB 3.0/2.0 Type A Connector (CN19) The Universal Serial Bus (compliant with USB 3.0 (5Gb/s)) type A connector on the rear I/O is for installing USB peripherals such as keyboard, mouse, scanner, etc. Signal USB_VCC (+5V)

  • Page 29: Ethernet Ports (Cn21 And Cn23)

    CAPA84R Capa Board 2.4.19 Ethernet Ports (CN21 and CN23) The board has two RJ-45 Ethernet connectors, CN21 (for LAN2) and CN23 (for LAN1). Connection can be established by plugging one end of the Ethernet cable into this connector and the other end (phone jack) to a 1000/100/10-Base-T hub.

  • Page 30: Com Wafer Connectors (Com1 And Com2)

    CAPA84R Capa Board 2.4.22 COM Wafer Connectors (COM1 and COM2) These are 9-pin (pitch=1.25mm) connectors which are compliant with Molex 53047-0910. The pin assignments of RS-232/RS-422/RS-485 are listed in table below. If you need COM1 port to support RS-422 or RS-485, please refer to BIOS setting in section 4.4.

  • Page 31: Chapter 3 Hardware Description

    Make sure all correct settings are arranged for the installed microprocessor to prevent the CPU from damages. BIOS The CAPA84R uses AMI Plug and Play BIOS with a single 16Mbit SPI Flash. System Memory The CAPA84R supports one 204-pin DDR3L SO-DIMM socket for maximum memory capacity up to 8GB DDR3L SDRAMs.

  • Page 32: I/O Port Address Map

    CAPA84R Capa Board I/O Port Address Map Hardware Description...

  • Page 33: Interrupt Controller (Irq) Map

    CAPA84R Capa Board Interrupt Controller (IRQ) Map The interrupt controller (IRQ) mapping list is shown as follows: Hardware Description...
  • Page 34 CAPA84R Capa Board Hardware Description...

  • Page 35: Memory Map

    CAPA84R Capa Board Memory Map The memory mapping list is shown as follows: Hardware Description...
  • Page 36 CAPA84R Capa Board This page is intentionally left blank. Hardware Description...

  • Page 37: Ami Bios Setup Utility

    CAPA84R Capa Board Chapter 4 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off. This chapter provides users with detailed description about how to set up basic system configuration through the AMI BIOS setup utility.
  • Page 38 CAPA84R Capa Board Hot Keys Description  Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or  Up/Down sub-screen. The Plus and Minus <Arrow> keys allow you to change the field value of a +...

  • Page 39: Main Menu

    CAPA84R Capa Board Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 40: Advanced Menu

    CAPA84R Capa Board Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 41 CAPA84R Capa Board  ACPI Settings ACPI Sleep State Select the ACPI (Advanced Configuration and Power Interface) sleep state. Configuration options are Suspend Disabled and S3 (Suspend to RAM). The S3 (Suspend to RAM) option selects ACPI sleep state the system will enter when suspend button is pressed.
  • Page 42 CAPA84R Capa Board  F81803 Super IO Configuration You can use this screen to select options for serial port configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 43 CAPA84R Capa Board  Serial Port 1 Configuration Serial Port Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for interrupt request address is IRQ4. COM Port Type Use this item to set RS-232/422/485 communication mode.
  • Page 44 CAPA84R Capa Board  Serial Port 2 Configuration Serial Port Enable or disable serial port 2. The optimal setting for base I/O address is 2F8h and for interrupt request address is IRQ3. AMI BIOS Setup Utility...
  • Page 45 CAPA84R Capa Board  Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, fan speed in RPM and system voltages (VBAT and +5V). AMI BIOS Setup Utility...
  • Page 46 CAPA84R Capa Board  Onboard DIO Configuration You can use this screen to select options for the 8-bit Digital I/O Configuration. A description of the selected item appears on the right side of the screen. For items marked with “”, please press <Enter> for more options.
  • Page 47 CAPA84R Capa Board If DIO Modification is disabled, you are not allowed to change input/output setting. The DIO status sub screen is as follows: If DIO Modification is enabled, you can load manufacture default and access to the DIO status sub screen to change input/output setting, see image below.
  • Page 48 CAPA84R Capa Board  CPU Configuration This screen shows the CPU Configuration. Socket 0 CPU Information Displays CPU information Intel Virtualization Technology Enable or disable Intel Virtualization Technology. When enabled, a VMM (Virtual Machine Mode) can utilize the additional hardware capabilities. It allows a platform to run multiple operating systems and applications independently, hence enabling a computer system to work as several virtual systems.
  • Page 49 CAPA84R Capa Board  IDE Configuration In IDE Configuration menu, you can see the current installed hardware in SATA ports. During system boot up, BIOS automatically detects the presence of SATA devices. Serial-ATA (SATA) Enable or disable Chipset SATA Controller.
  • Page 50 CAPA84R Capa Board  Miscellaneous Configuration OS Selection ® Use this option to do OS selection. The default is Windows ® If the Window 7 is needed to be installed via USB 3.0 port (CN19, see section 2.4.17), it is ®...
  • Page 51 CAPA84R Capa Board  USB Configuration USB Devices Display all detected USB devices. Legacy USB Support Enable legacy support for USB devices. Auto option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI applications.
  • Page 52 CAPA84R Capa Board  Utility Configuration BIOS Flash Utility BIOS flash utility configuration. For more detailed information, please refer to Appendix C. AMI BIOS Setup Utility...

  • Page 53: Chipset Menu

    CAPA84R Capa Board Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► North Bridge ►...
  • Page 54 CAPA84R Capa Board  North Bridge This screen allows users to configure parameters of North Bridge chipset. LVDS Panel Type Select the appropriate LVDS panel resolution, see image below. Memory Information Display system memory information. AMI BIOS Setup Utility...
  • Page 55 CAPA84R Capa Board  South Bridge This screen shows the information of South Bridge chipset. A description of the selected item appears on the right side of the screen. For items marked with “”, please press <Enter> for more options.
  • Page 56 CAPA84R Capa Board Audio Controller Control detection of HD Audio device. Disabled: Azalia will be unconditionally disabled. Enabled: Azalia will be unconditionally enabled. AMI BIOS Setup Utility...

  • Page 57: Security Menu

    CAPA84R Capa Board Security Menu The Security menu allows users to change the security settings for the system.  Administrator Password. Set administrator password.  User Password Set user password.  HDD Security Configuration HDD Security Configuration for selected drive.

  • Page 58: Boot Menu

    CAPA84R Capa Board Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.  Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock.

  • Page 59: Save & Exit Menu

    CAPA84R Capa Board Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 60 CAPA84R Capa Board  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes.  Restore Defaults It automatically sets all Setup options to a complete set of default settings when you select this option.

  • Page 61: Appendix A Watchdog Timer

    CAPA84R Capa Board Appendix A Watchdog Timer A.1 About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by operator for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.

  • Page 62: A.3 Sample Program

    CAPA84R Capa Board A.3 Sample Program Assembly sample code : ;Enable WDT: dx,2Eh al,87 ;Un-lock super I/O dx,al dx,al ;Select Logic device: dx,2Eh al,07h dx,al dx,2Fh al,07h dx,al ;Enable WDT base address: dx,2Eh al,30h dx,al dx,2Fh al,01h dx,al ;Activate WDT:...
  • Page 63 CAPA84R Capa Board If N=79h, the time base is set to minute. M = time value 00: Time-out disable 01: Time-out occurs after 1 minute 02: Time-out occurs after 2 minutes 03: Time-out occurs after 3 minutes FFh: Time-out occurs after 255 minutes...
  • Page 64 CAPA84R Capa Board This page is intentionally left blank. Watchdog Timer...

  • Page 65: Appendix B Digital I/O

    CAPA84R Capa Board Appendix B Digital I/O B.1 About Digital I/O The onboard GPIO or digital I/O has 8 bits. Each bit can be set to function as input or output by software programming. In default, all pins are pulled high with +5V level (according to main power).
  • Page 66 CAPA84R Capa Board Register 0: Input port register. This register is a read-only port. It reflects the incoming logic levels of the pins, regardless of whether the pin is defined as an input or an output by Register 3. Writes to this register have no effect.
  • Page 67 CAPA84R Capa Board Register 3: Configuration register. This register configures the directions of the I/O pins. If a bit in this register is set, the corresponding port pin is enabled as an input with high-impedance output driver. If a bit in this register is cleared, the corresponding port pin is enabled as an output.
  • Page 68 CAPA84R Capa Board This page is intentionally left blank. Digital I/O...

  • Page 69: Appendix Cbios Flash Utility

    Please read and follow the instructions below carefully. In your USB flash drive, create a new folder and name it “Axiomtek”, see figure below. Copy BIOS ROM file (e.g. CAPA84R.005) to “Axiomtek” folder.
  • Page 70 Select the USB drive containing BIOS ROM file you want to update using the <> or <> key. Then press <Enter> to get into “Axiomtek” folder. Now you can see the BIOS ROM file on the screen, press <Enter> to select.
  • Page 71 CAPA84R Capa Board Please wait while BIOS completes the entire flash update process: erase data, write new data and verify data. 10. When you see the following figure, press <Enter> to finish the update process. After that the system will shut down and restart immediately.
