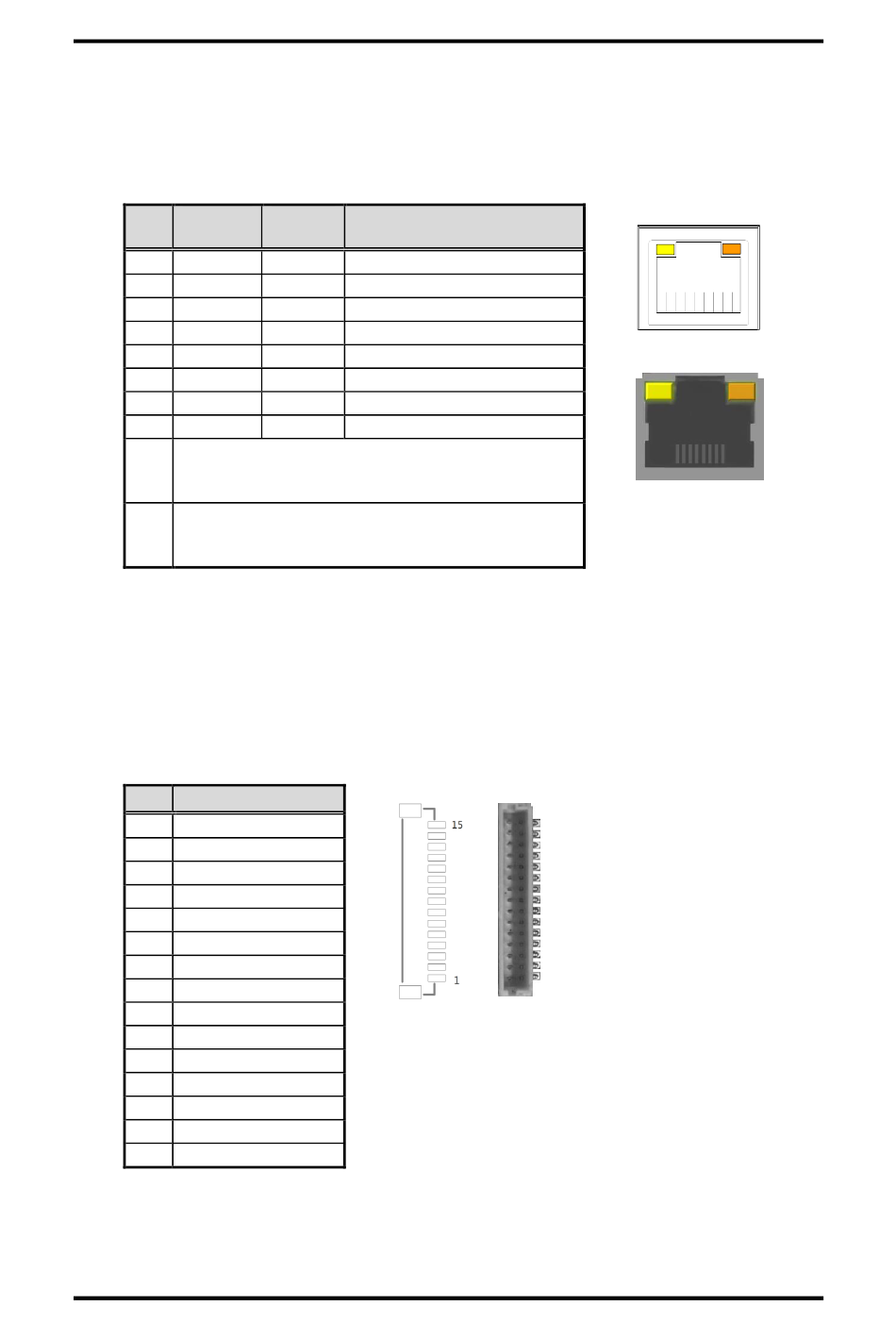

Ethernet Ports (CN7 and CN8)

The board has two RJ-45 Ethernet connectors; CN7 for LAN1 with Intel
CN8 for LAN2 with Intel
one end of the Ethernet cable into this connector and the other end (phone jack) to a
1000/100/10-Base-T hub.
1000
Pin
Base-T
L1 BI_DA+
L2 BI_DA-
L3 BI_DB+
L4 BI_DC+
L5 BI_DC-
L6 BI_DB-
L7 BI_DD+
L8 BI_DD-
Active Link LED (Yellow)
A Off: No link
Blinking: Data activity detected
Speed LED
B 1000: Orange
100/10: Green/OFF
2.5.8

Ethernet Wafer Connector (CN9)

This is a wafer connector fully compliant with JST BM15B-SRSS-TB 15-pin
(pitch=1.0mm) for LAN3 Ethernet port interface.
It is suggested to connect AX93287 IO board to have RJ-45 connector for Ethernet
connection.
Pin Signal
1 GND
2 LAN_LINK_ACT
3 LAN_VDD33
4 GND
5 MDI0+
6 MDI0-
7 MDI1+
8 MDI2+
9 MDI2-
10 MDI1-
11 MDI3+
12 MDI3-
13 GND
14 LAN_100_LED
15 LAN_1000_LED
18
Processor Family 3.5" Board
®
i211AT. Ethernet connection can be established by plugging
100/10
Description
Base-T
TX+ Bidirectional or Transmit Data+
TX- Bidirectional or Transmit Data-
RX+ Bidirectional or Receive Data+
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
RX- Bidirectional or Receive Data-
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
®
i219LM and
A B
L8 L7 L6 L5 L4 L3 L2 L1
A B
Board and Pin Assignments
