PICO52R Pico-ITX Board
2.4.1

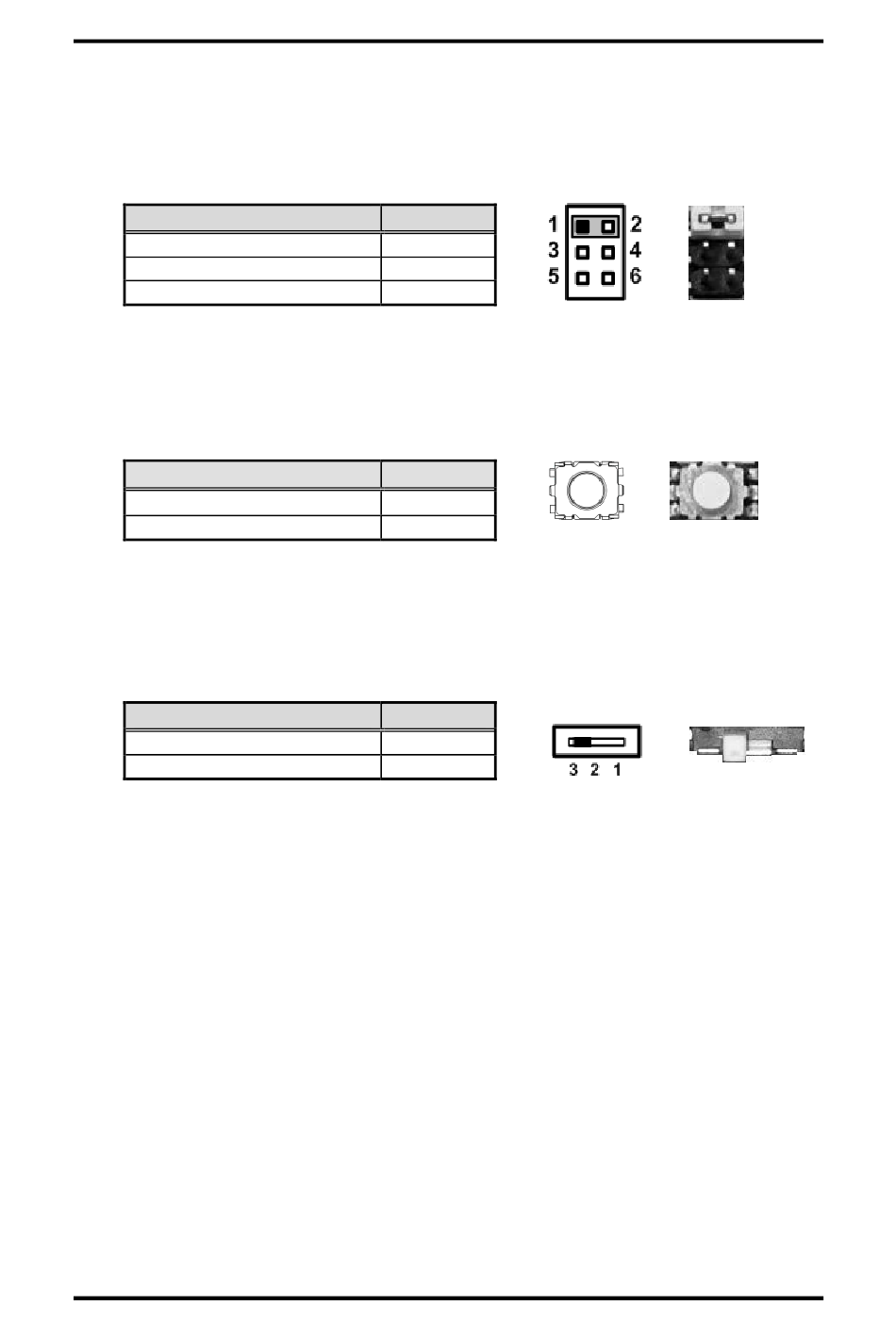

LVDS +3.3V/+5V/+12V Voltage Selection (JP1)

The board supports voltage selection for flat panel displays. Use these jumpers to set
LVDS connector (CN4, See section 2.5.3) pin 1~6 VCCM to +3.3V, +5V or +12V. To
prevent hardware damage, before connecting please make sure that the input voltage of
flat panel is correct.
Function
+3.3V level (Default)
+5V level
+12V level
2.4.2

Restore BIOS Optimal Defaults (SW1)

Use SW1 to clear CMOS. Press the tact switch for at least 3 second to restore BIOS
optimal defaults.
Function
Normal (Default)
Restore BIOS optimal defaults
2.4.3

Auto Power On (SSW1)

If SSW1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SSW1 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Disable auto power on
Enable auto power on (Default)
12
Setting
1-2 close
2-4 close
5-6 close
Setting
Release
Press
Setting
1-2 close
2-3 close
Board and Pin Assignments
