CAPA520 Intel Core Processor Family 3.5" Board

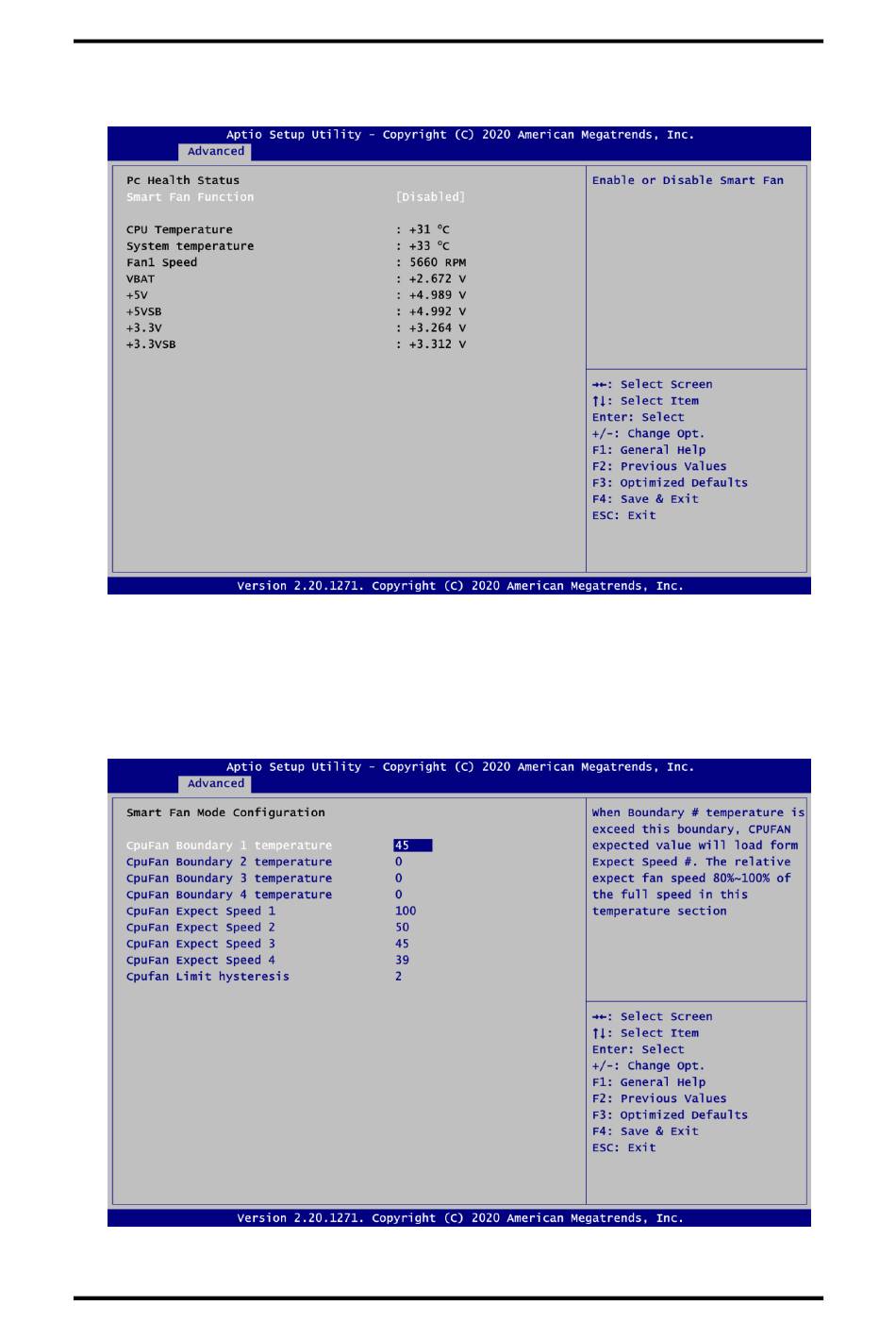

 Hardware Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, fan speed in RPM and system
voltages (+3.3VSB/+5VSB and +3.3V/+5V).
Smart Fan Function
Enable or disable Smart Fan control function. Once enabled, you will be able to go further
for Smart Fan Mode Configuration, see image below.
AMI BIOS Setup Utility 41
