CAPA520 Intel Core
2.5.12

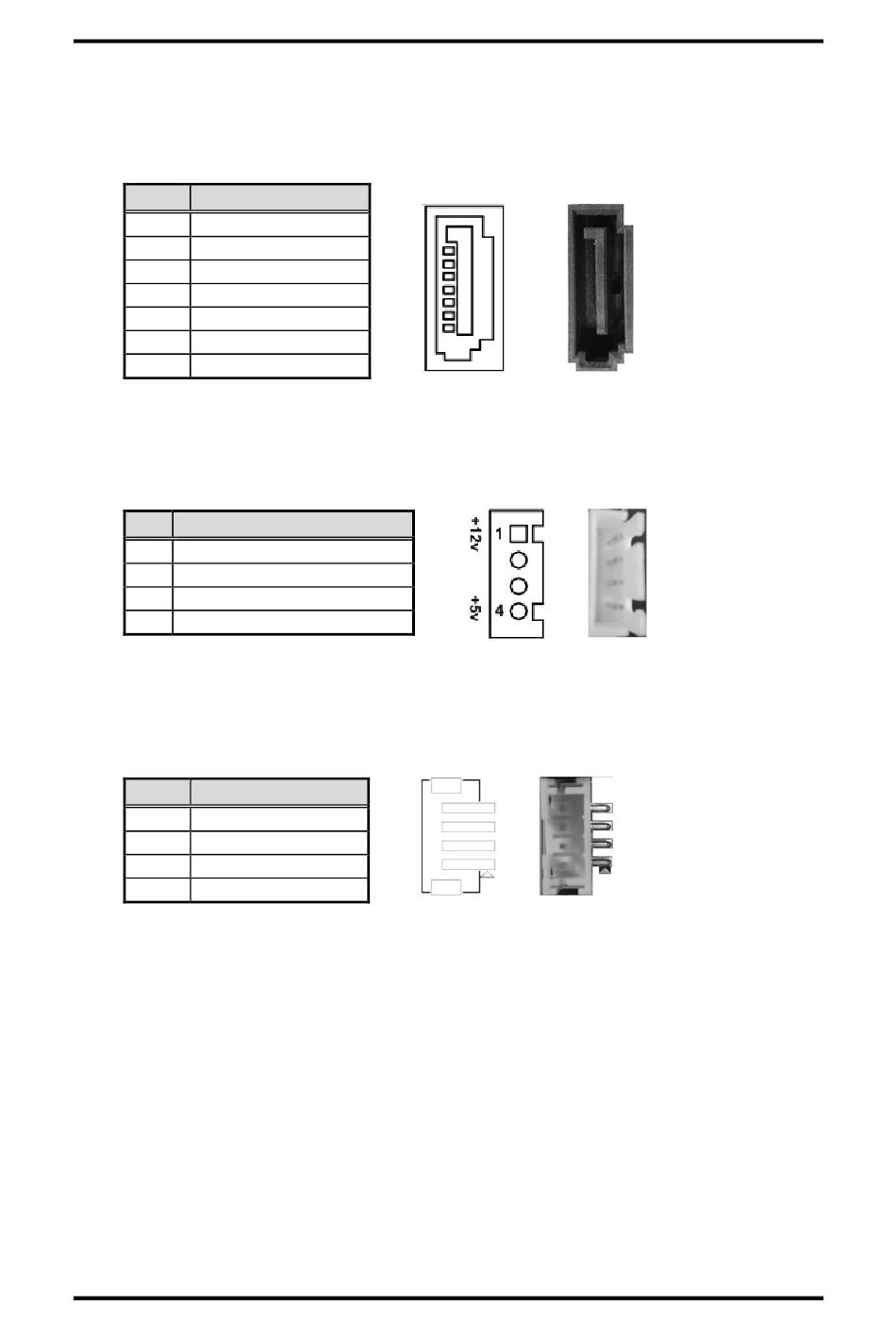

SATA Connectors (CN13 and CN14)

These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices
such as hard disk drive(s).
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
2.5.13

SATA Power Connector (CN15)

The CN15 is a 1x4-pin (pitch=2.0mm) wafer and fully compliant with JST B4B-PH-K-S.
Pin Signal
1 +12V level
2 GND
3 GND
4 +5V level
2.5.14

SATA Power Connector (CN16)

The CN16 is a 1x4-pin (pitch=2.0mm) wafer connector fully compliant with JST
B4B-PH-K-S.
Pin Signal
1 +12V level
2 GND
3 GND
4 +5V level
20
Processor Family 3.5" Board
7
1
4
1
Board and Pin Assignments
