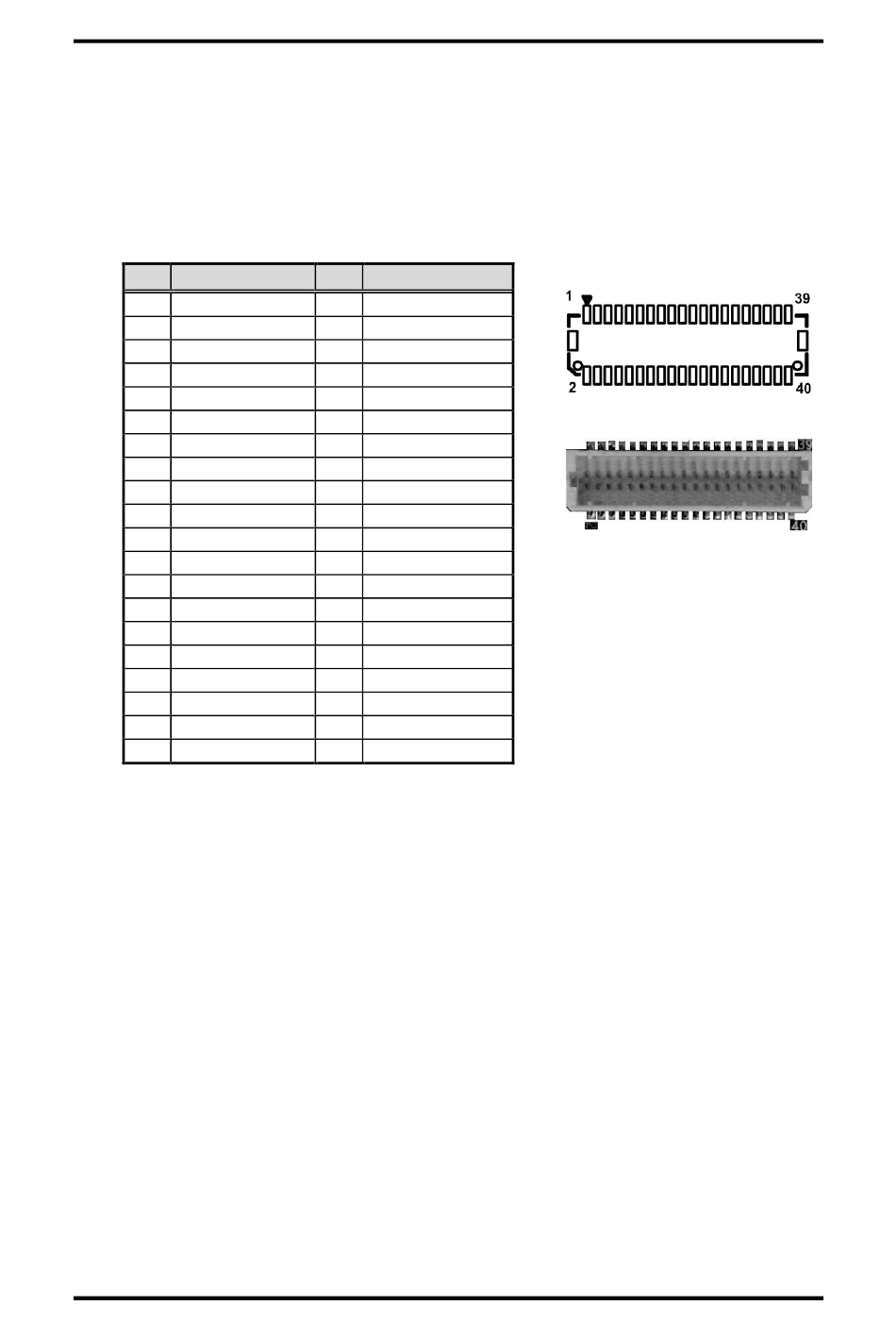

LVDS Connector (CN6)

This board has one 2x20-pin (pitch=1.0mm) connector for LVDS LCD. It is strongly
recommended to use the matching connector, JST SHDR-40VS-B, for LVDS interface.
Pin 1~6 VCCM can be set to +3.3V, +5V or +12V using JP1 (see section 2.4.1). Please
note that when making LVDS cable, the pin 2 of JST SHDR-40VS-B connector
should match the pin 1 of CN1.
18-bit single channel
Pin Signal
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 LVDS_HPD
11 N.C
13 N.C
15 GND
17 N.C
19 N.C
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
31 Channel A D1+
33 GND
35 Channel A D2-
37 Channel A D2+
39 GND
16
Processor Family 3.5" Board
Pin Signal
2 VCCM
4 VCCM
6 VCCM
8 N.C
10 GND
12 N.C
14 N.C
16 GND
18 N.C
20 N.C
22 GND
24 N.C
26 N.C
28 GND
30 N.C
32 N.C
34 GND
36 Channel A CLK-
38 Channel A CLK+
40 GND
