2.5.4

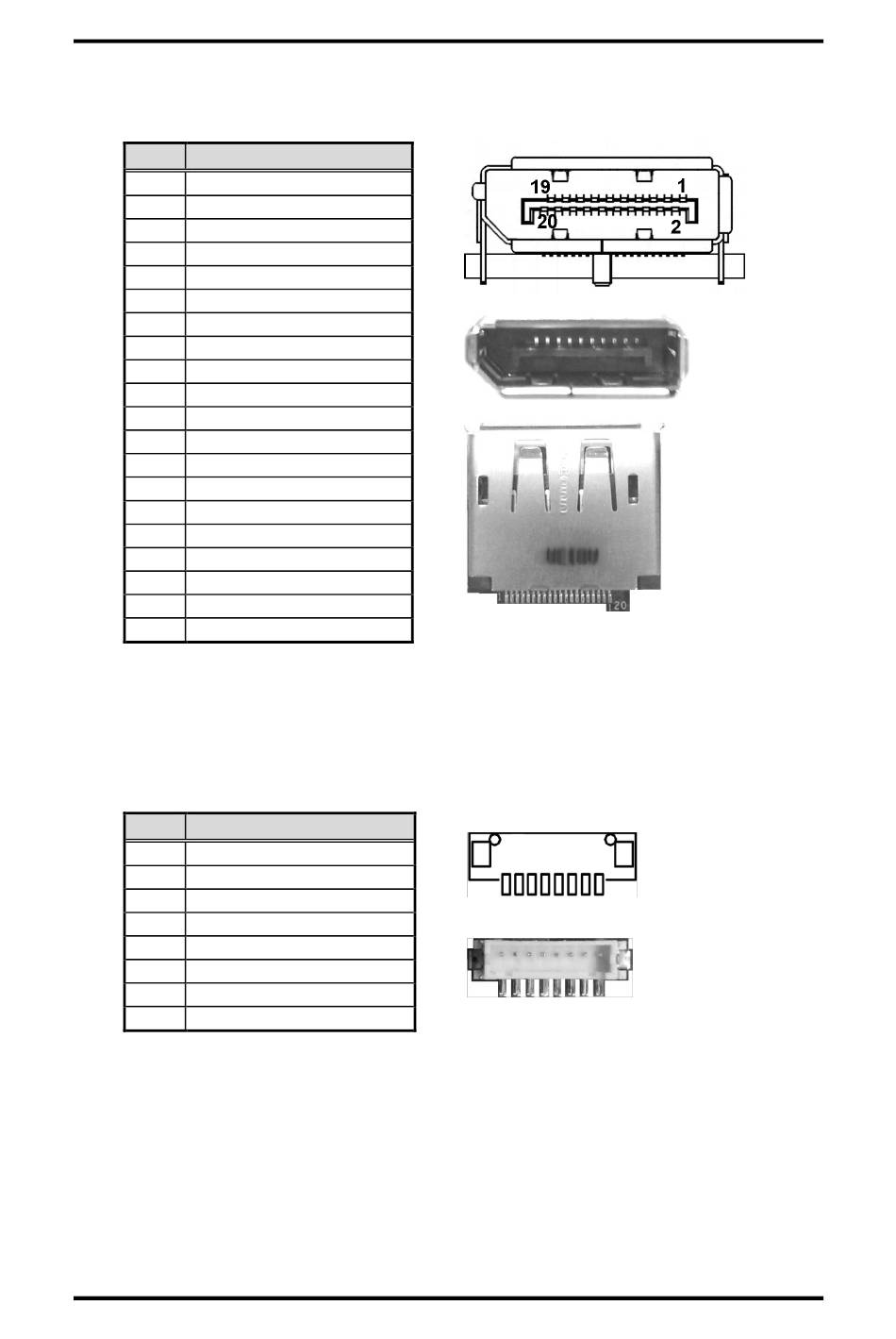

DisplayPort Connector (CN4)

The DisplayPort interface is available through connector CN4.
Pin Signal
1 DPB_LANE0
2 GND
3 DPB_LANE0#
4 DPB_LANE1
5 GND
6 DPB_LANE1#
7 DPB_LANE2
8 GND
9 DPB_LANE2#
10 DPB_LANE3
11 GND
12 DPB_LANE3#
13 Detect Pin
14 GND
15 DPB_AUX
16 GND
17 DPB_AUX#
18 DPB_HPD
19 GND
20 +3.3V
2.5.5

Inverter Connector (CN5)

This is an 8-pin (pitch=1.25mm) connector fully compliant with Hirose DF13-8P-1.25V
for inverter. We strongly recommend you to use the matching connector,
DF13-8S-1.25C, to avoid malfunction.
Pin Signal
1 VBL1 (+12V level)
2 VBL1 (+12V level)
3 VBL2 (+5V level)
4 VBL_ENABLE
5 GND
6 GND
7 GND
8 VBL Brightness Control
Board and Pin Assignments
®
CAPA520 Intel Core
8
TM
Processor Family 3.5" Board
