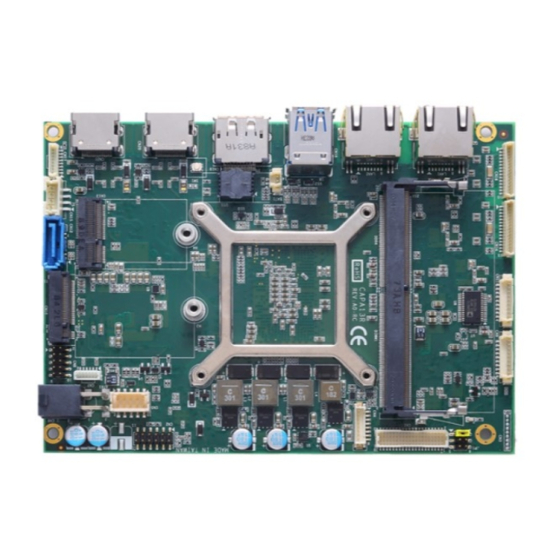

AXIOMTEK CAPA13R Series Quick Installation Manual

Quick Start
The basic procedures required to power on CAPA13R:
(1). Require power at minimum 2.68A. Check to ensure that power
supply is OFF before connecting to CAPA13R and that all
necessary peripheral devices are plugged properly.
(2). Install suitable cooling fan.
(3). Make sure all of the jumper and switch are at default settings;
especially SSW 1 (1-2 close).
(4). Install DDR4 memory module into connector DIMM1 until fully
seated.
(5). Firmly insert power to ATX1.

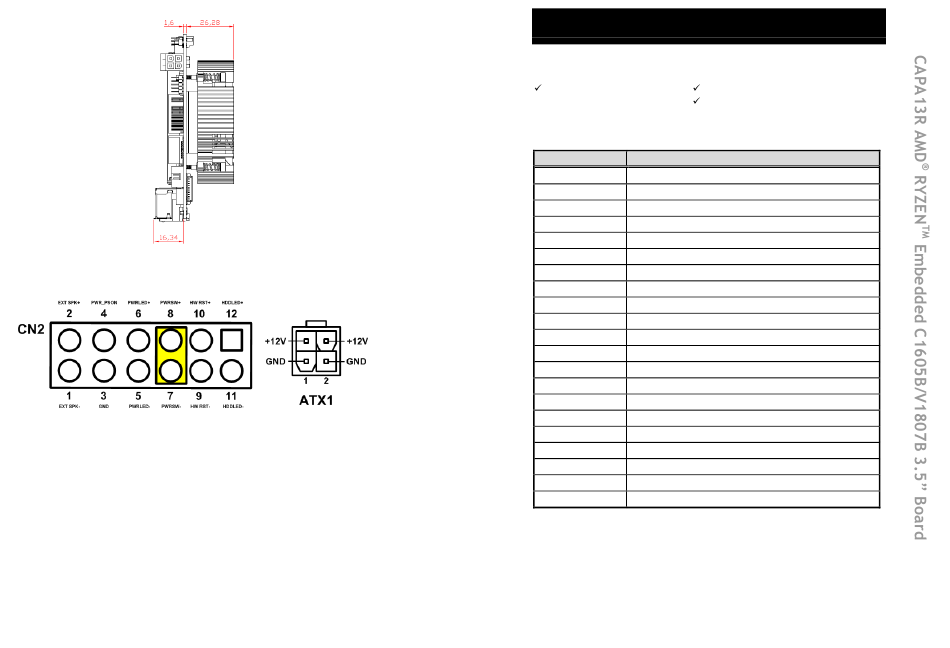

(6). Install a momentary on/off button/switch onto CN2, pin 7 and 8.
(7). Turn on the power supply.
(8). Press the on/off button/switch to power on CAPA13R.
4
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 January 2020
Printed in Taiwan
CAPA13R Series Quick Installation Guide
Checklist
CPU Board x1 Cooling Fan x1 (Optional)
Cooling Fan Cable x1 (Optional)
Connectors
Connector Description
CN1 LVDS Connector
CN2 Front Panel Connector
CN4 Inverter Connector
CN5 USB 2.0 Wafer Connector
CN7 SIM Card Wafer Connector
CN8 Digital I/O Connector
CN9, CN11 COM1 and COM2 Wafer Connectors
CN10 M.2 2242/3042 Key B Connector
CN12 SATA Connector
CN13 M.2 2230 Key E Connector
CN14, CN16 Ethernet Port 4 and Port 3 Wafer Connectors
CN15 SATA Power Connector
CN17 Audio Wafer Connector
CN18 USB 3.1 Port 1 and 2
CN19 DisplayPort Connector
CN20, CN21 HDMI Connectors
CN22, CN23 Ethernet Port 1 and 2
ATX1 ATX Power Connector
SCN1 Fan Connector
SCN2 DC +5V/15W Power Output Connector
DIMM1 DDR4 SO-DIMM Connector
©
